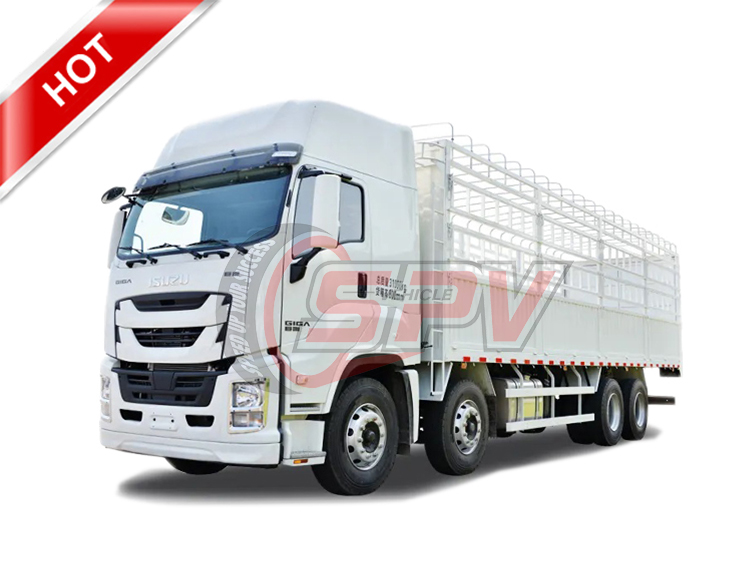

Livestock Carrying Truck ISUZU 8x4
20-25 Tons Fence Cargo Truck
Livestock Carrying Truck ISUZU 8x4
Function:

Livestock carrying truck (also called fence vehicle, fence cargo truck, high fence truck, cangzha truck, new grid transport truck) The fence truck is a special cargo transport vehicle with steel as its main structure. Its carriage adopts a fence design that can be raised and lowered, partially dismantled or fully dismantled, which has loading and unloading flexibility and structural reliability.

This type of cangzha truck generally uses high-strength steel (such as Baosteel 750LD) and aluminum alloy to optimize lightweight performance, and is equipped with air suspension and disc brake systems to improve safety. The curb weight of mainstream models ranges from 5.5 to 6.8 tons, and the total mass standard can reach 40 tons.

The main body of the fence cargo truck is made of corrugated steel plates pressed by fixtures. The railing system supports lifting, semi-disassembly or full-disassembly modes to meet different cargo loading and unloading needs.




Features:

---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High quality temperature preservation van body
---- Excellent Chinese brand temperature controlled unit or imported cooling system
---- Massive, durable, perfect performance
---- Prolonged service life



Specification:



Livestock Carrying Truck ISUZU GIGA 8x4
( 20-25 Tons )
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 12100 * 2550 * 3120 mm
GVW / Kerb Weight 31,000 kg / 11,800 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air conditioner is equipped
Engine Fuel Type Diesel
Engine Brand ISUZU engine
Power 460 Hp (338 KW)
Displacement 15681 ml
Emission Standard Euro VI
Chassis Drive Type 8x4, left hand drive
Transmission 8-speed forward, 2 reverses
No. of Axles 4
Tyre Specification 385/65R22.5 / 315/80R22.5, Radial tyres, super wearable
Tyre Number 12 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Box Capacity 20-25 Tons
Box Internal Dimension 9200 * 2550 * 2000 mm
Box Material corrugated steel
Doors Two rear doors fully openable
Accessories Stainless steel locking and hinge
All other standard accessories: Tool kit, English manual……
Optional ** Box material could be aluminum or stainless steel.
** Cooling system could be imported brand.
** Temperature data logger, temperature alarm.
** Extra side door.
** Slide rail and  meat hook for special use.

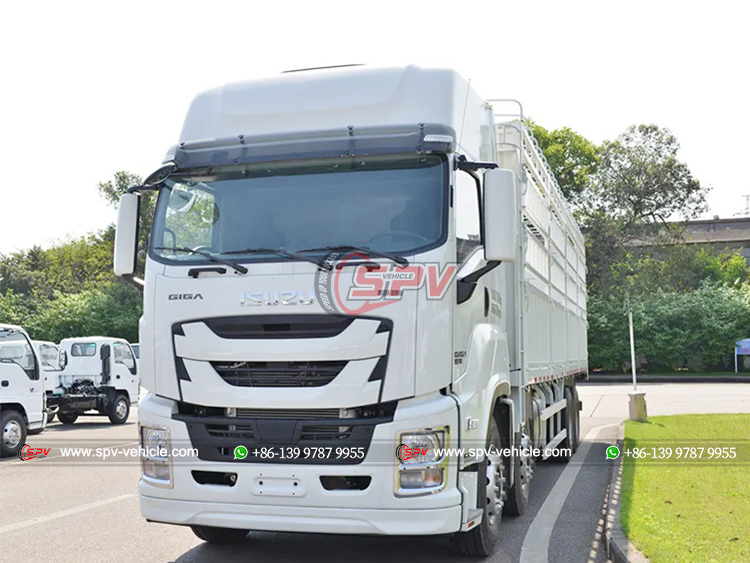

ISUZU GIGA 8x4 Fence Cargo Truck - Front Left Side
ISUZU GIGA 8x4 Fence Cargo Truck - Front Left Side

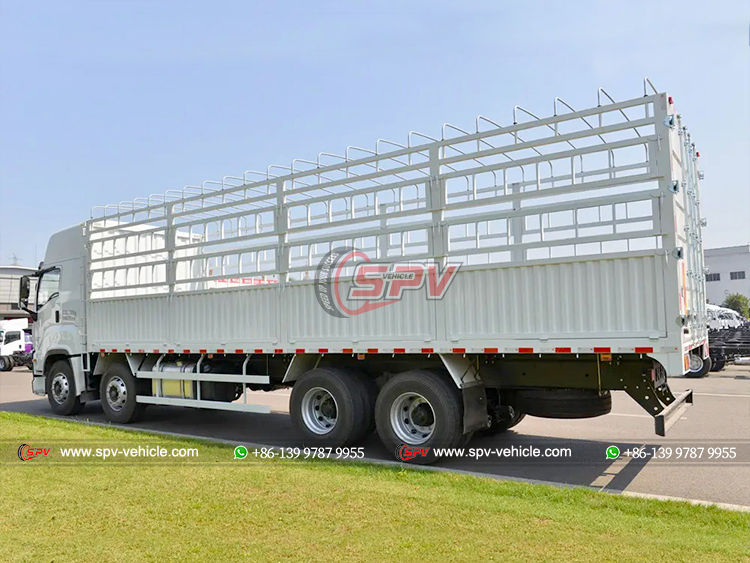

ISUZU Heavy-duty Fence Delivery Truck - Rear Left Side
ISUZU Heavy-duty Fence Delivery Truck - Rear Left Side

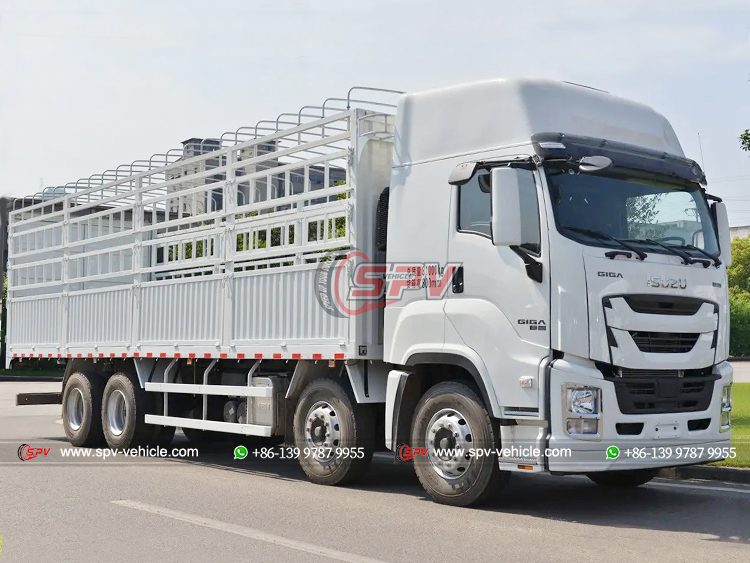

ISUZU 12 Wheels Fence Logistic Truck - Front Right Side

ISUZU 12 Wheels Fence Logistic Truck - Front Right Side

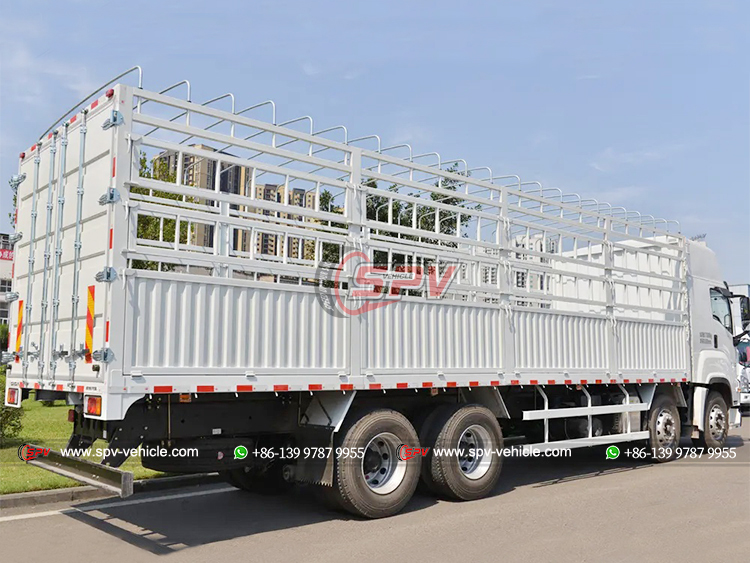

ISUZU GIGA 8x4 Fence Freight Truck - Rear Right Side

ISUZU GIGA 8x4 Fence Freight Truck - Rear Right Side



Similar Keywords:  fence truck for sale, fence freight truck price, cost of cangzha truck, fence cargo truck supplier......
