High Fence Truck ISUZU KV600
1.5-2 Ton Cangzha Truck
High Fence Truck ISUZU KV600
Function:

Fence freight truck (also called fence vehicle, fence cargo truck, high fence truck, cangzha truck, new grid transport truck, ) The fence truck is a special cargo transport vehicle with steel as its main structure. Its carriage adopts a fence design that can be raised and lowered, partially dismantled or fully dismantled, which has loading and unloading flexibility and structural reliability.

This type of cangzha truck generally uses high-strength steel (such as Baosteel 750LD) and aluminum alloy to optimize lightweight performance, and is equipped with air suspension and disc brake systems to improve safety. The curb weight of mainstream models ranges from 5.5 to 6.8 tons, and the total mass standard can reach 40 tons.

The main body of the fence cargo truck is made of corrugated steel plates pressed by fixtures. The railing system supports lifting, semi-disassembly or full-disassembly modes to meet different cargo loading and unloading needs.




Features:

---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High quality temperature preservation van body
---- Excellent Chinese brand temperature controlled unit or imported cooling system
---- Massive, durable, perfect performance
---- Prolonged service life



Specification:



High Fence Truck ISUZU ( 1.5-2 Ton )
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 5990 * 2200 * 3120 mm
GVW / Kerb Weight 4,495 kg / 2,800 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air conditioner is equipped
Engine Fuel Type Diesel
Engine Brand ISUZU engine
Power 120 Hp (88 KW)
Displacement 2499 ml
Emission Standard Euro VI
Chassis Drive Type 4X2, left hand drive or right hand drive
Transmission 5-speed forward, 1 reverse
No. of axle 2
Tyre Specification 7.00R16 LT, Radial tyres, super wearable
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Box Capacity 1.5-2 Ton
Box Internal Dimension 4200 * 2200 * 3120 mm
Box Material corrugated steel
Doors Two rear doors fully openable and one side door
Bottom Floor Aluminium alloy checked plate(anti-slip) with aluminium ventilation stripes
Accessories Stainless steel locking and hinge
All other standard accessories: Tool kit, English manual……
Optional ** Box material could be aluminum or stainless steel.
** Cooling system could be imported brand.
** Temperature data logger, temperature alarm.
** Extra side door.
** Slide rail and  meat hook for special use.

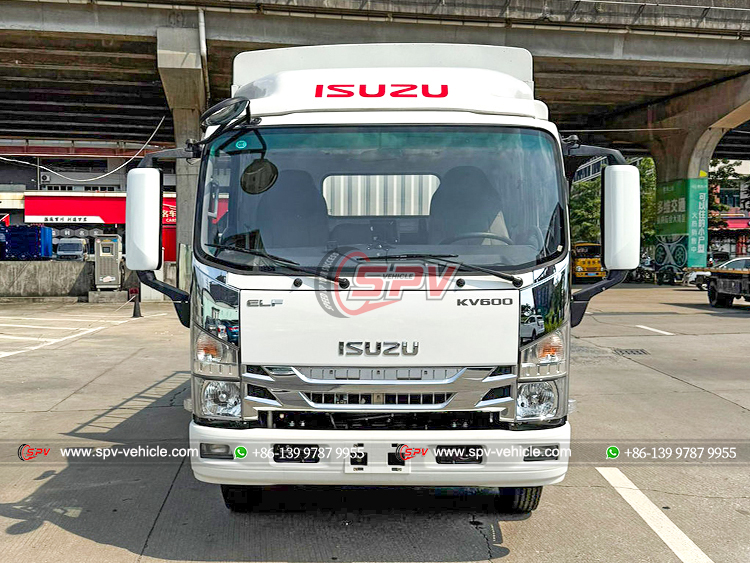

ISUZU KV600 Fence Cargo Truck - Front Side
ISUZU KV600 Fence Cargo Truck - Front Side

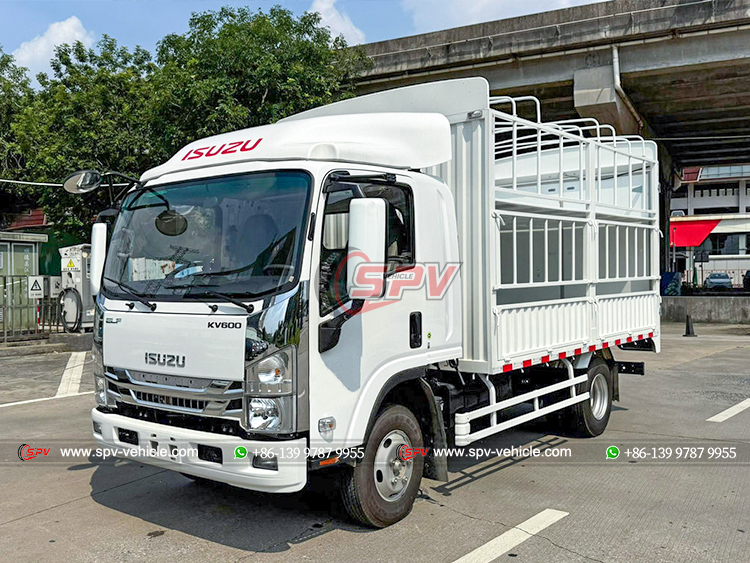

ISUZU KV600 High Fence Truck - Front Left Side
ISUZU KV600 High Fence Truck - Front Left Side

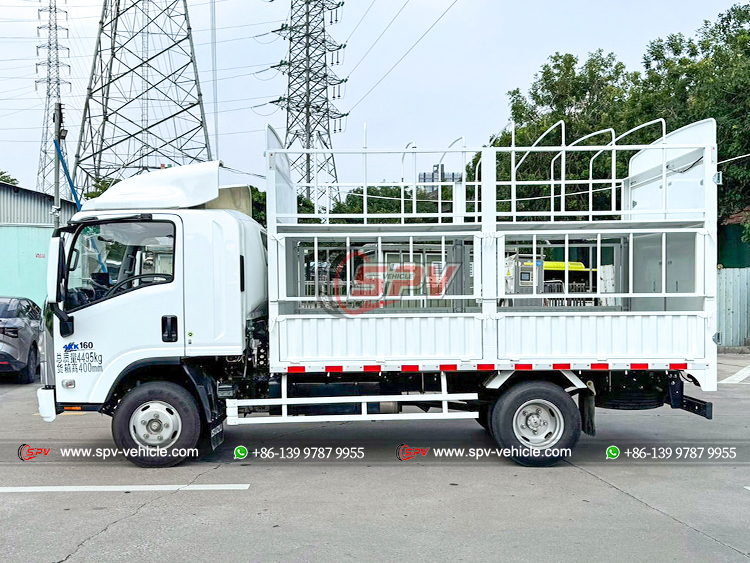

ISUZU ELF Cargo Lorry With Fence - Right Side
ISUZU ELF Cargo Lorry With Fence - Right Side

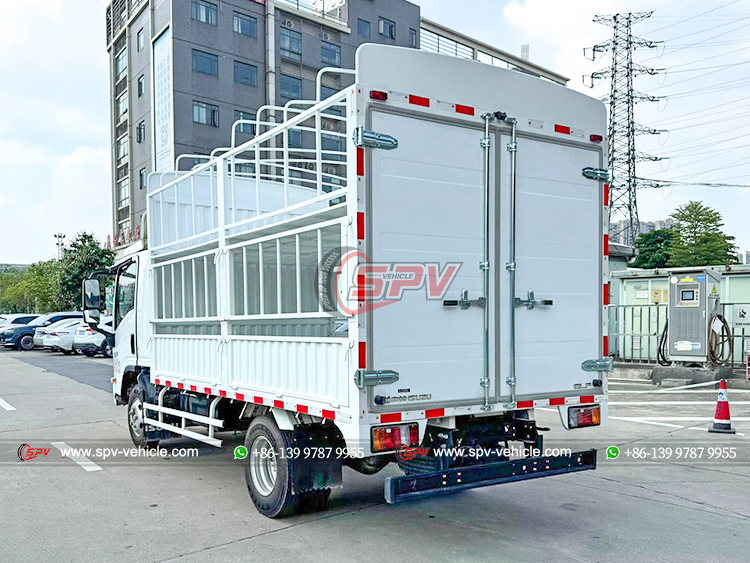

ISUZU Light-duty Cangzha Freight Vehicle - Rear Left Side
ISUZU Light-duty Cangzha Freight Vehicle - Rear Left Side
