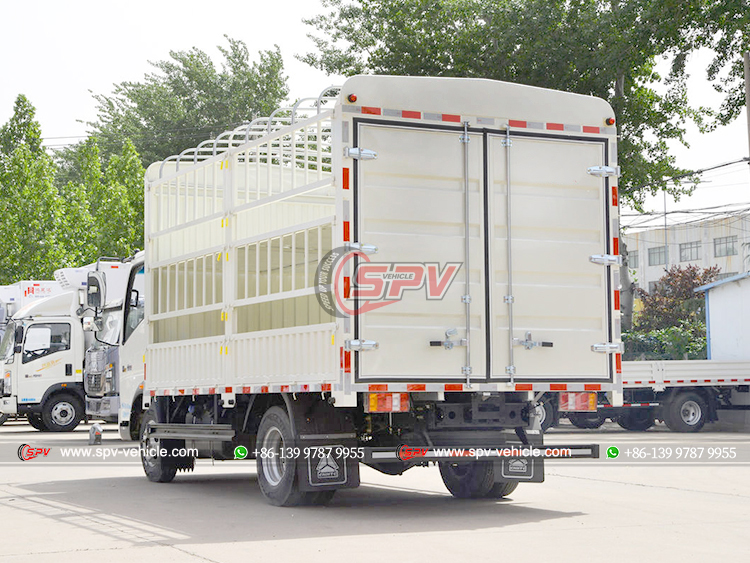

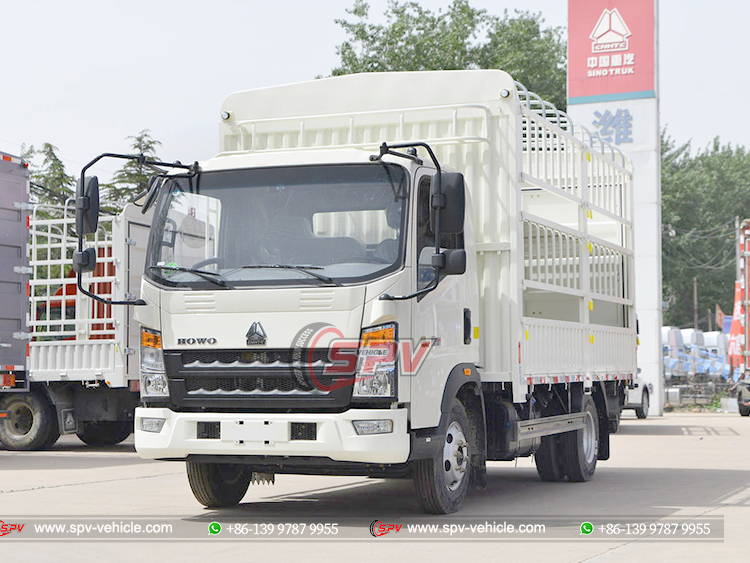

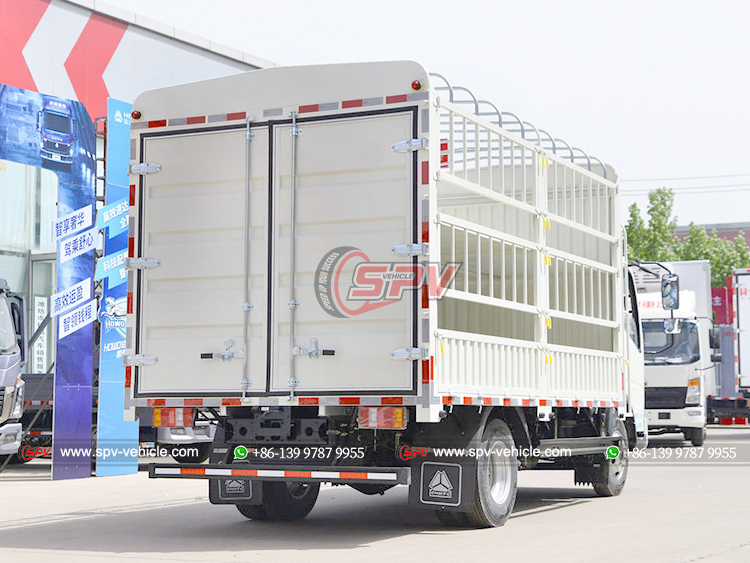

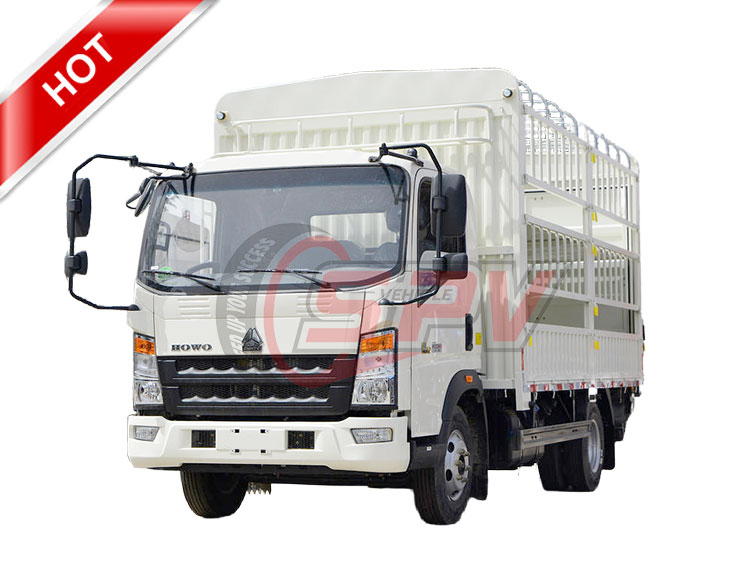

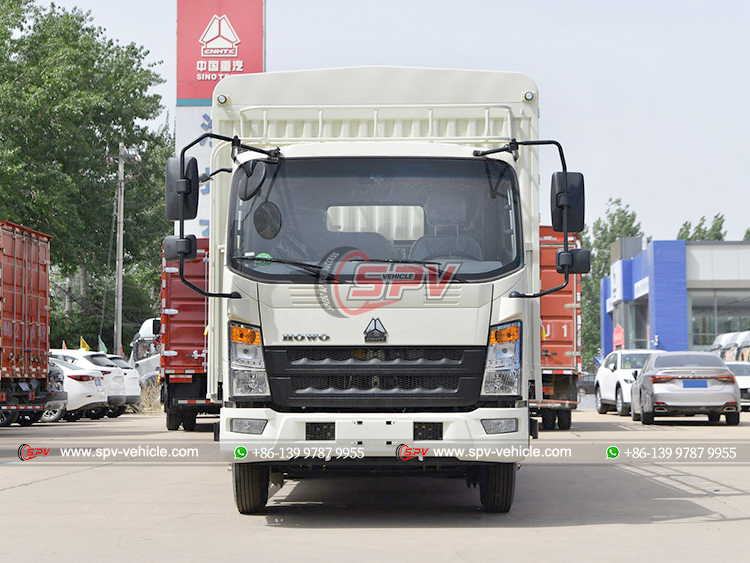

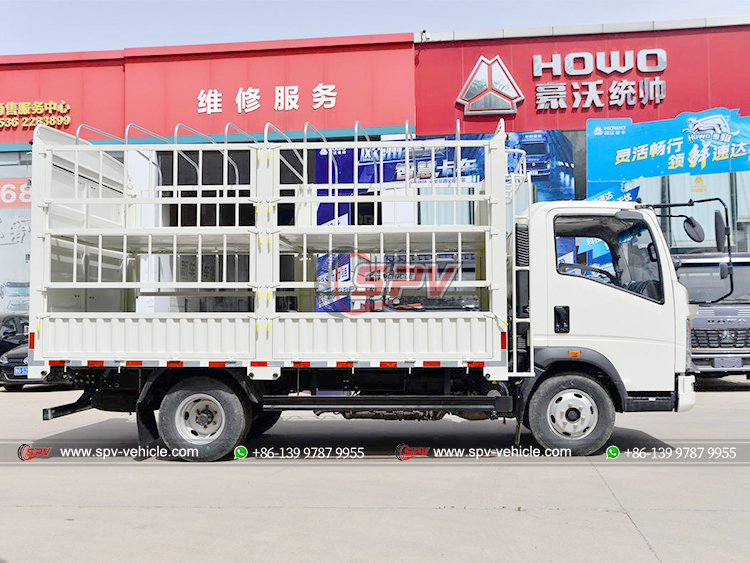

Fence freight truck (also called fence vehicle, fence cargo truck, high fence truck, cangzha truck, new grid transport truck, ) The fence truck is a special cargo transport vehicle with steel as its main structure. Its carriage adopts a fence design that can be raised and lowered, partially dismantled or fully dismantled, which has loading and unloading flexibility and structural reliability.
This type of cangzha truck generally uses high-strength steel (such as Baosteel 750LD) and aluminum alloy to optimize lightweight performance, and is equipped with air suspension and disc brake systems to improve safety. The curb weight of mainstream models ranges from 5.5 to 6.8 tons, and the total mass standard can reach 40 tons.
The main body of the fence cargo truck is made of corrugated steel plates pressed by fixtures. The railing system supports lifting, semi-disassembly or full-disassembly modes to meet different cargo loading and unloading needs.
---- SINOTRUK chassis ensures perfect driving performance.
---- WEICHAI engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High quality temperature preservation van body
---- Excellent Chinese brand temperature controlled unit or imported cooling system
---- Massive, durable, perfect performance
---- Prolonged service life

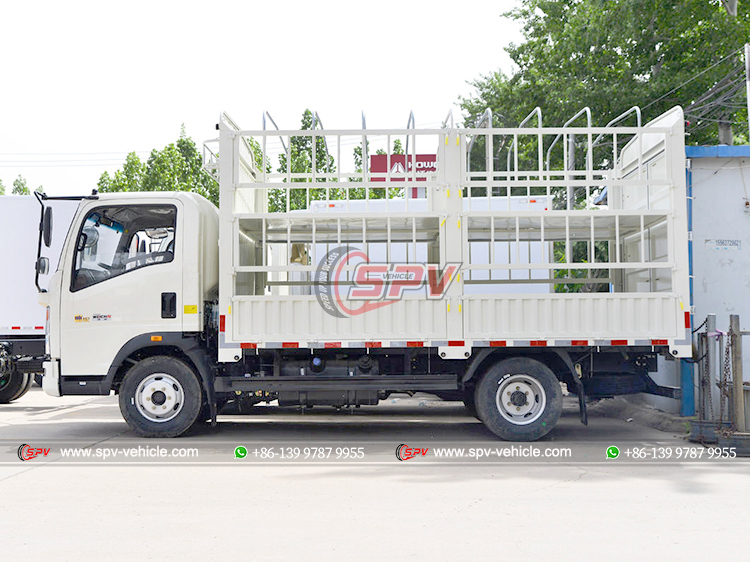

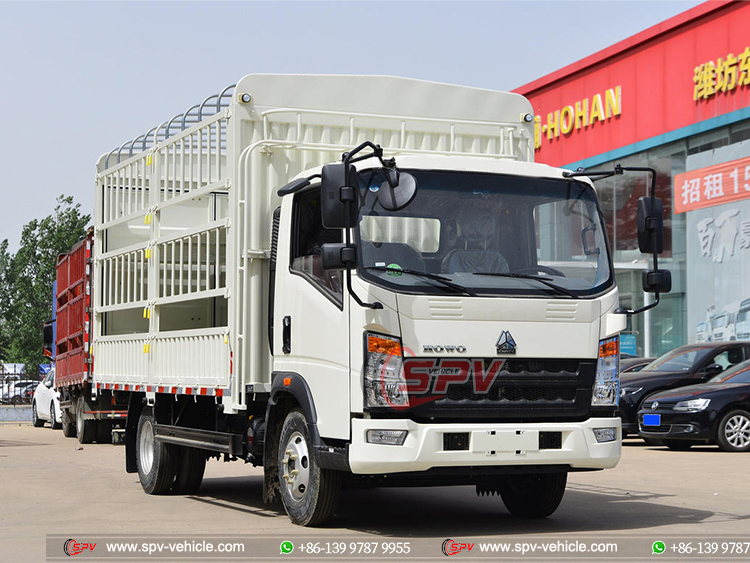

Fence Freight Truck Howo ( 1.5 Ton ) | ||
General | Vehicle Brand | SPV |
Chassis Brand | SINOTRUK | |
Overall Dimension | 5990 * 2200 * 3120 mm | |
GVW / Kerb Weight | 4,990 kg / 2,800 kg | |

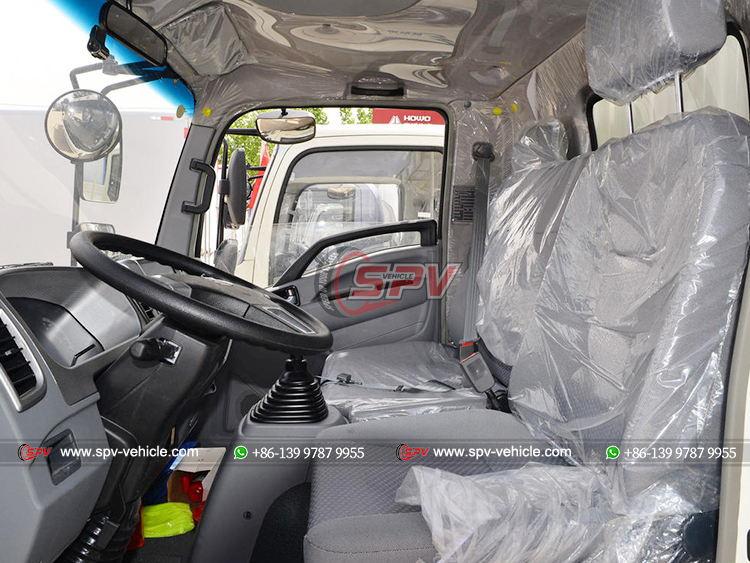

Cab | Cab Capacity | 3 persons allowed |
Air Conditioner | Air conditioner is equipped | |
Engine | Fuel Type | Diesel |
Engine Brand | SINOTRUK engine | |
Power | 140 Hp (103 KW) | |
Displacement | 2289 ml | |
Emission Standard | Euro VI | |
Chassis | Drive Type | 4X2, left hand drive or right hand drive |
Transmission | 5-speed forward, 1 reverse | |
No. of axle | 2 | |
Tyre Specification | 7.00R16 LT, Radial tyres, super wearable | |
Tyre Number | 6 tyres and 1 spare tyre | |
Max Speed | 95 km/h | |
Paint | Metallic paint | |
Superstructure | Box Capacity | 1.5 Ton |
Box Internal Dimension | 4200 * 2200 * 3120 mm | |
Box Material | corrugated steel | |

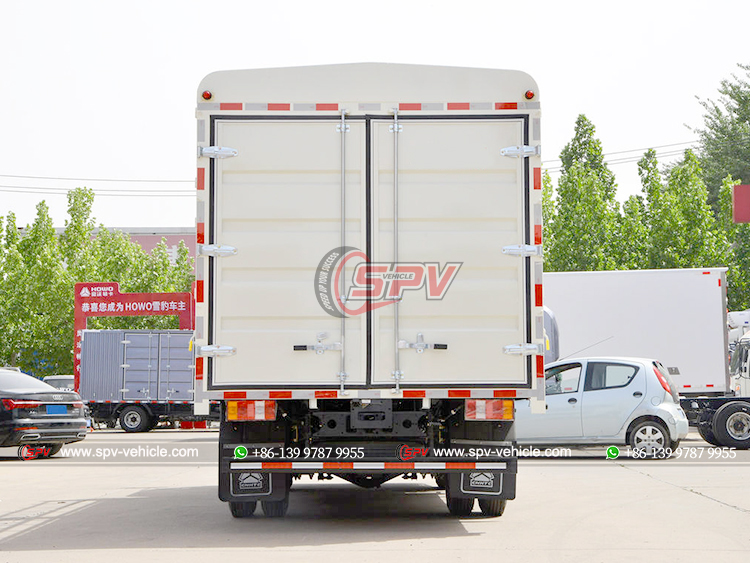

Doors | Two rear doors fully openable and one side door | |
Bottom Floor | Aluminium alloy checked plate(anti-slip) with aluminium ventilation stripes | |
Accessories | Stainless steel locking and hinge | |
All other standard accessories: Tool kit, English manual…… | ||
Optional |
** Box material could be aluminum or stainless steel. ** Cooling system could be imported brand. ** Temperature data logger, temperature alarm. ** Extra side door. ** Slide rail and meat hook for special use. |
