ShangHai SPV Special Vehicle Co., Ltd.

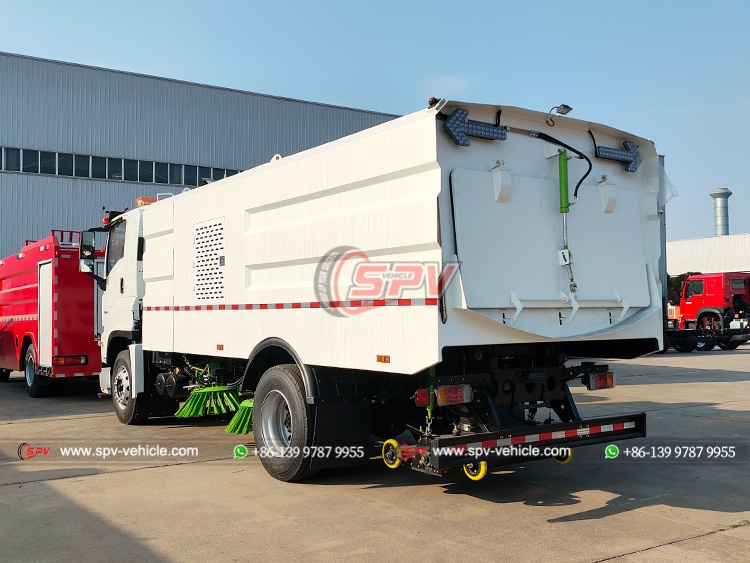

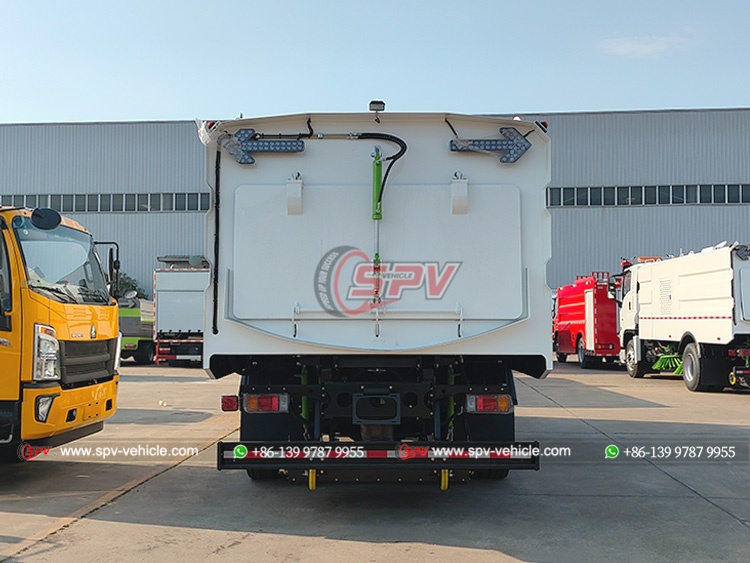

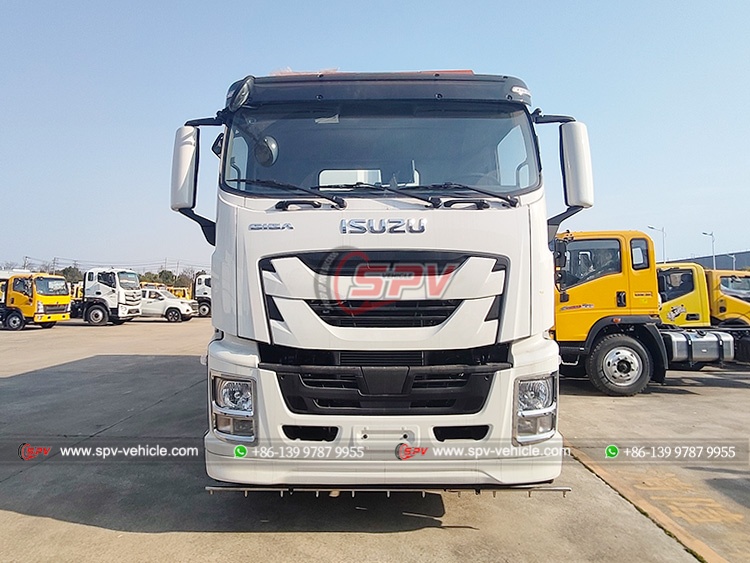

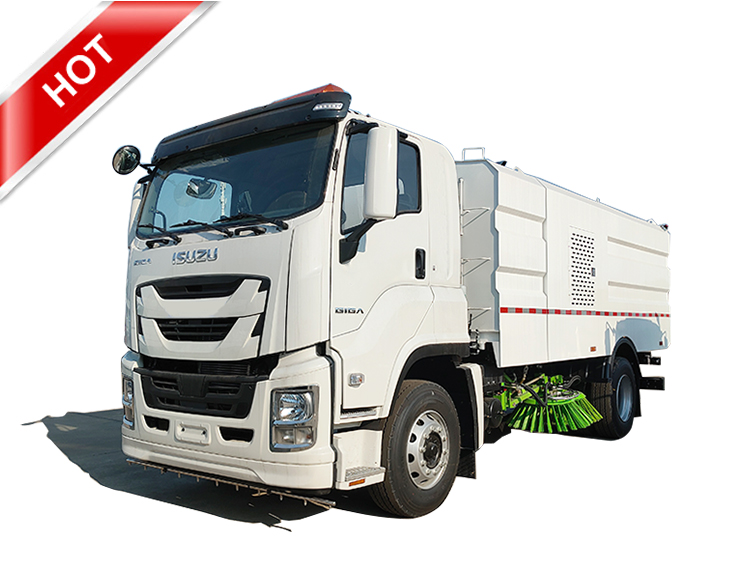

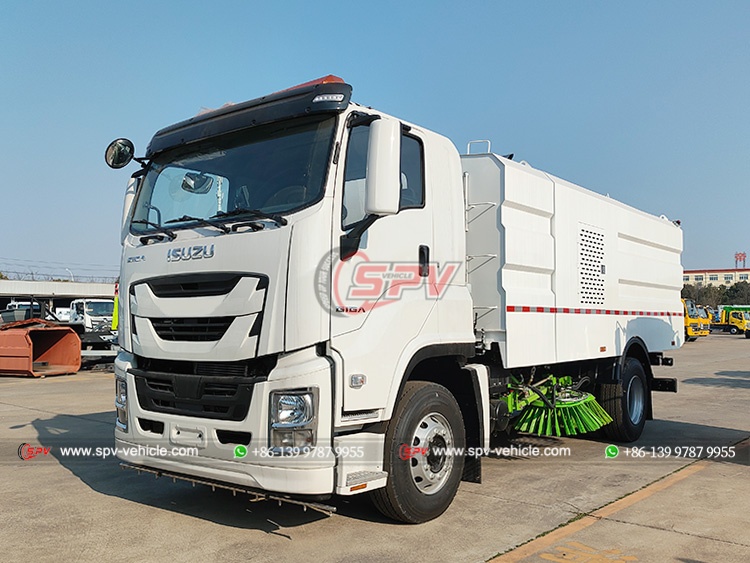

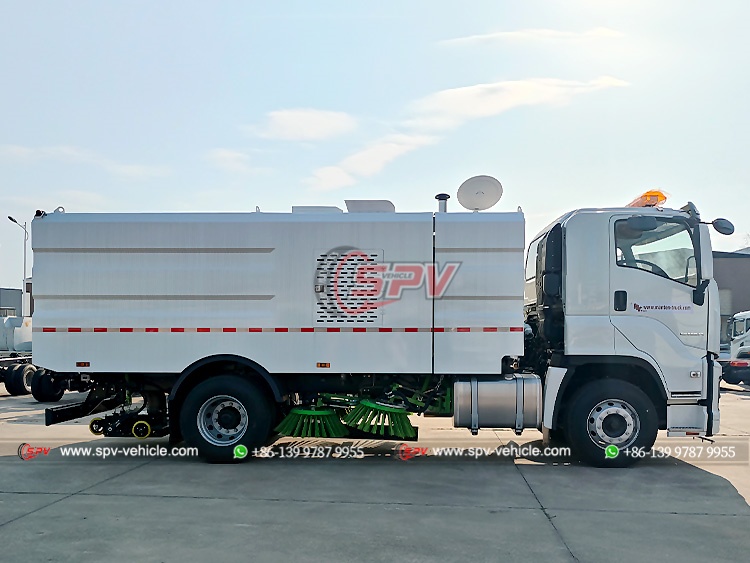

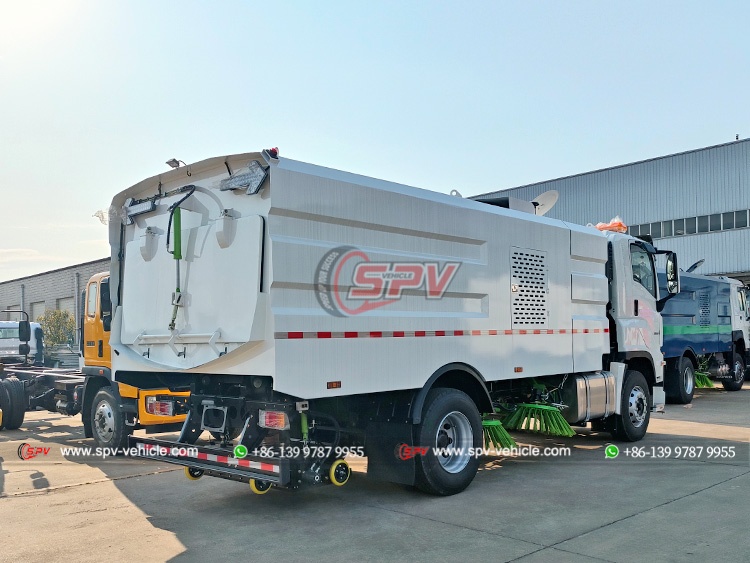

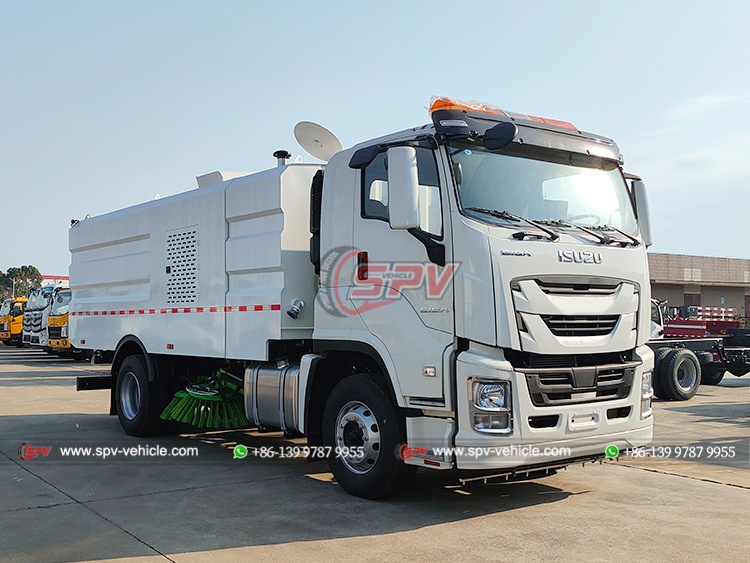

Street cleaning truck (also called street sweeper, ISUZU road sweeper truck, municipal vehicle, ISUZU sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle, ISUZU GIGA road sweeper lorry) is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.
The road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.
Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.
---- ISUZU FTR chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dustbin and water tank are made of stainless steel, corrosion-resistant, durable.
---- All electronic control integrated inside the cabin, convenient operation.
---- Noise reduction to minimize disturbance to urban life.
---- Suction nozzle is floating type, self-adjustable for different road condition.
---- Air blower is special for road sweeper, high efficient, low noise, wearable.
Similar Keywords: street cleaning vehicle, street sweeper, sweeper and cleaning truck, municipal vehicle, road sweeper, cleaning truck, ISUZU NPR vacuum truck, ISUZU npr, road vacuum truck.
|

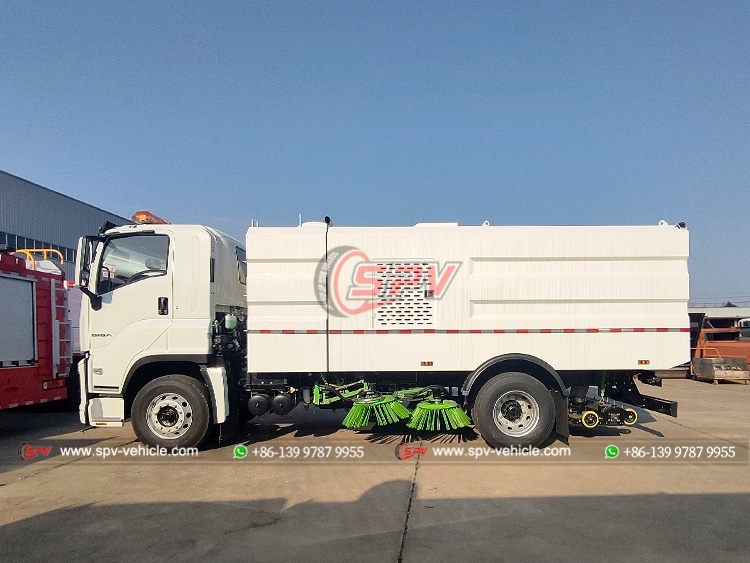

Road Sweeping Truck ISUZU ( 8 CBM dustbin & 2 CBM water tank ) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 6600 * 2300 * 2800 mm | |
| GVW / Kerb Weight | 18,000kg / 10,500kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU | |
| Power | 205 Ps (151 KW) | |
| Displacement | 5139 ml | |
| Emission Standard | Euro VI | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | Manual, 6-speed forward, 2-reverses | |
| No. of Axles | 2 | |
| Tyre Specification | 235/75R17.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | Stainless steel/carbon steel |
| Dustbin Capacity | 8 CBM | |
| Dustbin Material | Stainless steel/carbon steel | |
| Water Tank Capacity | 2,000 Litres (About 500 gallons) | |
| Sweeping Capacity | 45,000 - 90,000 m2/h | |
| Sweeping Speed | 3-25 km/h | |
| Max Sweeping Width | 2800 - 3200 mm | |
| Brooms | 2 sets at each side | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
| Optional |
** Backup alarm can be equipped. ** Camera can be equipped. ** Air blower can be of stainless steel. |
|
