ShangHai SPV Special Vehicle Co., Ltd.

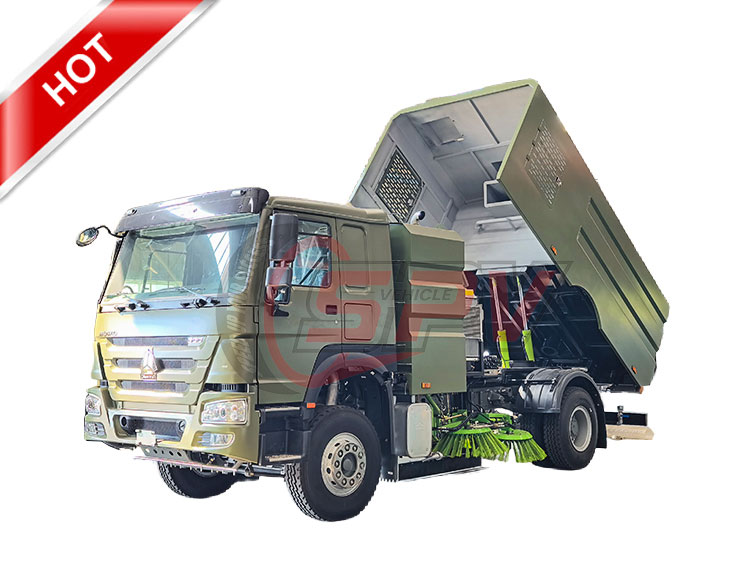

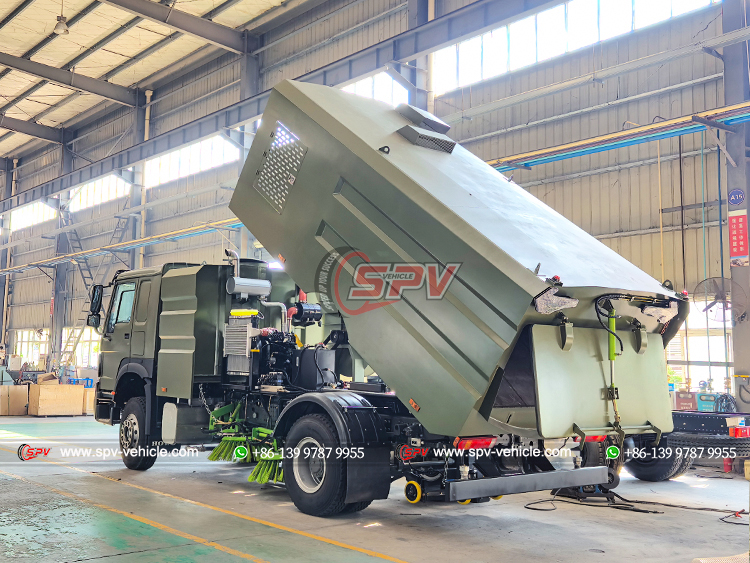

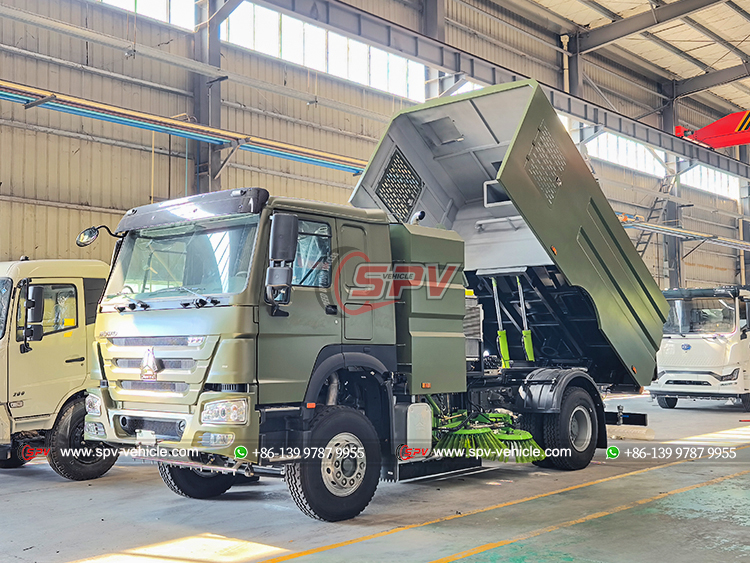

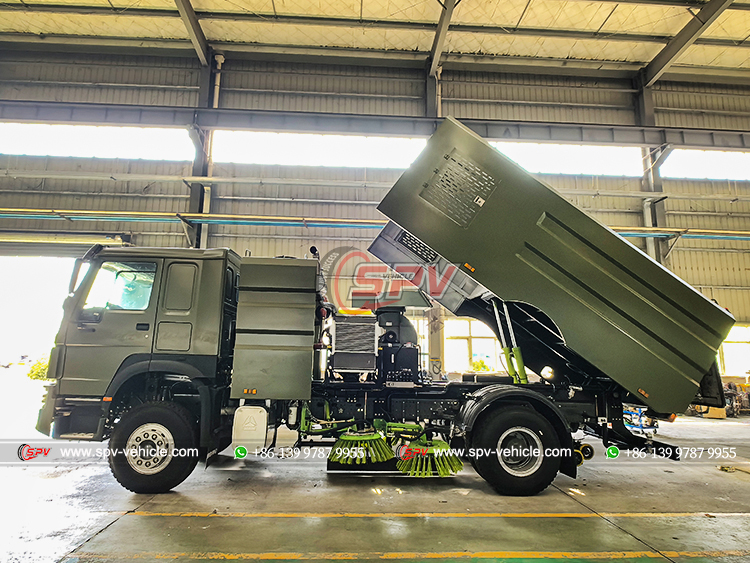

Street broom truck (also called street sweeper, municipal vehicle, Sinotruk sweeping car, street cleaner sweeper and cleaning truck, street cleaning vehicle, road sweeper truck, road cleaning truck, Howo street broom truck, road garbage collection truck
road vacuum truck) is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.
The road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.
Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.
---- Sinotruk chassis, perfect performance.
---- WeiChai engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Dustbin and water tank are made of stainless steel, corrosion-resistant, durable.
---- All electronic control integrated inside the cabin, convenient operation.
---- Noise reduction to minimize disturbance to urban life.
---- Suction nozzle is floating type, self-adjustable for different road condition.
---- Air blower is special for road sweeper, high efficient, low noise, wearable.
Similar Keywords: street cleaning vehicle, street sweeper, sweeper and cleaning truck, municipal vehicle, road sweeper, cleaning truck
|
Street Broom Truck Sinotruk ( 5 CBM dustbin & 1 CBM water tank ) |
||
| General | Vehicle Brand | SPV |
| Chassis Brand | SINOTRUK | |
| Overall Dimension | 5600 * 2300 * 2600 mm | |
| GVW / Kerb Weight | 7,300kg /4,800kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Air Conditioner is Equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Chinese Top Yunnei Engine | |
| Power | 116 Ps (85 KW) | |
| Displacement | 3760 ml | |
| Emission Standard | Euro II | |
| Chassis | Drive Type | 4X2, left hand drive, power assisted steering |
| Transmission | Manual,5-speed forward, 1-reverse | |
| No. of axle | 2 | |
| Tyre Specification | 7.00 R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Automatic Metallic Paint | |
| Superstructure | Water Tank | Stainless Steel |
| Dustbin Capacity | 5 CBM | |
| Water Tank Capacity | 1 CBM | |
| Dustbin Material | Stainless Steel | |
| Sweeping Capacity | 48,000 m3/h | |
| Sweeping Speed | 3-15 km/h | |
| Max Sweeping Width | 3200 mm | |
| Brooms | 2 pcs at each side | |
| Auxiliary Engine | JE493G3 JMC engine , super powerful | |
| All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… | ||
| Optional |
** Backup alarm can be equipped. ** Camera can be equipped. ** Air blower can be of stainless steel. |
|
