ShangHai SPV Special Vehicle Co., Ltd.

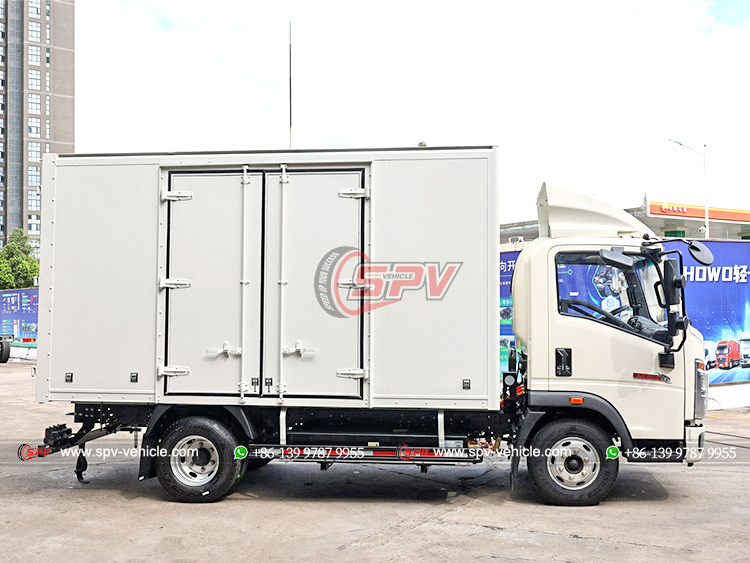

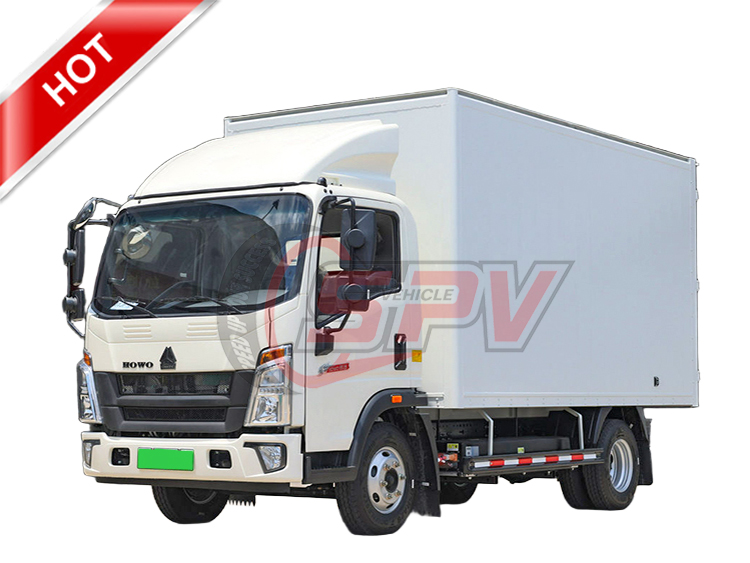

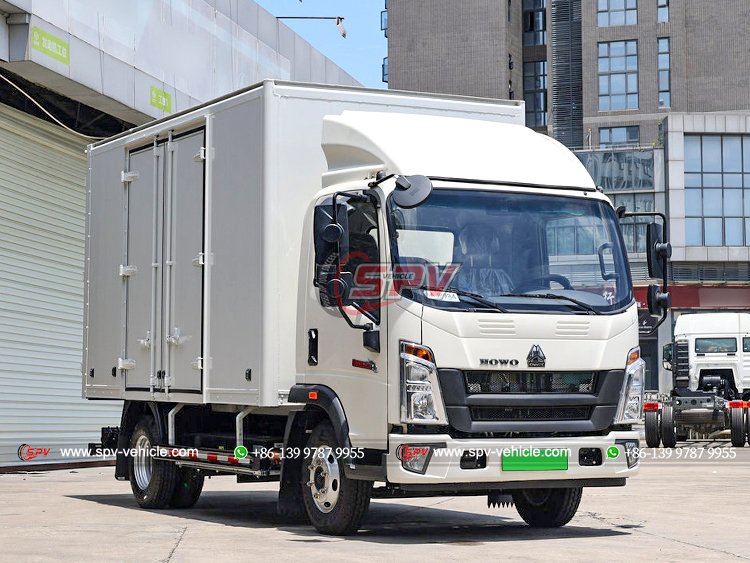

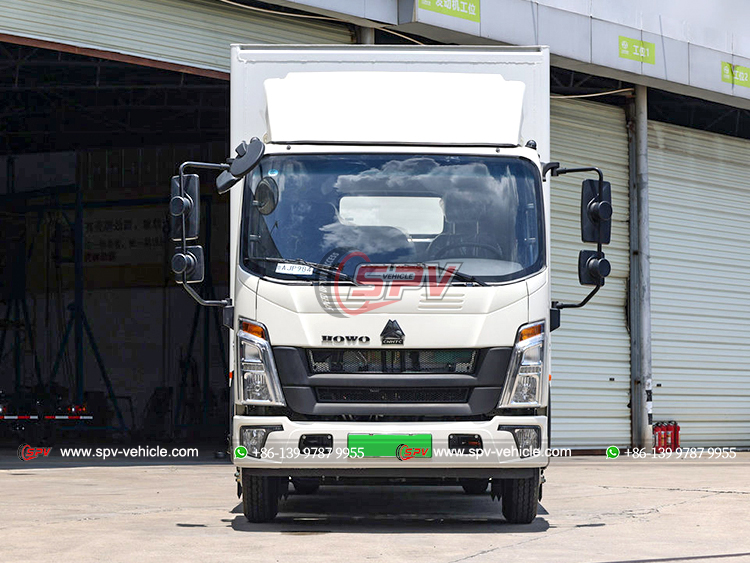

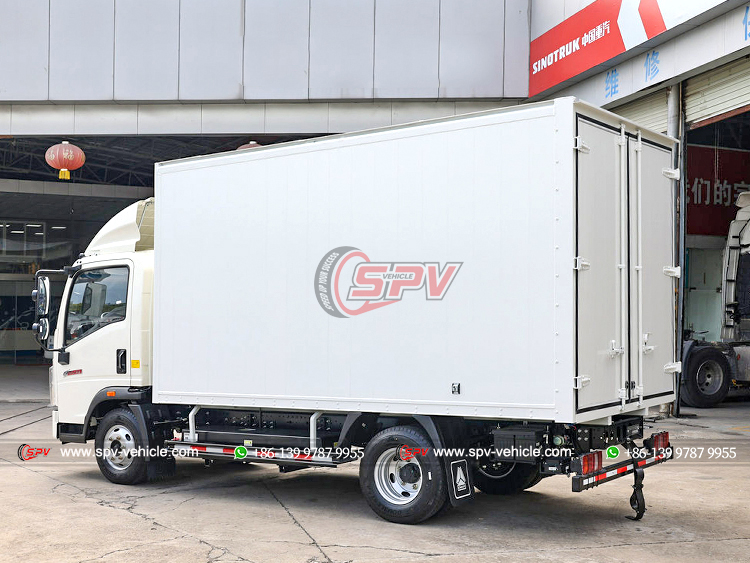

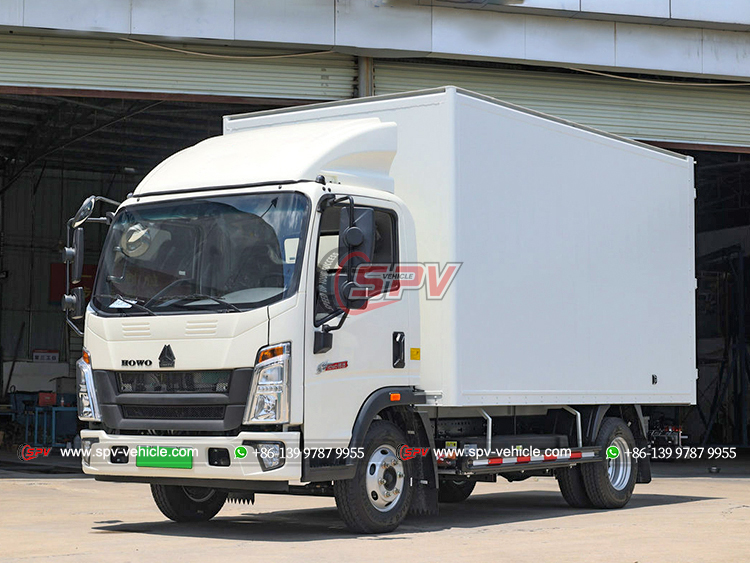

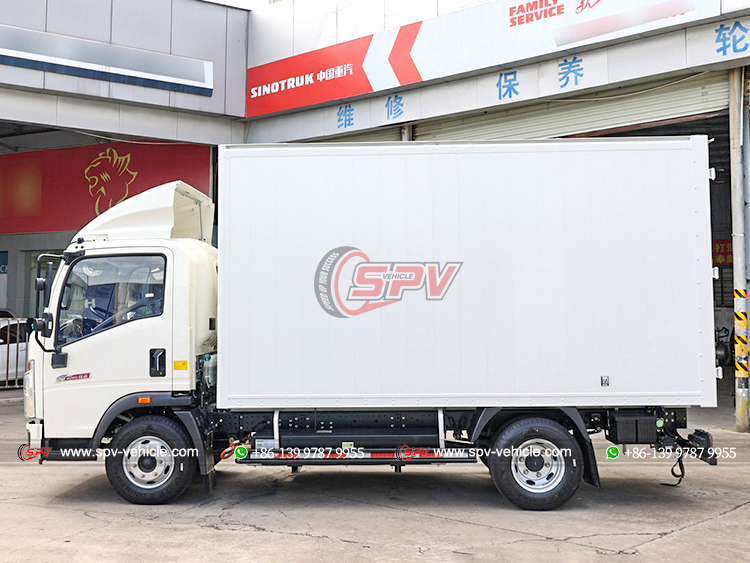

Insulated box truck (also called box vehicle, insulated van truck, dry van lorry, insulated box truck, insulated cube truck,isothermal van truck) is used to transport goods with dry closed box. It is very normal and important transport truck.
The material used for van truck body could be corrugated steel, color steel plate, fiberglass, aluminum…
By adding cooling system and polyurethane insulation layer, van truck could be refrigeration truck and carry cargo or food that need be in low temperature.
According to the requirements, it could be single door at rear or side, or double door.
---- SINOTRUK chassis ensures perfect driving performance.
---- SINOTRUK engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High quality temperature preservation van body
---- Excellent Chinese brand temperature controlled unit or imported cooling system
---- Massive, durable, perfect performance
---- Prolonged service life
| Insulated Box Truck SINOTRUK ( 3 Ton ) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | SINOTRUK | |
| Overall Dimension | 8940 * 2580 * 3920 mm | |
| GVW / Kerb Weight | 6,600 kg / 2,800 kg | |
| Cab | Cab Capacity | 3 persons' seats |
| Air Conditioner | Air conditioner is equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | SINOTRUK engine | |
| Power | 116 Hp (85 KW) | |
| Displacement | 3760 ml | |
| Emission Standard | Euro II | |
| Chassis | Drive Type | 4X2, right hand drive, power assistant |
| Transmission | Manual, 6-speed forward, 1-reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 7.00R22.5, wire structure, super wearable | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Box Capacity | 3 Ton |
| Box Internal Dimension | 4280 * 2100 * 2360 mm | |
| Box Material | Fiberglass with 80 mm foaming | |

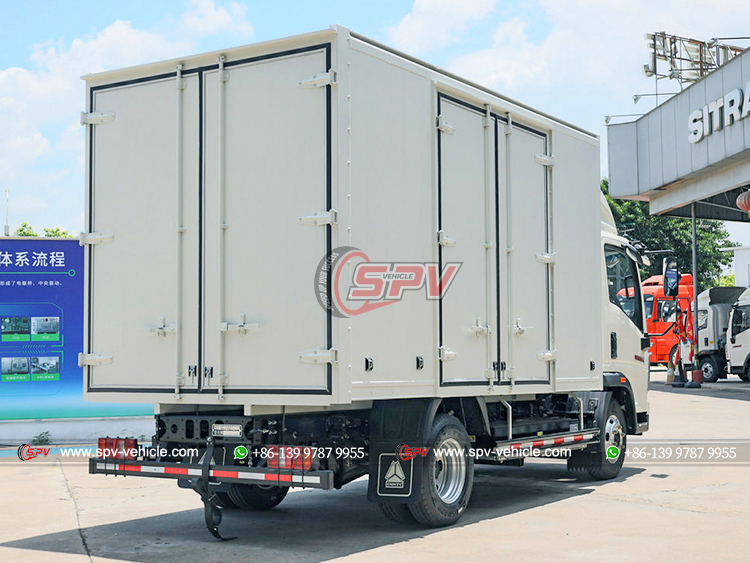

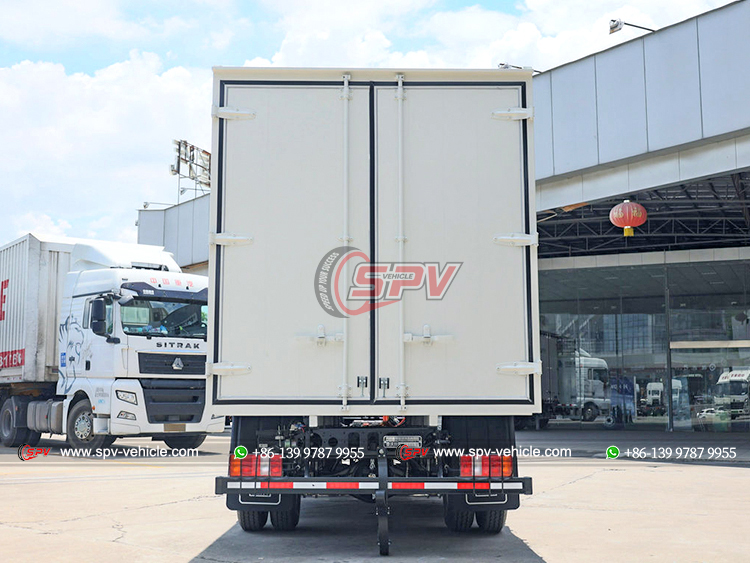

| Doors | Two rear doors fully openable and one side door | |
| Bottom Floor | Aluminium alloy checked plate(anti-slip) with aluminium ventilation stripes | |
| Accessories | Stainless steel locking and hinge | |
| All other standard accessories: Tool kit, English manual…… | ||
| Optional |
** Box material could be aluminum or stainless steel. ** Cooling system could be imported brand. ** Temperature data logger, temperature alarm. ** Extra side door. ** Slide rail and meat hook for special use. |
|
