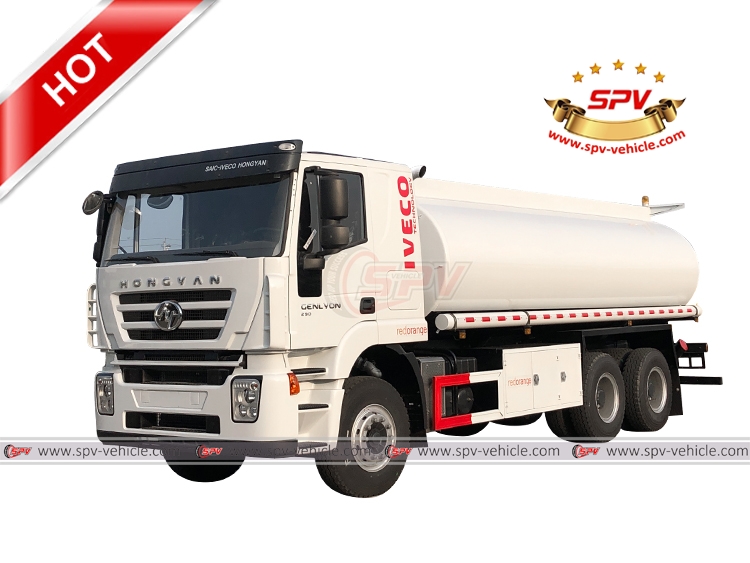

Refueling Truck IVECO
18,000 Litres Fuel Tanker Truck
Refueling Truck IVECO
Function:

Refueling truck (also called petrol fuel tank, oil tank truck, fuel dispenser, diesel mobile tanker, petrol bowser, crude oil tanker, fuel transfer tanker, aircraft refueling truck) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.

Features:

---- IVECO chassis, perfect performance.
---- CURSOR engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.

Specification:


Refueling Truck IVECO ( 18,000 Litres )
General Vehicle Brand SPV
Chassis Brand IVECO
Overall Dimension 9600 * 2500 * 3200 mm
GVW / Kerb Weight 25,000 kg / 12,760 kg
Cab Cab Capacity 2 persons seats with 1 sleeper
Air Conditioner Equipped
Engine Fuel Type Diesel
Engine Brand IVECO CURSOR engine
Power 290 Ps (213 KW)
Displacement 8709 ml
Emission Standard Euro III
Chassis Drive Type 6X4, left or right hand drive
Transmission 9 - speed forward, 1 reverse
Wheelbase/No. of axle 4325+1350 mm / 3
Tyre Specification 11.00R20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 80 km/h
Paint Metallic paint
Superstructure Tank Capacity 18,000 Litres ( About 4,700 gallons)
Tank Material Carbon steel
Pump Fuel pump equipped for overhead delivery
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers……..
Optional ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)……
** It can be divided into many compartments.
** Imported American mechnical pump Blackmer
** Imported American electrical pump Fillrite....
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge……
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.

18,000 Litres Refueling Truck IVECO - F
Front View of Refueling Truck IVECO(18,000 Litres)

18,000 Litres Refueling Truck IVECO - LS
Left Side View of Refueling Truck IVECO(18,000 Litres)

18,000 Litres Refueling Truck IVECO - LB
Left Back View of Refueling Truck IVECO(18,000 Litres)

18,000 Litres Refueling Truck IVECO - RF
Right Front View of Refueling Truck IVECO(18,000 Litres)

18,000 Litres Refueling Truck IVECO - RS
Right Side View of Refueling Truck IVECO(18,000 Litres)

18,000 Litres Refueling Truck IVECO - RB
Right Back View of Refueling Truck IVECO(18,000 Litres)

18,000 Litres Refueling Truck IVECO - Discharge Box
18,000 Litres Refueling Truck IVECO - Discharge Box

*** To Mali - 18,000 litres Fuel Tanker Truck IVECO ***
18,000 Litres Refueling Truck IVECO - LF
Left Front View of Refueling Truck IVECO(18,000 Litres)

*** To Djibouti in 2018 - 20,000 litres Fuel Tanker Truck IVECO ***
20,000 litres Fuel Tank Truck IVECO - LF
Left front view of 20,000 litres Fuel Tanker Truck IVECO

20,000 litres Fuel Tank Truck IVECO - LB
Left back view of 20,000 litres Fuel Tanker Truck IVECO - with hdnadrail lifted

20,000 litres Fuel Tank Truck IVECO - Discharge Box
Discharge box of 20,000 litres Fuel Tanker Truck IVECO

*** To Angola in 2015 - 20,000 litres Fuel Tanker Truck IVECO ***
20,000 litres Fuel Tanker Truck IVECO - LF
Left Front view of 20,000 litres Fuel Tanker Truck IVECO

20,000 litres Fuel Tanker Truck IVECO - LB
Left back view of 20,000 litres Fuel Tanker Truck IVECO

20,000 litres Fuel Tank Truck IVECO - Pump Box
Discharge Box detail view of 20,000 litres Fuel Tanker Truck IVECO
