Diesel Oil Tanker Truck IVECO
30,000Litres Fuel Transport Tanker
Diesel Oil Tanker Truck IVECO
Function:

Diesel oil tank truck (also called fuel transport tanker, diesel truck, fuel tank, oil bowser, diesel fuel tank, diesel tanker truck, diesel tank truck, truck mounted diesel tanker, mobile diesel tanker, diesel oil tanker truck) is used to transport oil, diesel, gasoline, petroleum, kerosene, etc.

It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.

Features:

---- IVECO-Genlyon chassis ensures perfect driving performance.
---- IVECO-Cursor engine, 350HP super powerful; reliable performance.
---- Tank material has options of carbon steel, stainless steel, aluminum alloy…
---- Main fuel components available of international brands (ADR standard) - Civacon of OPW (America), EMCO Wheaton (America), DIXON (Europe)....
---- Original American brand Tuthill Fill-rite electrical refueling pump and flow meter(mechanical or digital) available.
---- Bottom loading system including vapor recovery and overfill detection system can be equipped.
---- Nice shape, rational structure
---- Prolonged service life

Specification:

Diesel Oil Tank Truck IVECO (30,000 litres)
General Vehicle Brand SPV
Chassis Brand IVECO China
Overall Dimension 11340 * 2560 * 3480 mm
GVW / Kerb Weight 47,000 kg / 16,830 kg
Cab Cab Capacity 2 persons seat with sleeper
Air Conditioner Air Conditioner Equipped
Engine Fuel Type Diesel
Engine Brand IVECO-Cursor
Power 380 Hp (279 KW)
Displacement 8709 ml
Emission Standard Euro 3
Chassis Drive Type 8X4, left hand drive or right hand drive
Transmission Manual, 12 speed forward, 2 reverse
Wheelbase/No. of axle 1800 + 4600 + 1400 mm / 4
Tyre Specification 12.00R20
Tyre Number 12 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Tank Capacity 30,000 Litres (About 8,000 gallons)
Tank Material carbon steel
Pump Fuel pump equipped for overhead delivery
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers……
Optional  ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)……
** It can be divided into many compartments.
** Imported American mechnical pump Blackmer
** Imported American electrical pump Fillrite....
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge……
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.




30,000 Litres Fuel Tank Truck IVECO F
Front View of 30,000 litres Diesel Oil Tank Truck IVECO

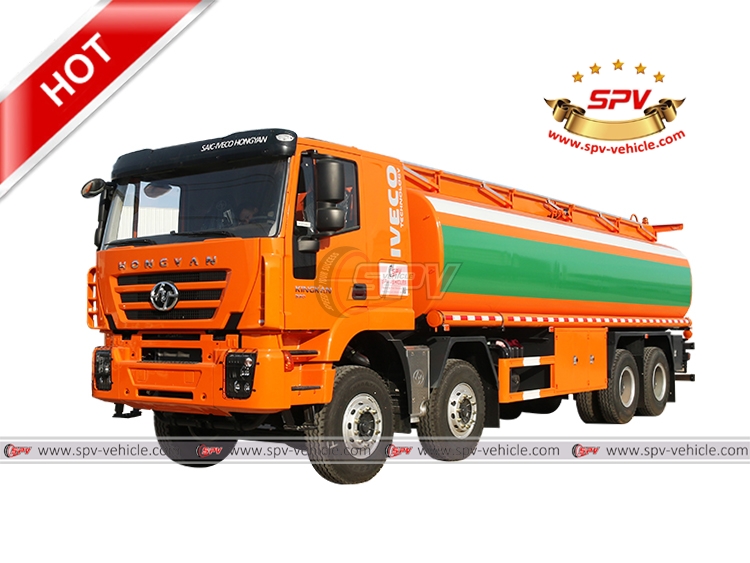

30,000 Litres Fuel Tank Truck IVECO LF
Left Front View of 30,000 litres Diesel Oil Tank Truck IVECO

30,000 Litres Fuel Tank Truck IVECO L
Left Side View of 30,000 litres Diesel Oil Tank Truck IVECO

30,000 Litres Fuel Tank Truck IVECO LB
Left Back View of 30,000 litres Diesel Oil Tank Truck IVECO

30,000 Litres Fuel Tank Truck IVECO B
Back View of 30,000 litres Diesel Oil Tank Truck IVECO

30,000 Litres Fuel Tank Truck IVECO RF
Right Front View of 30,000 litres Diesel Oil Tank Truck IVECO

30,000 Litres Fuel Tank Truck IVECO R
Right Side View of 30,000 litres Diesel Oil Tank Truck IVECO

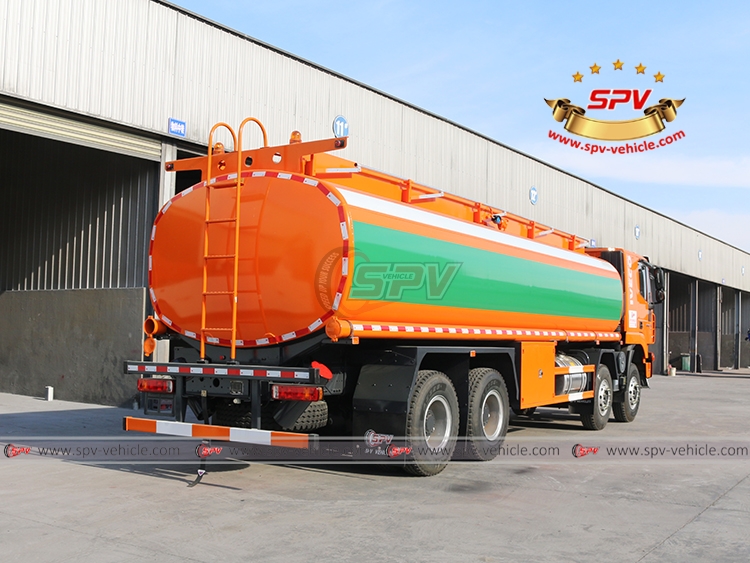

30,000 Litres Fuel Tank Truck IVECO RB
Right Back View of 30,000 litres Diesel Oil Tank Truck IVECO

30,000 Litres Fuel Tank Truck IVECO-DT (4)
30,000 litres Diesel Oil Tank Truck IVECO - Discharging Box - Flow meter with 10 meters hose reel and 1.5" nozzle

30,000 Litres Fuel Tank Truck IVECO-Dispenser
30,000 litres Diesel Oil Tank Truck IVECO - Discharging Box - Dispenser

30,000 Litres Fuel Tank Truck IVECO-Refueling
30,000 litres Diesel Oil Tank Truck IVECO - Dispenser Testing

30,000 Litres Fuel Tank Truck IVECO-Loading 1
30,000 litres Diesel Oil Tank Truck IVECO - Loading 1

30,000 Litres Fuel Tank Truck IVECO-Loading 2
30,000 litres Diesel Oil Tank Truck IVECO - Loading 2


Similar Key Words: fuel oil tank truck, fuel tanker, fuel truck, truck tanker, fuel bowser, oil tank, oil tanker, oil truck, oil transfer truck, truck mounted diesel tanker, fuel dispensing truck, fuel refueler truck, aviation refueling vehicle, tank lorry.
