Fuel Tanker ISUZU
5,000 Litres Oil Transport Truck
Fuel Tanker ISUZU
Function:

Fuel tank truck (also called oil transport truck, oil truck tanker, light fuel tank truck, truck tank fuel, petrol tanker, petrol fuel tank, diesel dispensing truck) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.



Features:

---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.



Specification:

 Fuel Tanker ISUZU (5,000 Litres)
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 6000 * 1880 * 2552 mm
GVW / Kerb Weight 7,300 kg / 3,370 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner  Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand ISUZU engine, 4HK1
Power 120 Ps (88 KW)
Displacement 2999 ml
Emission Standard Euro IV
Chassis Drive Type 4X2, left hand drive
Transmission ISUZU gear box, no overhaul within 500,000km
Wheelbase/No. of axle 3360 mm / 2
Tyre Specification 7.00-16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Tank Capacity 5,000 Litres (About 1,300 gallons)
Tank Material Carbon steel
Pump Fuel pump equipped for overhead delivery
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers……..
Optional ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)……
** It can be divided into many compartments.
** Imported American mechnical pump Blackmer
** Imported American electrical pump Fillrite....
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge……
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.

Fuel Tank Truck ISUZU - 4,000 litres

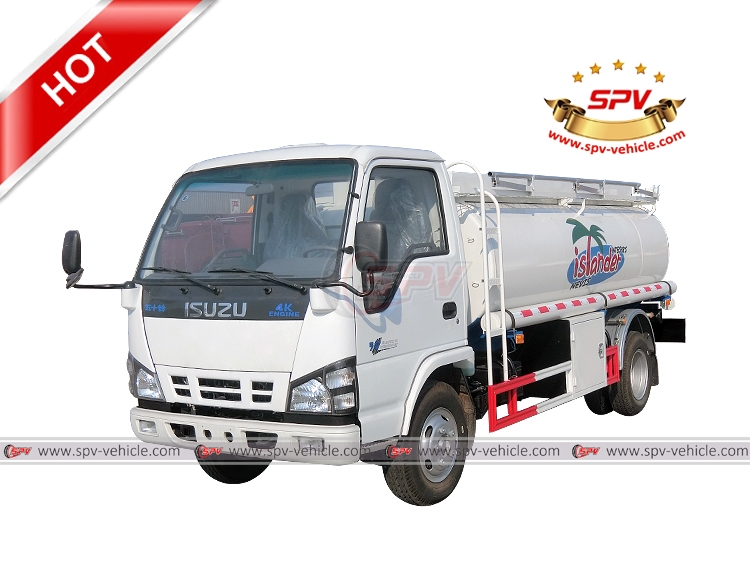

Photo 1: ISUZU Fuel Tank Truck - Left Front View

Fuel Tank Truck ISUZU - Flow Meter and Howse Reel with Nozzle
Photo 17: ISUZU Fuel Tank Truck - Fuel flow meter and 15 meters’ hose reel with nozzle

Fuel Tank Truck ISUZU - LS
Photo 3: Left side view of Fuel Tank Truck ISUZU (4,000 litres)

Fuel Tank Truck ISUZU - LB
Photo 4: Left back view of Fuel Tank Truck ISUZU (4,000 litres)

Fuel Tank Truck ISUZU - RF
Photo 5: Right front view of Fuel Tank Truck ISUZU (4,000 litres)

Fuel Tank Truck ISUZU - RS
Photo 6: Right side view of Fuel Tank Truck ISUZU (4,000 litres)

Fuel Tank Truck ISUZU - RB
Photo 7: Right back view of Fuel Tank Truck ISUZU (4,000 litres)

Fuel Tank Truck ISUZU - B
Photo 8: Back view of Fuel Tank Truck ISUZU (4,000 litres)

Fuel Tank Truck ISUZU - Loading into Container 01
Photo 9: To Saint Kitts and Nevis - one unit of Fuel Tank Truck ISUZU (4,000 litres)

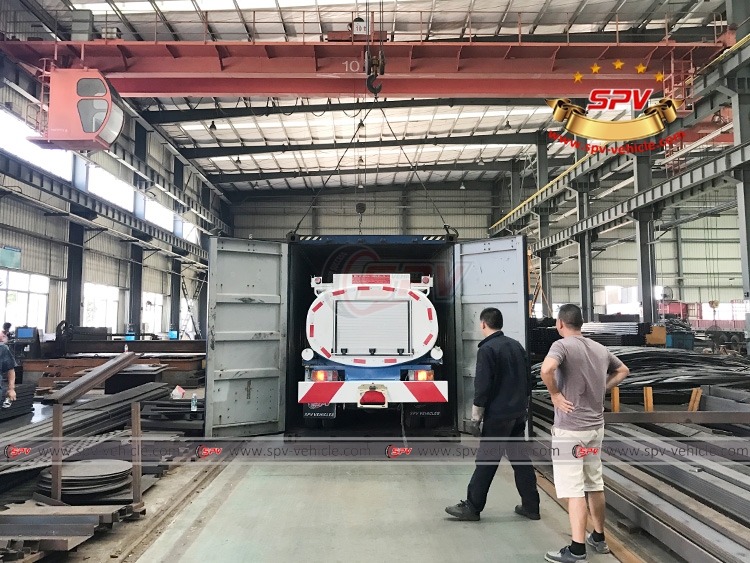

Fuel Tank Truck ISUZU - Loading into Container 02

 Photo 10: To Saint Kitts and Nevis - one unit of Fuel Tank Truck ISUZU (4,000 litres)
