ShangHai SPV Special Vehicle Co., Ltd.
Fuel bowser truck (also called fuel tank truck, diesel tanker truck, oil truck tanker, fuel oil tank, diesel oil tank truck, petrol tanker, light fuel tank truck, crude oil tanker, refuel tank truck) is used to transport oil, diesel, gasoline, kerosene, etc. It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.
| Fuel Bowser Truck ISUZU (8,000 Litres) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7000 * 2200 * 2550 mm | |
| GVW / Kerb Weight | 10,000 kg / 5,070 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 190 Ps (139 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU gear box, 5 speed forward, 1reverse | |
| No. of axle | 2 | |
| Tyre Specification | 135/75R17.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 105 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 8,000 Litres (About 2,100 gallons) |
| Tank Material | Carbon steel | |
| Pump | Fuel pump equipped for overhead delivery | |
| Suction Head | 6 m | |
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional |
** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… ** It can be divided into many compartments. ** Imported American mechnical pump Blackmer ** Imported American electrical pump Fillrite.... ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge…… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|
8,000 Litres Fuel Bowser Truck ISUZU - Left Front Side View
8,000 Litres Refueling Truck ISUZU - Left Side View

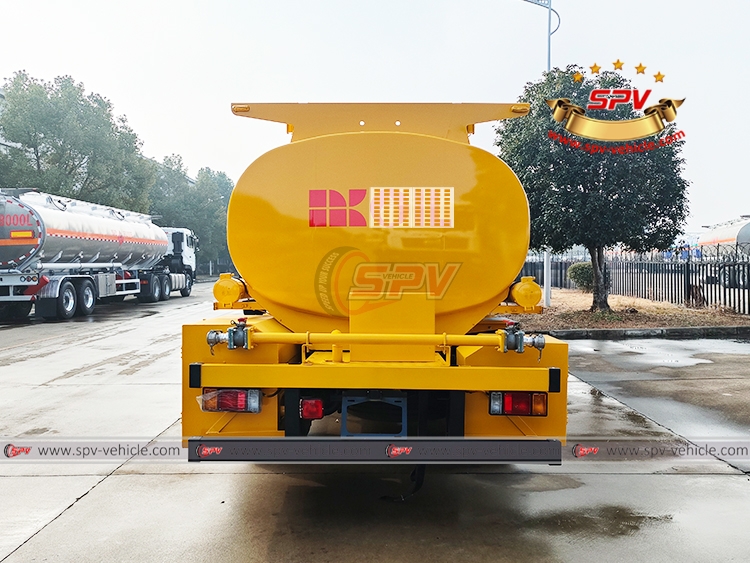

8,000 Litres Fuel Tank Truck ISUZU - Rear Side View
