ShangHai SPV Special Vehicle Co., Ltd.
Diesel dispenser truck (also called fuel delivery truck, diesel tanker truck, fuel tank truck, diesel tanker, DONGFENG fuel tank truck,
petrol fuel tank, fuel dispensing truck, DONGFENG light oil truck, oil tanker truck, truck tank fuel) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.
---- Dongfeng chassis, perfect performance.
---- Dongfeng Chaoyang engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.
| Diesel Dispenser Truck Dongfeng (4,000 Litres) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | Dongfeng | |
| Overall Dimension | 5995 * 2250 * 2480 mm | |
| GVW / Kerb Weight | 7,300 kg / 3,400 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is optional | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Dongfeng Chaoyang engine | |
| Power | 120 Ps (88 KW) | |
| Displacement | 3856 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 4X2, left or right hand drive |
| Transmission | 5-speed front, 1 reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 7.00-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 80 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 4,000 Litres (About 1,066 gallons) |
| Tank Material | Carbon steel | |
| Pump | Fuel pump equipped for overhead delivery | |
| Suction Head | 6 m | |
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional |
** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… ** It can be divided into many compartments. ** Imported American mechnical pump Blackmer ** Imported American electrical pump Fillrite.... ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge…… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|

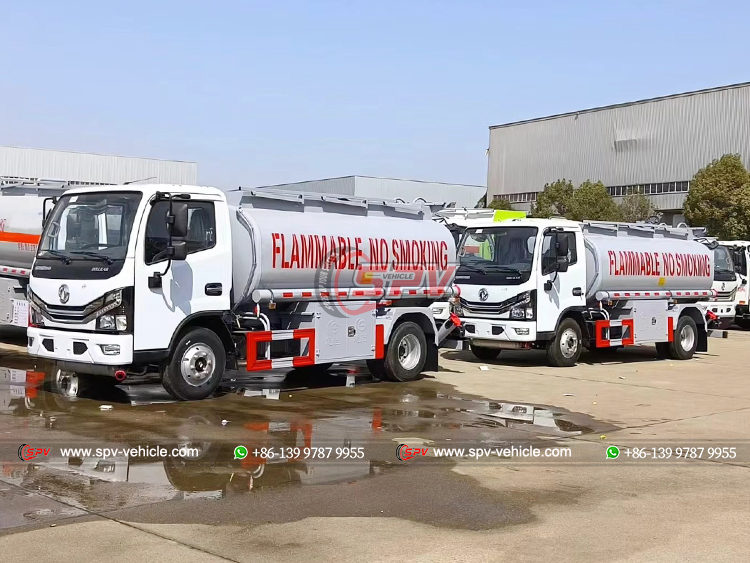

DONGFENG 4x2 Fuel Tank Truck - Front Left Side

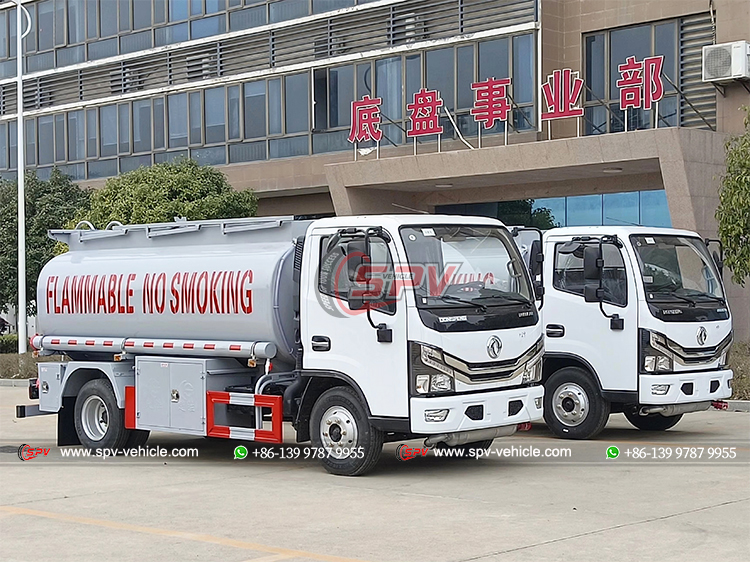

DONGFENG 4x2 Refueling Truck - Front Right Side

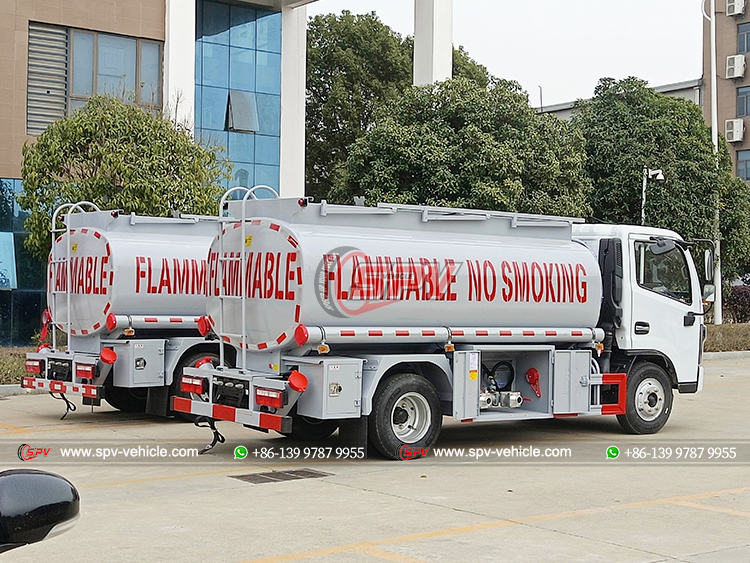

DONGFENG Light-duty Fuel Dispensing Truck - Rear Right Side

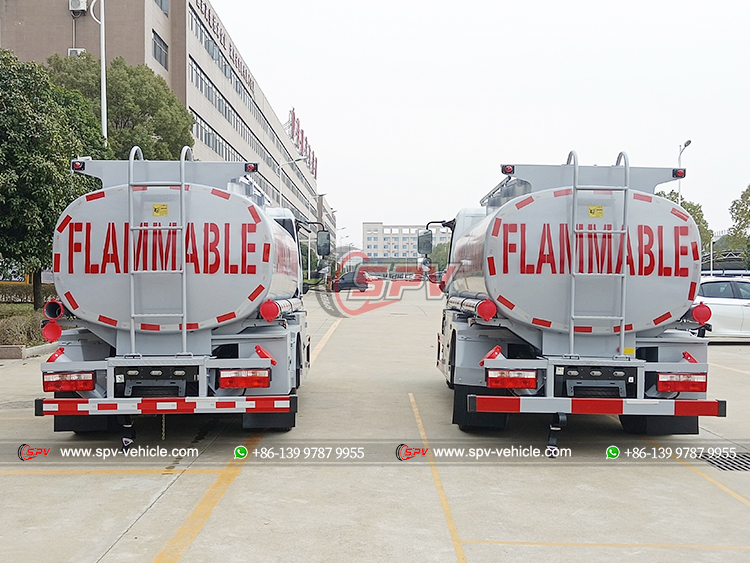

DONGFENG Fuel Delivery Truck - Rear Side

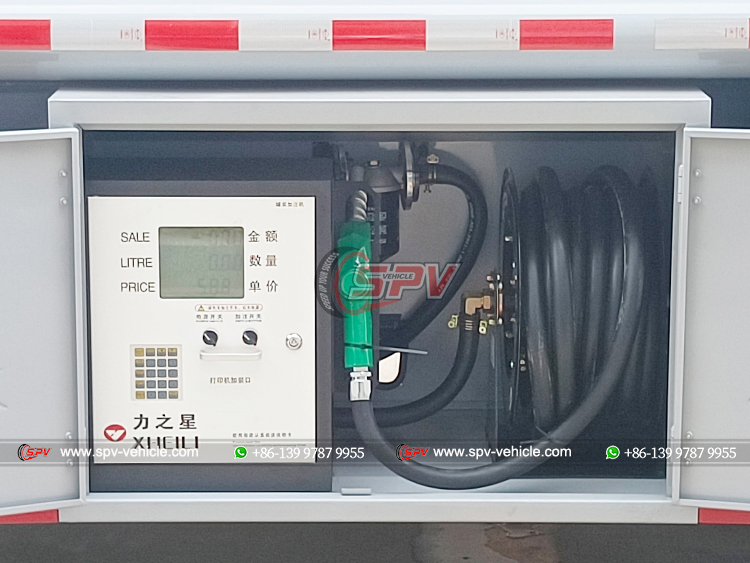

Fuel Dispenser of DONGFENG Refueling Truck

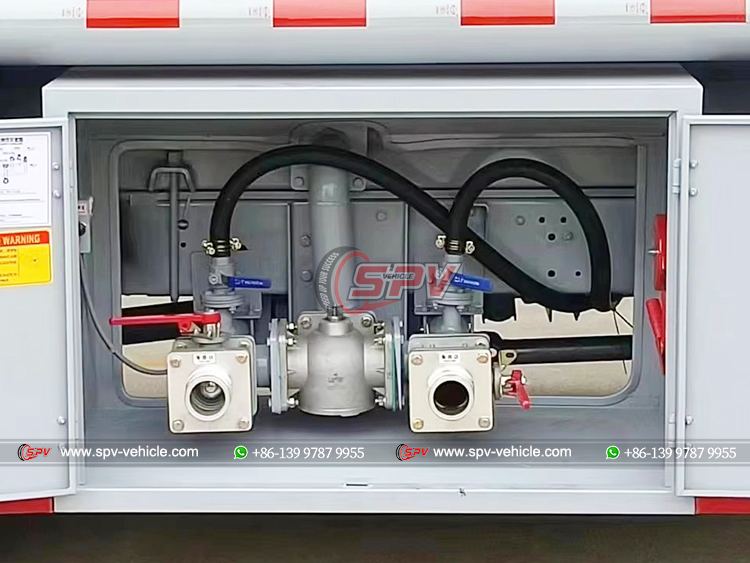

Valves of Fuel Dispensing Truck
