Water Sprinkler Truck ISUZU 8X4
25,000 Litres Water Spray Truck
Water Sprinkler Truck ISUZU 8X4
Function:

Water Sprinkler truck (also called water spary truck, water sprinkler truck, ISUZU greening water sprinkler, water spray truck, ISUZU dust control truck, Multi-functional Dust Suppression Truck ISUZUwater transport truck, reduce dust truck, ISUZU watering truck, mining spray truck, dust reduce truck, ) is a special vehicle for efficient washing operations. It is suitable for washing operations in urban roads, highways, squares, and mine area, etc, as well as municipal and landscaping watering operations.


Water tanker can be equipped with special sprayers to achieve front flush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, called as water sprinkler, water spray truck.
With rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.

Water bowser can be also equipped with pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.

Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life
Specification:
Water Sprinkler Truck ISUZU GIGA
8X4 (25,000 Litres)
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 12000 * 2500 * 3200 mm
GVW / Kerb Weight 33,000kg / 14,800 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine
Power 460 Hp (338 KW)
Displacement 15981 ml
Emission Standard Euro VI
Chassis Drive Type 8X4, left hand drive
Transmission ISUZU manual, 10-speed forward, 2 reverse
No. of Axles 4
Tyre Specification 11.00R20
Tyre Number 12 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Tank Capacity 25,000 Litres ( About 6,600gallons)
Tank Material Carbon steel
Flow Speed 1000 litres / min
Lift 90 m
Suction Head 6 m
Hose High quality PVC hose, anti-aging
All other standard accessories: manhole, ladder, inlet, discharge…….
Optional ** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.

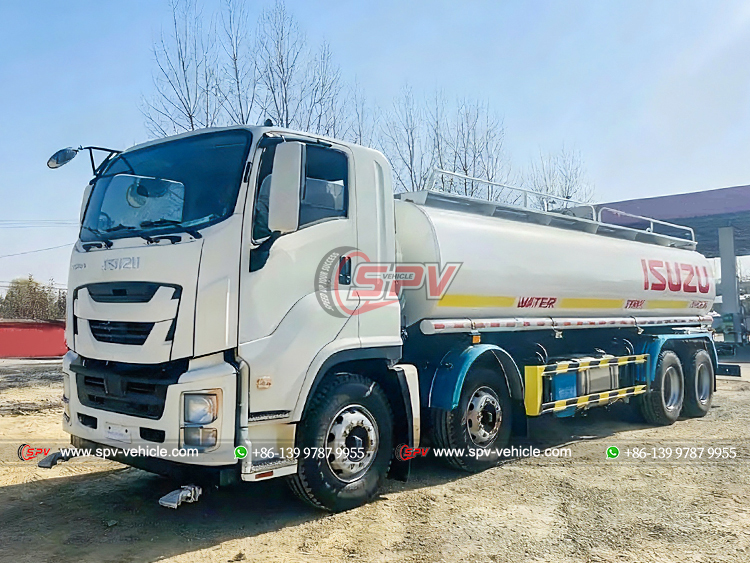

ISUZU 8x4 Water Tank Truck - Front Left Side
ISUZU 8x4 Water Tank Truck - Front Left Side

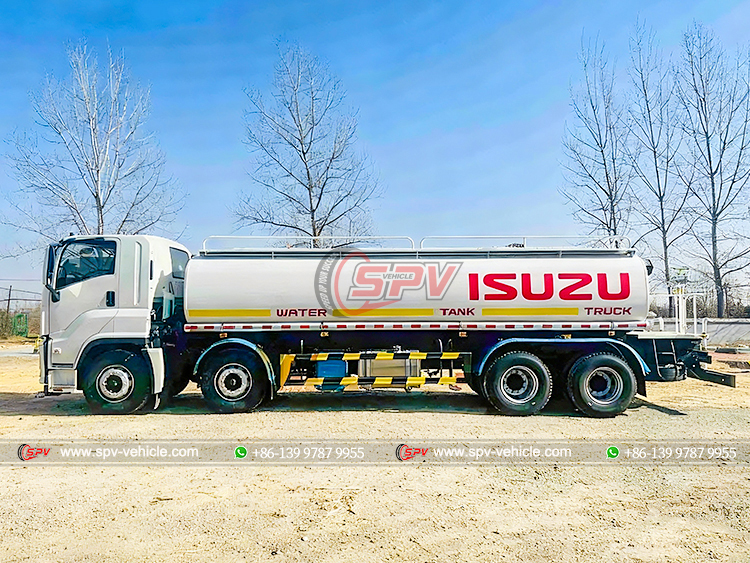

 ISUZU 12 Wheels  Watering Truck - Left Side
ISUZU 12 Wheels  Watering Truck - Left Side

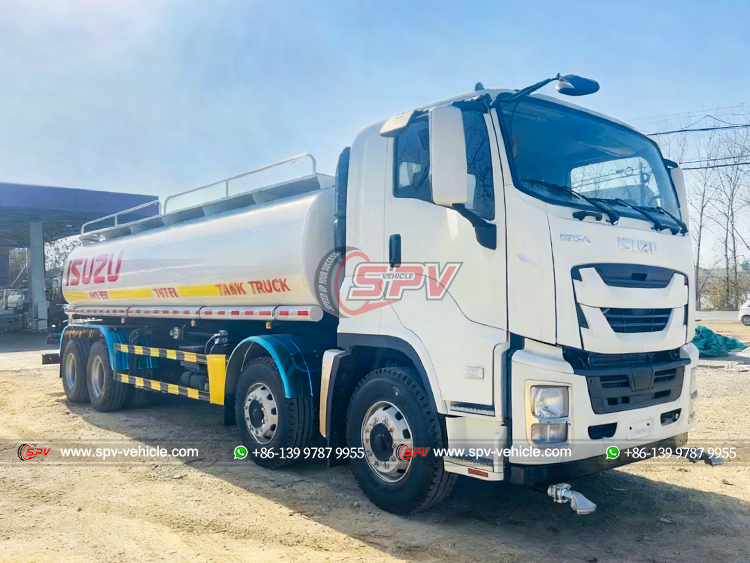

ISUZU Heavy-duty Water Hauling Lorry - Front Right Side
ISUZU Heavy-duty Water Hauling Lorry - Front Right Side

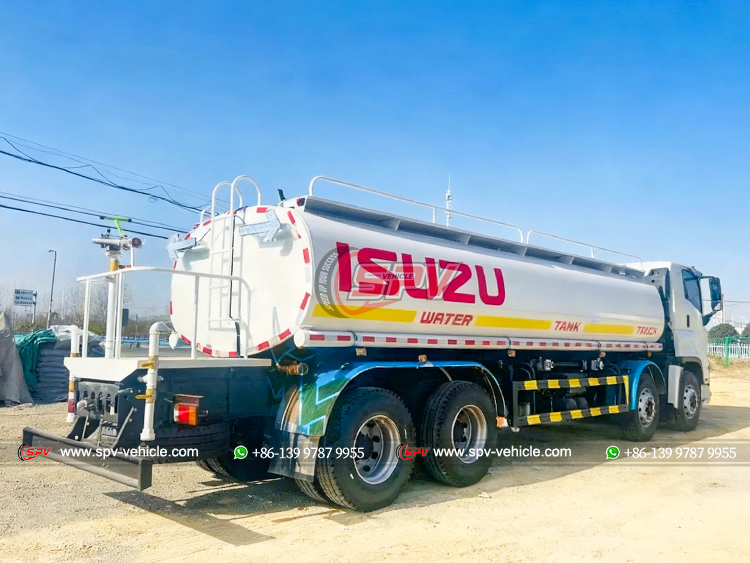

ISUZU 4 Axles Water Spring Truck - Rear Right Side
ISUZU 4 Axles Water Spring Truck - Rear Right Side

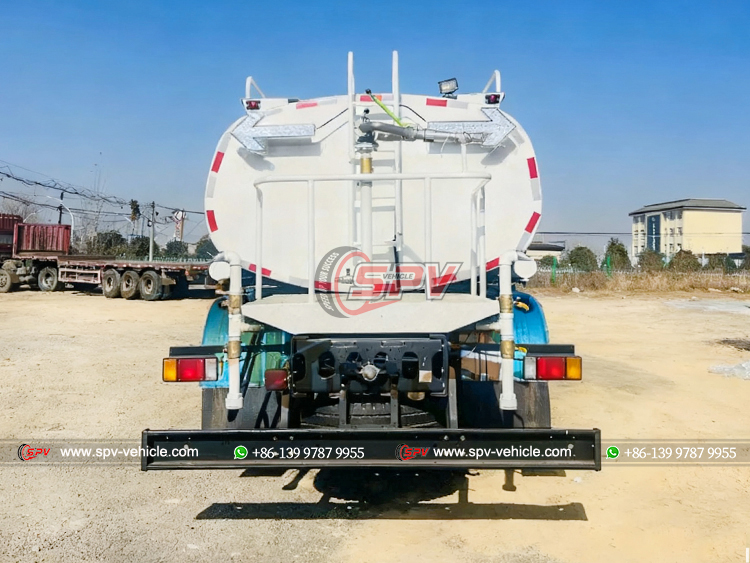

ISUZU 8x4 Water Sprinkler Truck - Rear Side
ISUZU 8x4 Water Sprinkler Truck - Rear Side
