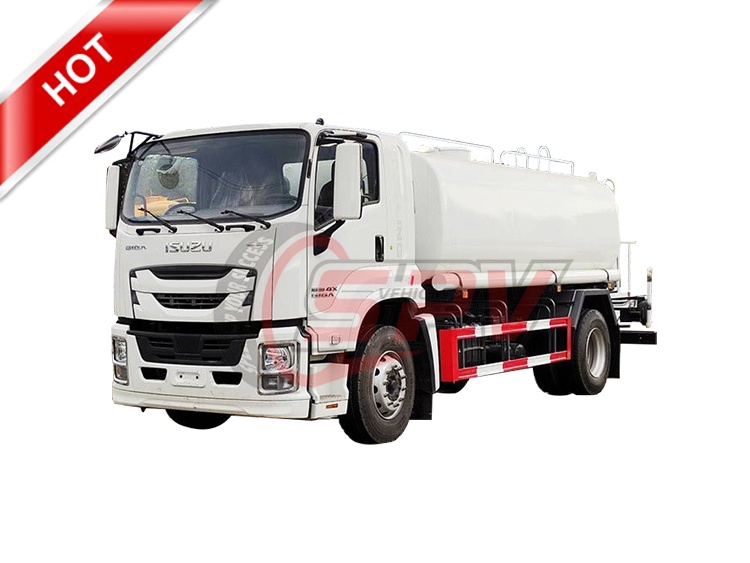

Dust Suppression Truck ISUZU
10 m³ Mist Water Spray Truck
Dust Suppression Truck ISUZU
Function:

Dust suppression truck (also called mist water spary truck, water sprinkler truck, ISUZU greening water sprinkler, water spray truck, ISUZU dust control truck, Multi-functional Dust Suppression Truck ISUZUwater transport truck, reduce dust truck, ISUZU watering truck, mining spray truck, dust reduce truck, ) is a special vehicle for efficient washing operations. It is suitable for washing operations in urban roads, highways, squares, and mine area, etc, as well as municipal and landscaping watering operations.


Water tanker can be equipped with special sprayers to achieve front flush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, called as water sprinkler, water spray truck.
With rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.

Water bowser can be also equipped with pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.

Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Water pump super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life
Specification:
Dust Suppression Truck ISUZU (10,000 litres)
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 8600 * 2500 * 3200 mm
GVW / Kerb Weight 18,000kg / 9,200 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine
Power 205 Hp (151KW)
Displacement 5193 ml
Emission Standard Euro V
Chassis Drive Type 4X2, left hand drive
Transmission ISUZU MLD gear box, 6-speed forward, 1 reverse
No. of Axles 2
Tyre Specification 295/80R22.5
Tyre Number 6 tyres and 1 spare tyre
Max Speed 98 km/h
Paint Metallic paint
Superstructure Tank Capacity 10,000 Litres ( About 2,600gallons)
Tank Material Carbon steel
Flow Speed 1000 litres / min
Lift 90 m
Suction Head 6 m
Hose High quality PVC hose, anti-aging
All other standard accessories: manhole, ladder, inlet, discharge…….
Optional ** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.

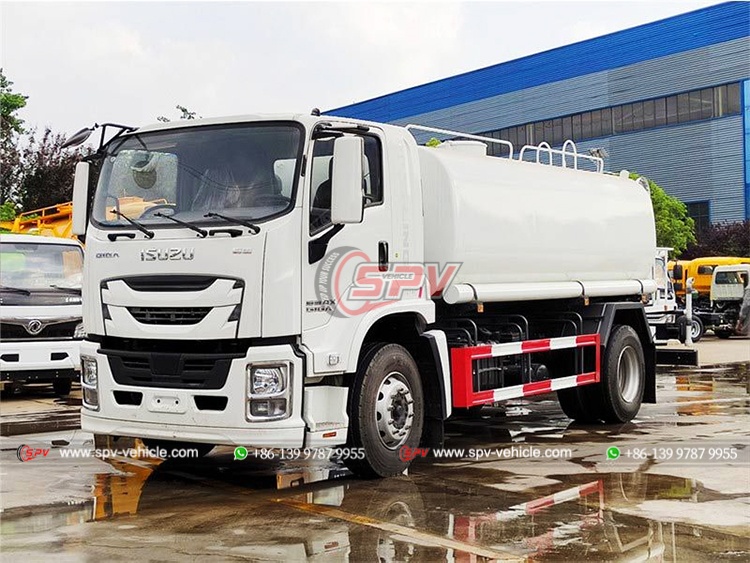

ISUZU GIGA 4X2 Dust Control Truck - Front Left Side
ISUZU GIGA 4X2 Dust Control Truck - Front Left Side

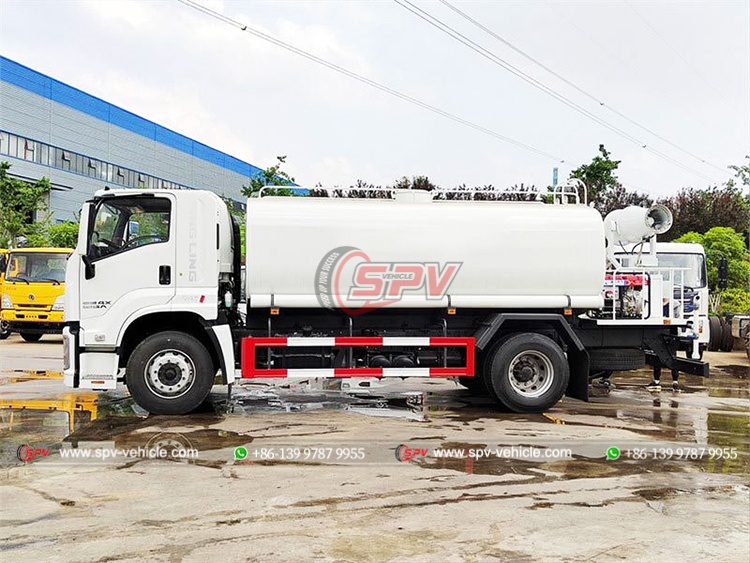

Water Spary Dust Contol Truck - Left Side

Water Spary Dust Contol Truck - Left Side

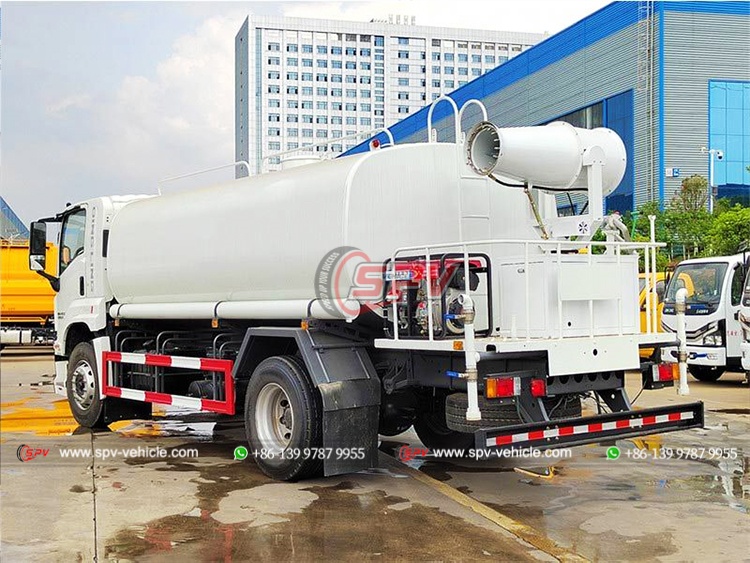

Multi-functional Dust Suppression Truck ISUZU - Rear Left Side

Multi-functional Dust Suppression Truck ISUZU - Rear Left Side

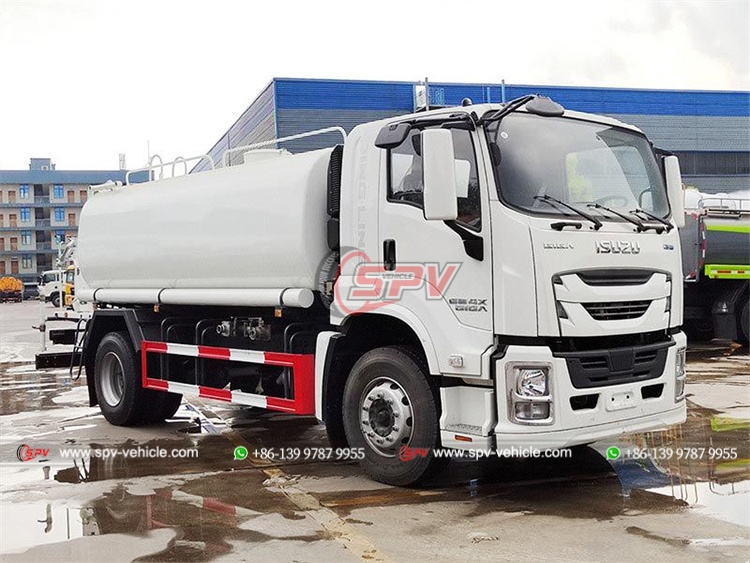

ISUZU Dust Suppression Spaying Truck - Front Right Side
ISUZU Dust Suppression Spaying Truck - Front Right Side

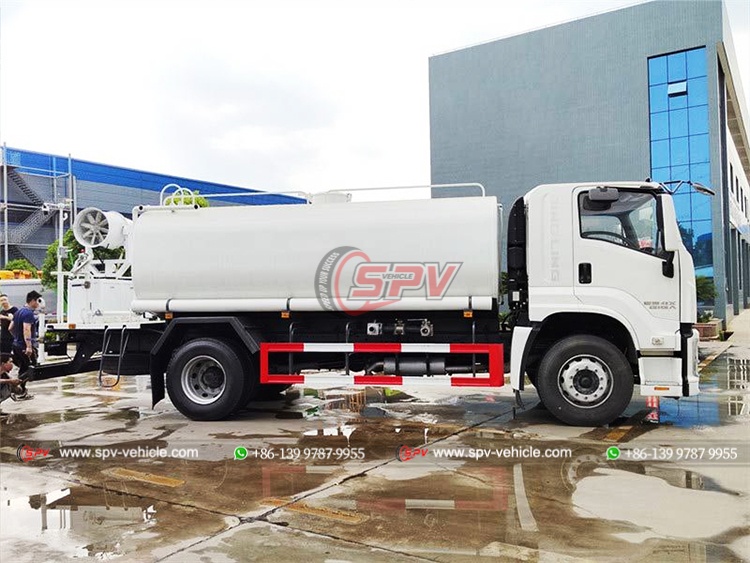

ISUZU High Pressure Spay Dust Control Vehicle - Right Side
ISUZU High Pressure Spay Dust Control Vehicle - Right Side

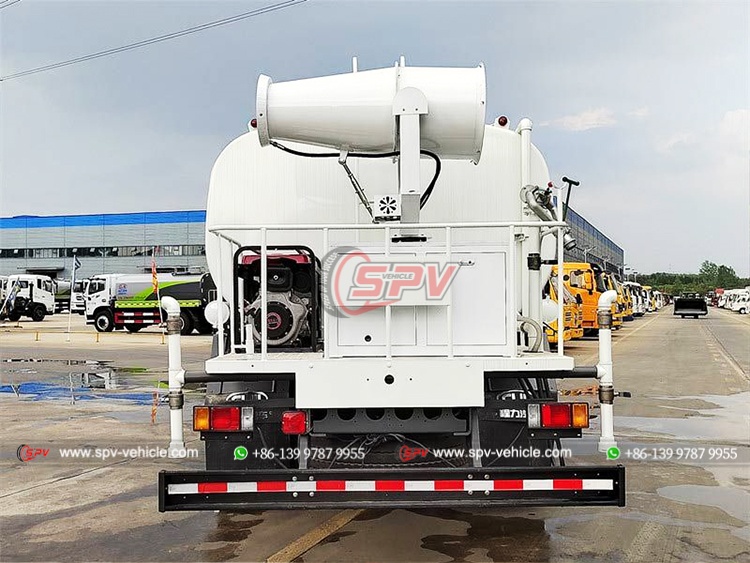

Truck Mounted Dust Suppression Tank - Rear Side
Truck Mounted Dust Suppression Tank - Rear Side

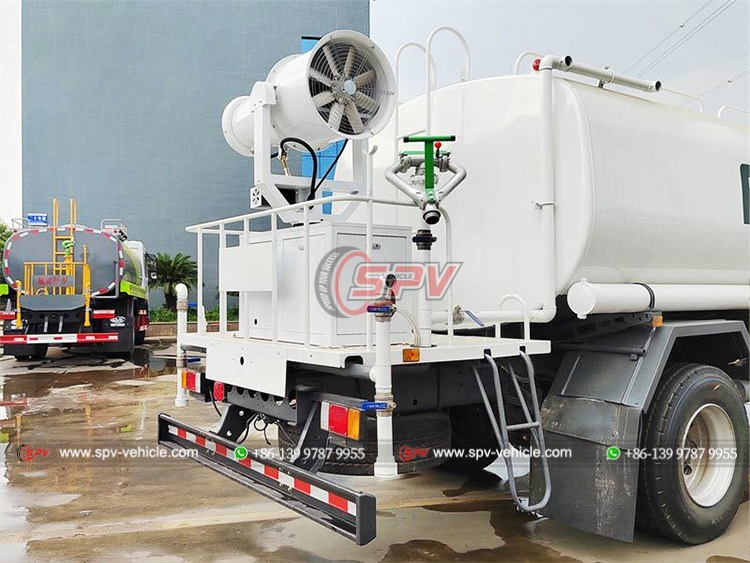

Dust Solution Truck - Fog Cannon Device
Dust Solution Truck - Fog Cannon Device

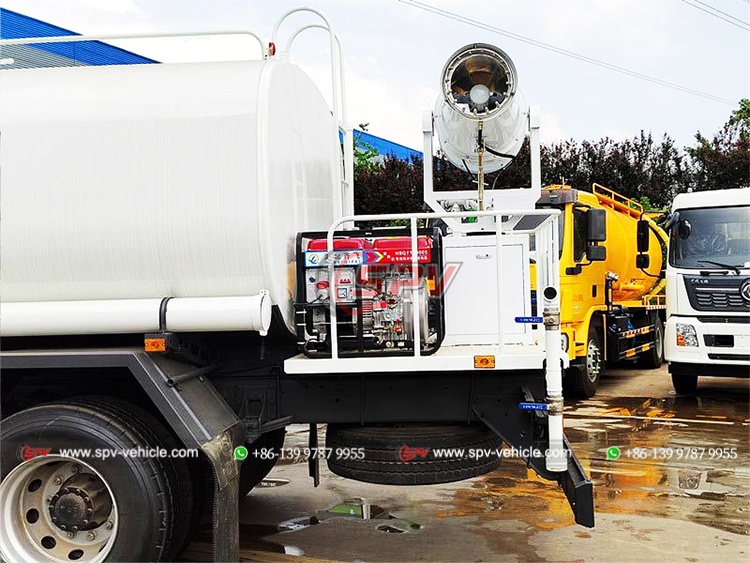

ISUZU 4X2 GIGA Truck Mounted Dust Suppression Unit

ISUZU 4X2 GIGA Truck Mounted Dust Suppression Unit
