ShangHai SPV Special Vehicle Co., Ltd.

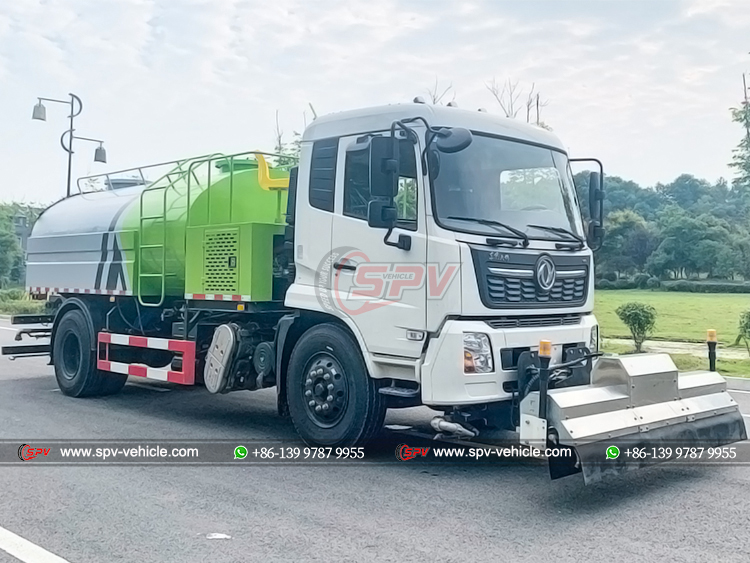

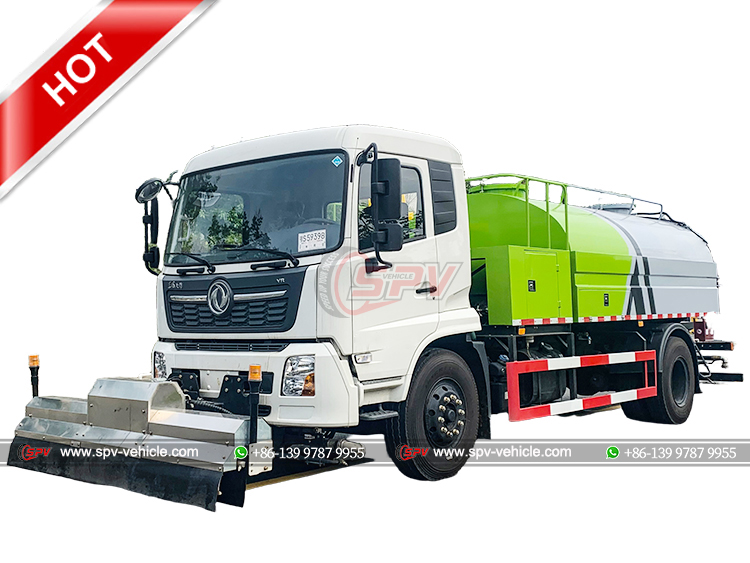

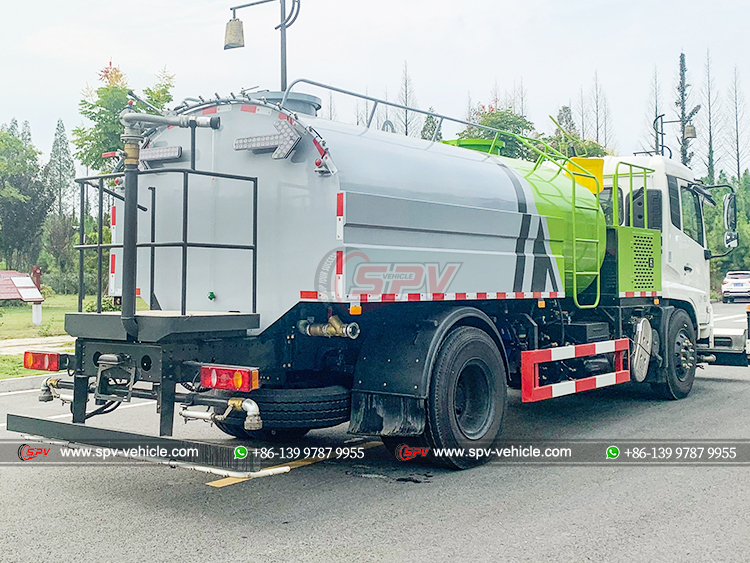

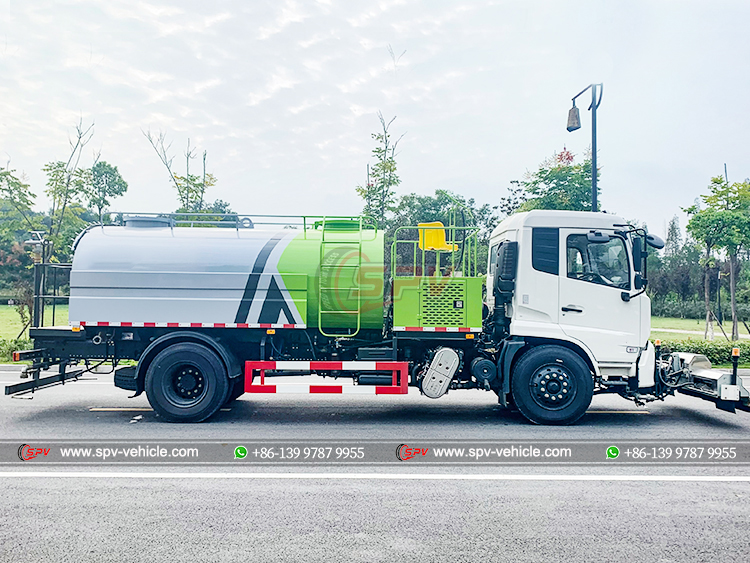

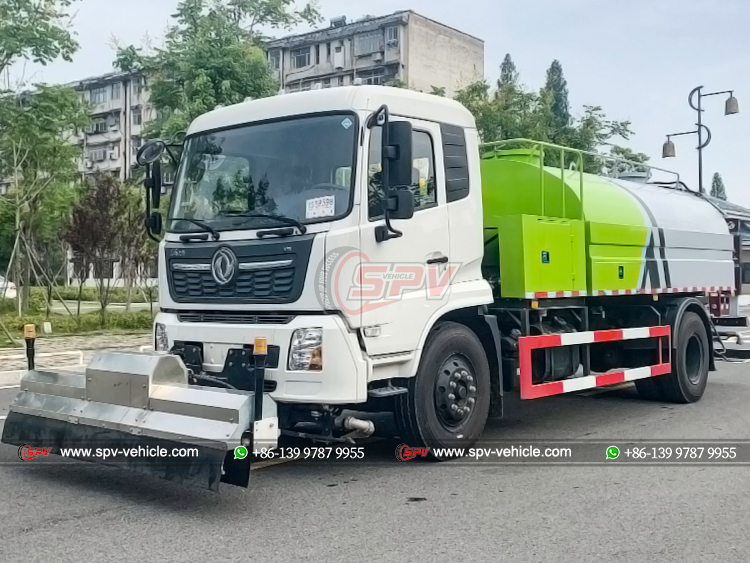

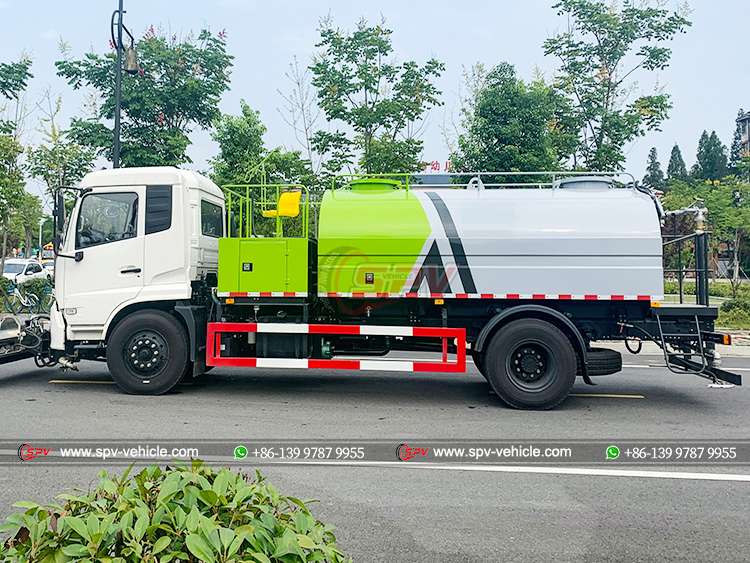

Road jetting truck (also called street washer vehicle, water jet cleaning truck, road maintenance truck, high pressure washing truck, jet cleaning truck, street cleaning vehicle, road cleaning truck, high pressure jetting vehicle) is designed for high pressure washing and sanitation of roads. It’s able to remove the stubborn stuff and reduce dust on the road.

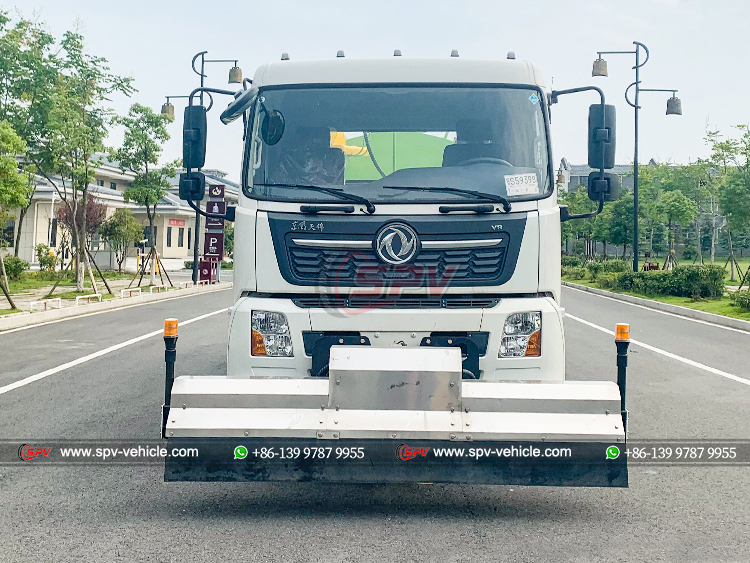

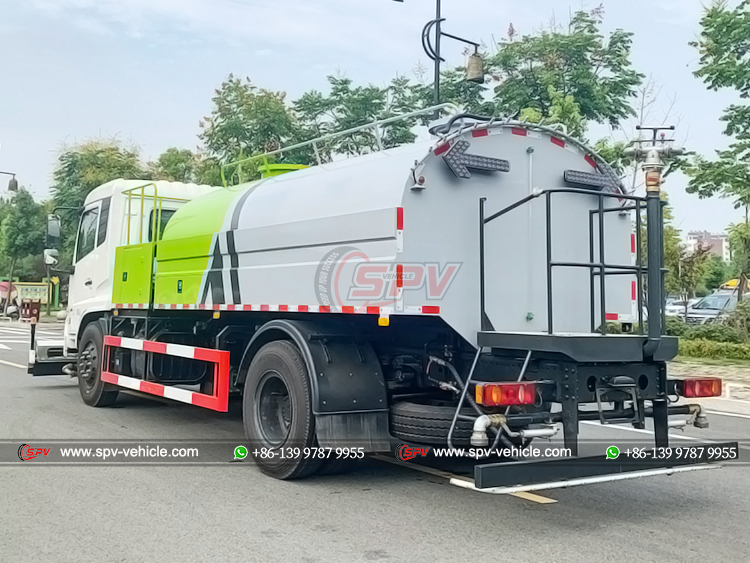

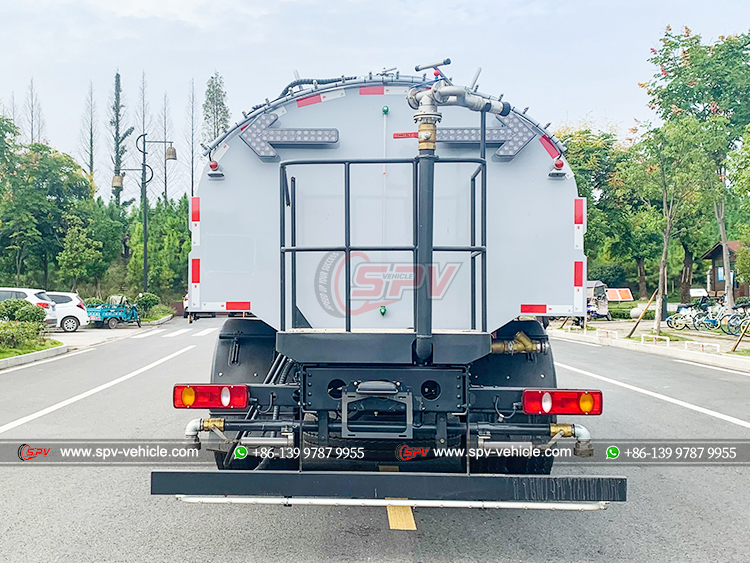

The basic accessories for a road jetting truck are: front stainless steel high pressure washing beam, rear sprinkling nuzzles bar, sprayer, etc.
---- Dongfegn Kingrun chassis - one of the best and oldest chassis brand in China.
---- Cummins engine (American brand), super powerful; reliable performance.
---- Nice shape, compact structure
---- Italy imported high pressure pump, super powerful, efficient jetting
---- Massive, durable, perfect performance
---- Prolonged service life
| Road Jetting Truck Dongfeng (10,000 CBM) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | Dongfeng | |
| Overall Dimension | 8950 * 2500 * 3250 mm | |
| GVW / Kerb Weight | 10,550kg / 6,200 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Cummins engine | |
| Power | 210 Ps (154 KW) | |
| Displacement | 6200 ml | |
| Emission Standard | Euro VI | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 6-speed forward, 1 reverse | |
| No. of Axles | 2 | |
| Tyre Specification | 10.00R20 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Water Tank | 10,000 CBM |
| High Pressure Pump | Imported Italian high pressure plunge pump | |
| Max. Water Pressure | 10 MPa | |
| Water Flow Speed | 120 L/min @ 10MPa | |
| Cleaning Speed | 3-20 km/h | |
| Road Flushing Width | 2.5 - 3.5 m | |
| Deflection Angle | 30°(left and right) | |
| Auxiliary Engine |
Jiangxi engine (ISUZU technology) 77 Hp / 57 KW |
|
| Sprinkling | Another water pump equipped for sprinkling on the road. Sprinkling width: 24 M. Cannon shot: 36 M. | |
| All standard accessories: hose, high pressure hose reel, high pressure water gun, ground hydrant wrench, basic tool kit, English manual…… | ||
| Optional |
** Stainless steel water tank. ** Elevating Platform. ** High cannon. |
|
