ShangHai SPV Special Vehicle Co., Ltd.

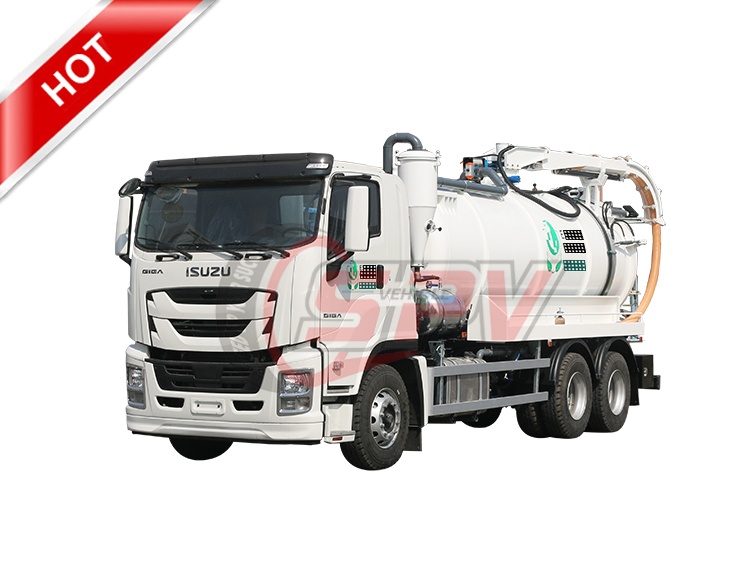

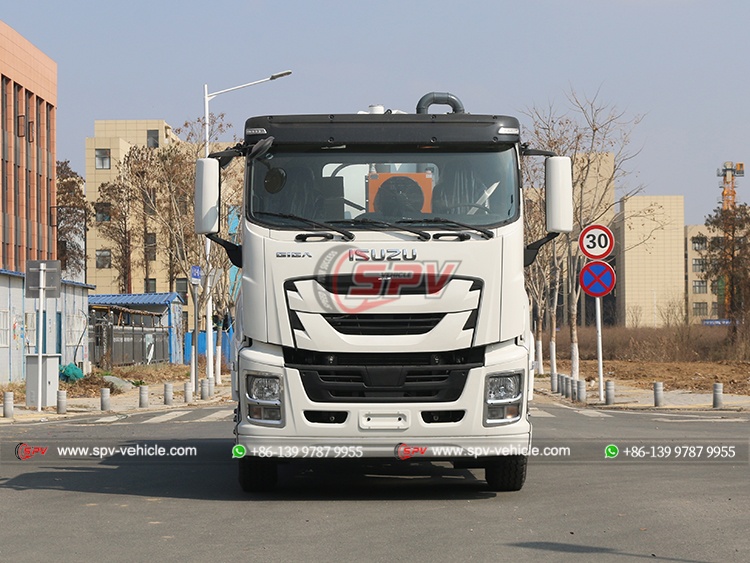

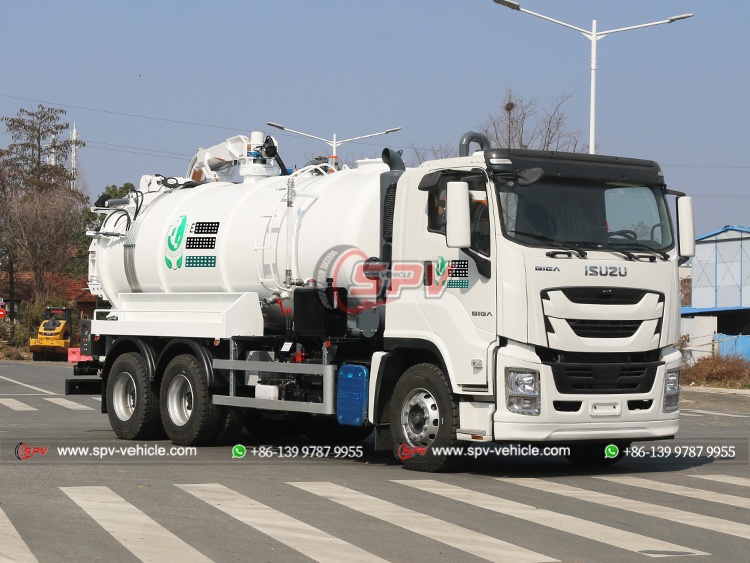

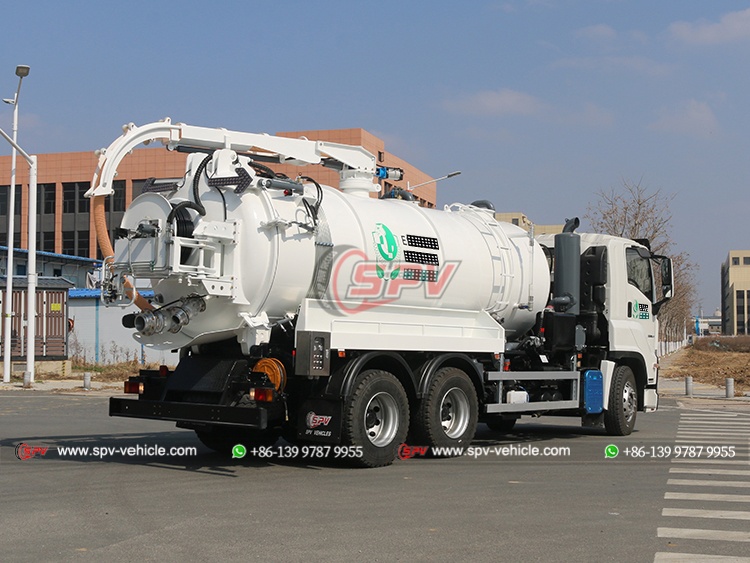

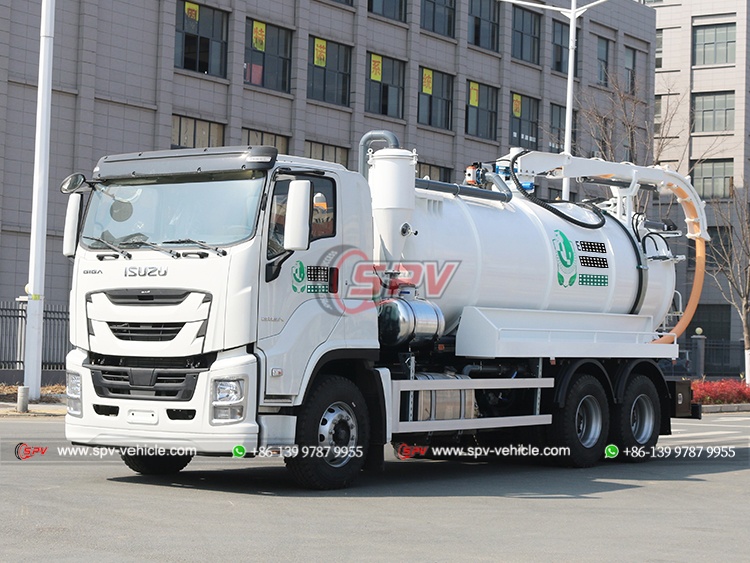

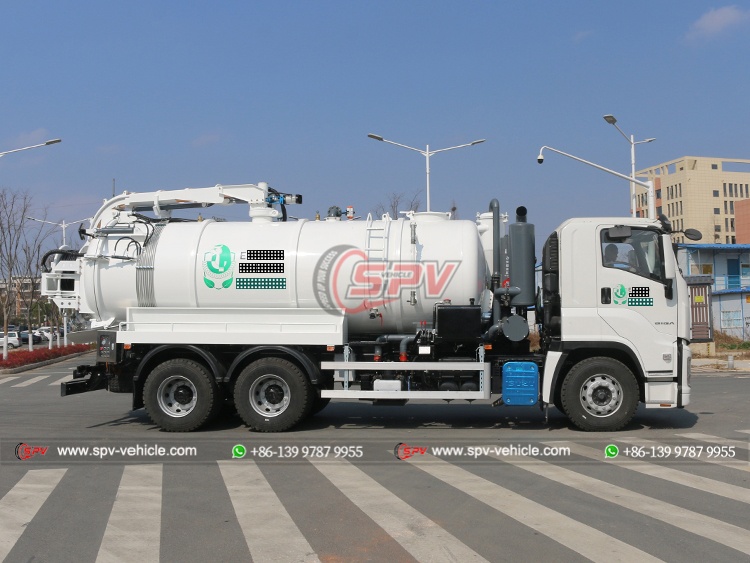

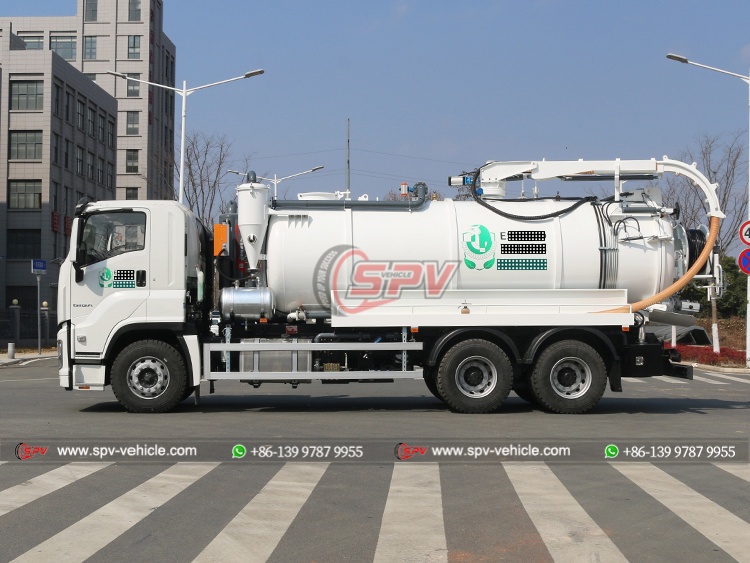

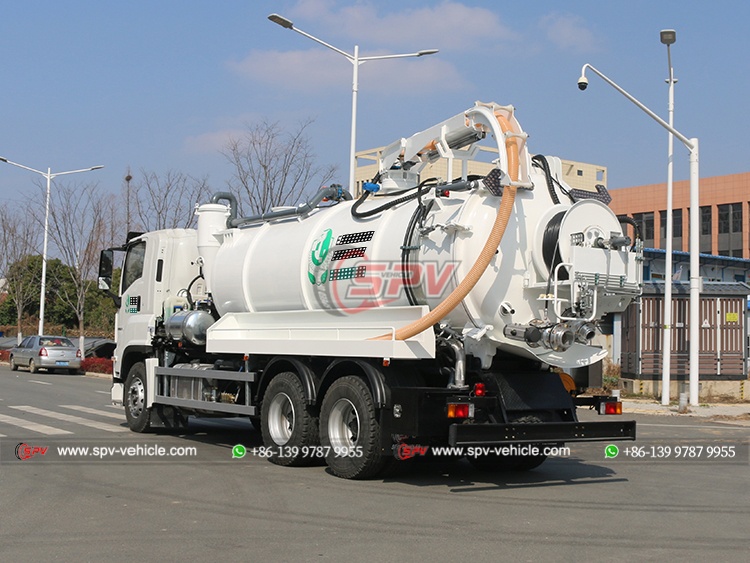

Combination sewer truck (also called as jetting and suction truck, jet vacuum combination truck, combined jet vacuum truck, vacuum and water jetting truck, combined sewer cleaner truck, ISUZU vacuum and jetting vehilce, combined sewer cleaning truck, combined sewage jetting truck, ISUZU jetter and cleaning truck) is a vehicle that is designed to clear any blockage with jetting nozzles moving in sewage pipes under high pressure, and clear sewerage lines by means of a powerful vacuum suction to suck all water plus mud from sewer main hole. It is widely used in environment and sanitation field.The combine superstructure can be mounted on chassis 4x4, 4x2, 6x4, 6x6, etc.
---- ISUZU chassis, famous Japanese brand.
---- ISUZU engine (Chinese top brand), super powerful; reliable performance.
---- Nice shape, compact structure
---- Italy imported high pressure pump, super powerful, efficient jetting
---- Chinese high class vacuum pump, effective and durable
---- Massive, durable, perfect performance
---- Prolonged service life
| Combination Sewer Truck ISUZU (14,000 litres) | |||
| General | Vehicle Brand | SPV | |
| Chassis Brand | ISUZU | ||
| Overall Dimension | 9930 * 2520 * 3740 mm | ||
| GVW / Kerb Weight | 25,000 kg / 15,100 kg | ||
| Cab | Cab Capacity | 2 persons seats with 1 sleeper | |
| Air Conditioner | WIth air conditioner | ||
| Engine | Fuel Type | Diesel | |
| Engine Brand | ISUZU Engine | ||
| Power | 378 Hp (278 KW) | ||
| Displacement | 9839 ml | ||
| Emission Standard | Euro V | ||
| Chassis | Drive Type | 6X4, left hand drive | |
| Transmission | Manual, 12-speed forward, 2 reverse | ||
| Number of Axles | 3 | ||
| Tyre Specification | 295/80R22.5 | ||
| Tyre Number | 10 tyres and 1 spare tyre | ||
| Max Speed | 90 km/h | ||
| Paint | Metallic paint | ||
| Superstructure | Water Tank | Tank Capacity | 2,000 Litres (about 500 gals) |
| Tank Material | Carbon steel | ||
| High Pressure Pump | Chinese high quality PINFL | ||
| Flow Speed | 153 L/min | ||
| High Pressure Hose | 80m | ||
| Nozzles | A cluster of nozzles included | ||
| Sewer Tank | Tank Capacity | 12,000 Litres (about 3200 gals) | |
| Tank Material | Carbon steel | ||
| Vacuum Pump | International top brand | ||
| Flow Rate | 11000 L/min | ||

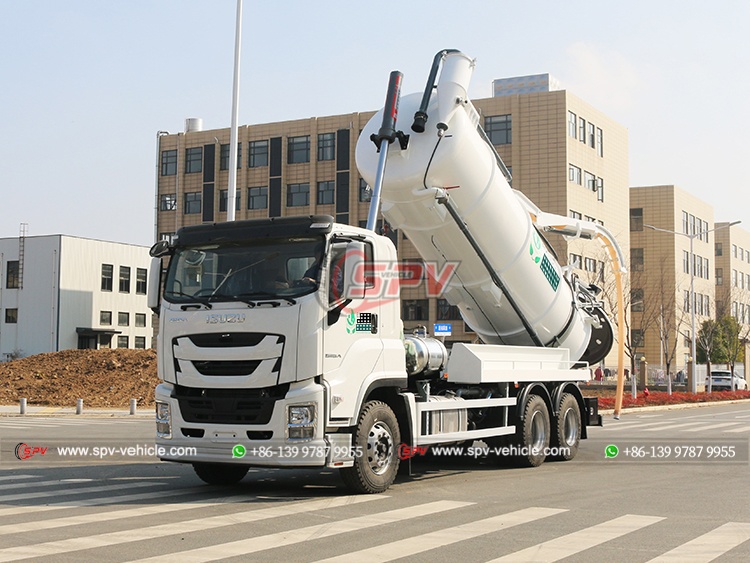

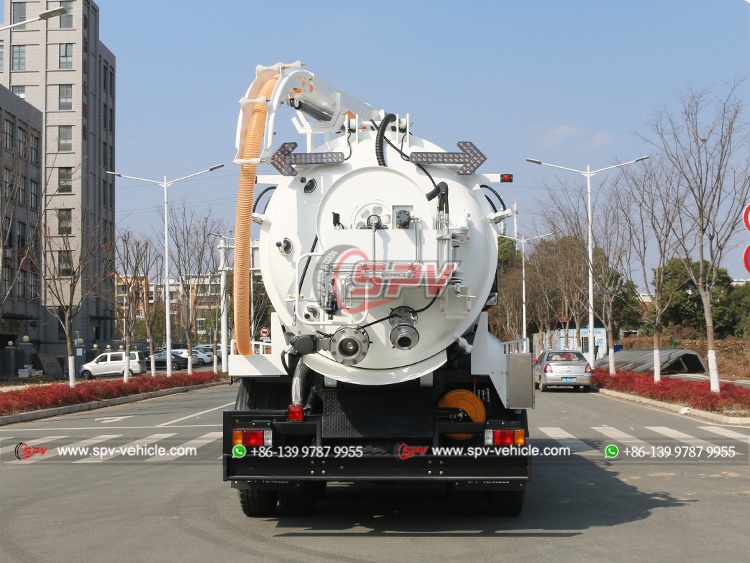

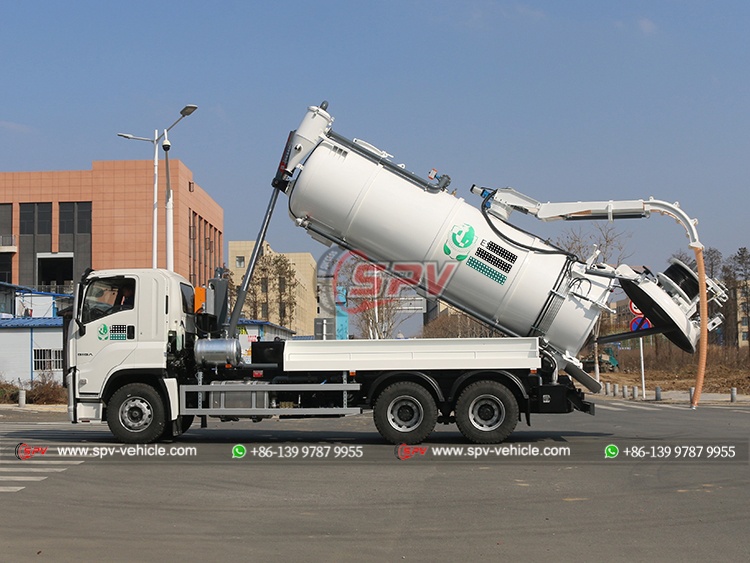

| Rear door can be hydraulic opened for complete discharge of solid stuff. | |||
| All standard accessories: manhole, tool kit, English manual…….. | |||
| Optional |
** Tank material could be stainless steel. ** High pressure hose length could be customized. |
||
