Lubrication Truck Sinotruk
Off-road Lube Truck
Lubrication Truck Sinotruk
Function:

Lubrication truck (also calledservice and lubrication truck, lubrication service truck, lube truck, service and lube truck, mobile workshop and lubrication truck, lube vehicle, truck mounted lube skid, etc.) is used to supply intended lube for trucks and machinery which are not convenient to go to the maintenance workshop or it’s too far away from working place.

Lubrication truck is usually quipped with air compressor, grease pump and lubrication equipments. Due to the rigid substructure and the robust shelter configuration, the lube truck has a good performance going cross country and less limitations for the place of deployment.

Lube truck could used as a mobile workshop if equipped with an on-board power supply, versatile tool sets(mechanic tool kit, electrician tool kit), working floodlight, securing straps, etc as special requirements.

Features:

---- Sinotruk off-road chassis, perfect performance, suits for variety of road situations, even in desert.
---- Sinotruk engine, super powerful; reliable performance.
---- Anti-slip stage board, much strengthened and durable.
---- Variety stage extension methods, could be customized according to requirements.
---- Massive, durable, long service life.



Specification:

Off-road Lubrication Truck Sinotruk (4X4)
General Vehicle Brand SPV
Chassis Brand Sinotruk
Overall Dimension 8200 * 2580 * 3800 mm
GVW / Kerb Weight 16,000kg / 10,600 kg
Cab Cab Capacity 2 persons allowed with 1 sleeper
Air Conditioner Equipped
Engine Fuel Type Diesel
Engine Brand Sinotruk Engine
Power 266 Ps (196 KW)
Displacement 9726 ml
Emission Standard Euro II
Chassis Drive Type 4X4, left hand drive, power assisted steerring
Transmission 10-speed forward, 2 reverse
Wheelbase/No. of axle 4300 mm / 2
Tyre Specification 14.00R20, radial tyres, super wearable
Tyre Number 4 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Van Box Dimension 5500 * 2300 * 2200 mm
Air compressor Flow Rate 3 m3 /min
Working Pressure 0.7 Mpa
Rotating Speed 1000 r/min
Grease Pump No. of Grease Pump 6 units
Brand / Model Taiwan Jiulong / A75-G
Air Source Pressure / Capacity 4-9 bar
Air Output Pressure 180-405 bar
Output Capacity 16.5 g/s
Grease Hose Reel 6 units / Length: 10 meteres
All standard accessories: basic tool kit, English manual……
Optional ** On-board power supply.
** Versatile tool sets.
** Working floodlight.

Off-road Lubrication Truck Sinotruk - LF

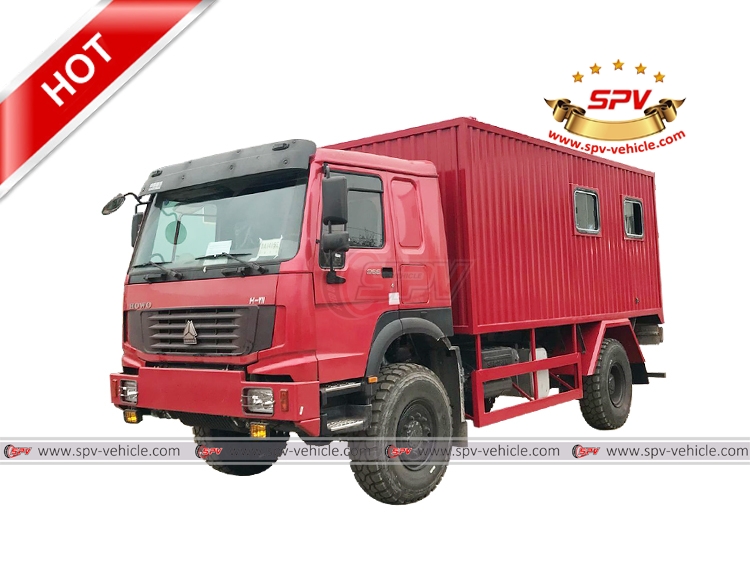

Photo 1: Left front view of Off-road Lubrication Truck
Off-road Lubrication Truck Sinotruk - RF
Photo 2: Right front view of Off-road Lubrication Truck

Lubrication Truck Sinotruk - Detail 01

Photo 3: Right back view of Off-road Lubrication Truck
Off-road Lubrication Truck Sinotruk - B
Photo 4: Back view of Off-road Lubrication Truck

Off-road Lubrication Truck Sinotruk - Inside
Photo 5: Inside view of Off-road Lubrication Truck

Off-road Lubrication Truck Sinotruk - Air Compressor
Photo 6: Off-road Lubrication Truck -  Air Compressor

Off-road Lubrication Truck Sinotruk - Grease Reel
Photo 7: Off-road Lubrication Truck -  Grease hose reel

Off-road Lubrication Truck Sinotruk - Manual
Photo 8: Off-road Lubrication Truck -  English Manual

Off-road Lubrication Truck Sinotruk - Loading into RORO Vessel

Photo 9: Off-road Lubrication Truck -  Loading into RORO Vessel
