Swing Arm Garbage Truck ISUZU
4 m³ Refuse Collection Truck
Swing Arm Garbage Truck ISUZU
Function:

Swing arm garbage truck (also called swing arm trash collection truck, garbage compactor truck, trash compactor, refuse collection truck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle) is designed to collect and transport municipal solid waste.

Garbage compactor is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.

The operation system could be manual or electrical control.


Features:
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- High quality hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life
Specification:
Similar Key Words:  ISUZU garbage compactor, trash compactor, waste compactor, refuse compactor, compactor truck, rear loader, dustbin lorry, garbage compactor vehicles, garbage compacting truck, refuse collector, waste compactor, waste compactor truck, garbage compactor truck, refuse collection truck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry, waste collection vehicle

  Swing Arm Garbage Truck ISUZU ( 4 m³)
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 6500 * 2100 * 2600 mm
GVW / Kerb Weight 7,300 kg / 4,900 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner Equipped
Engine Fuel Type Diesel
Engine Brand ISUZU engine
Power 98Hp (72 KW)
Displacement 2771 ml
Emission Standard Euro IV
Chassis Drive Type 4X2, left hand drive
Transmission ISUZU gear box, 5 speed forward, 1 revserse
No. of axle 2
Tyre Specification 7.00R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 105 km/h
Paint Metallic paint
Superstructure Waste Box Capacity 4m³
Waste Box Material Carbon steel
All other standard accessories: Tool kit, English manual……
Optional  **Various rear loading mechanism: container lifting; hopper flip; skip loader…
 **Electronic operating system

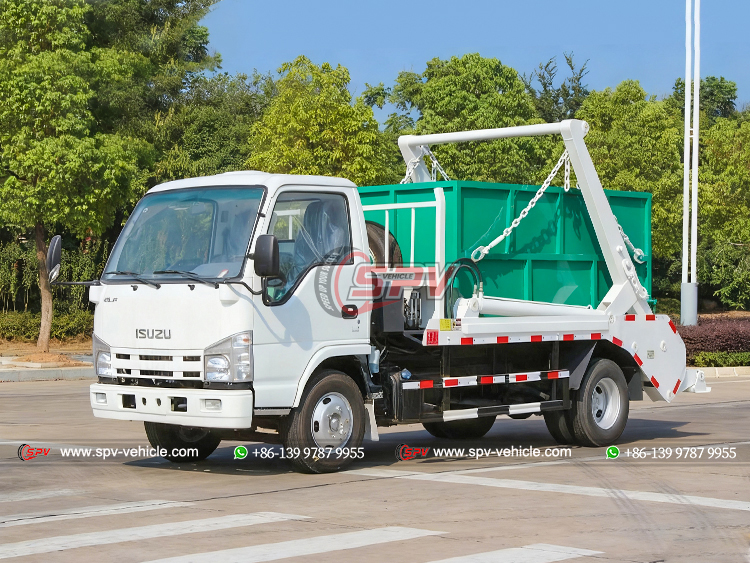

ISUZU 100P Swing Arm Soild Waste Truck - Front Left Side
ISUZU 100P Swing Arm Soild Waste Truck - Front Left Side

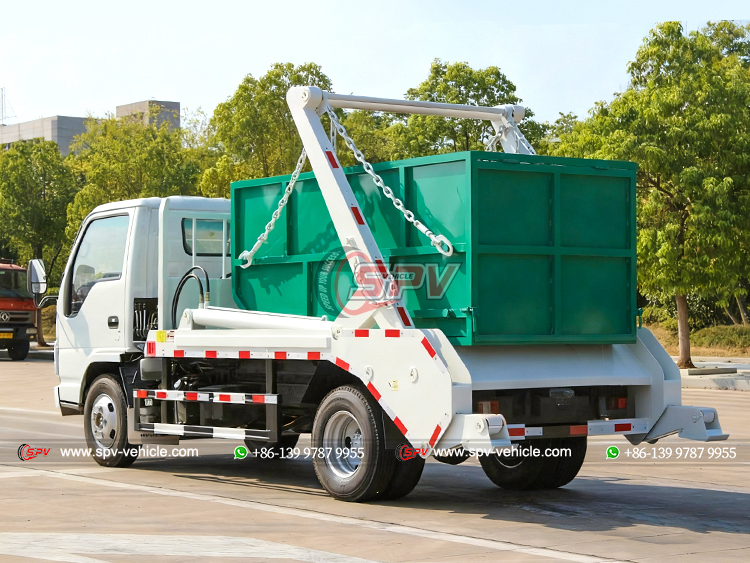

ISUZU 100P Swing Arm Wate Disposal Truck - Rear Left Side

ISUZU 100P Swing Arm Wate Disposal Truck - Rear Left Side

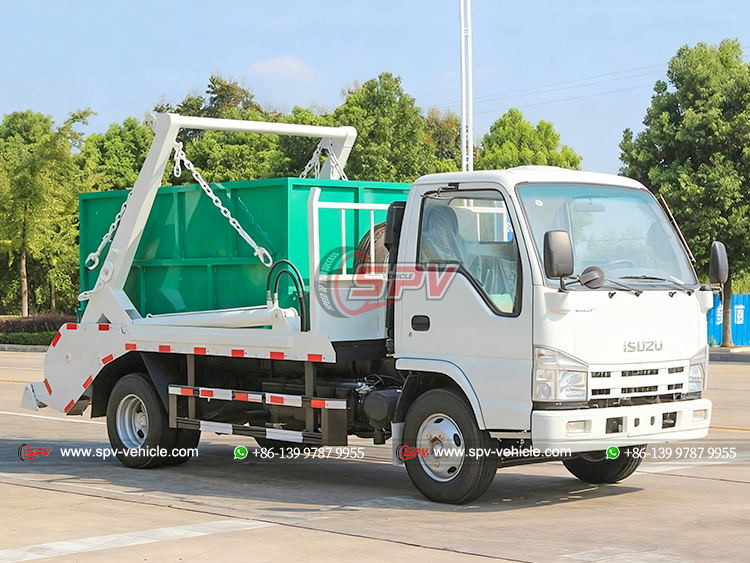

ISUZU 100 Swing Garbage Collection Wagon - Front Right Side
ISUZU 100 Swing Garbage Collection Wagon - Front Right Side

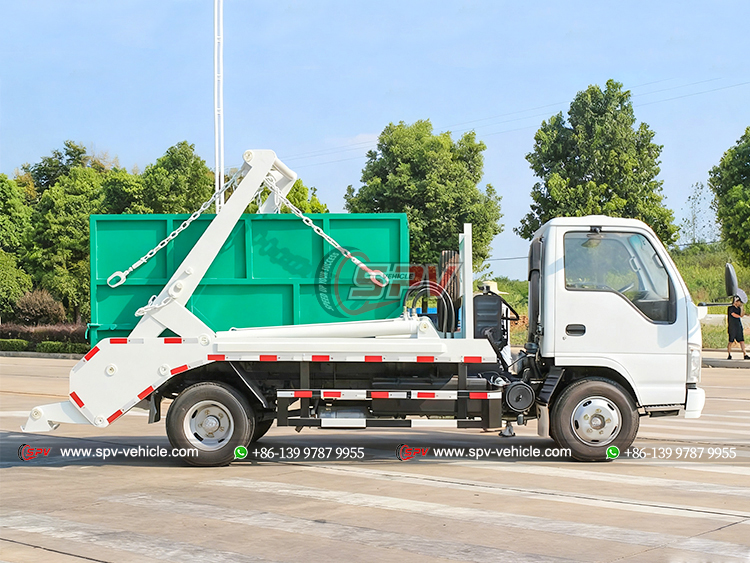

ISUZU Light-Duty Swing Arm Garbage Removal Truck - Right Side
ISUZU Light-Duty Swing Arm Garbage Removal Truck - Right Side

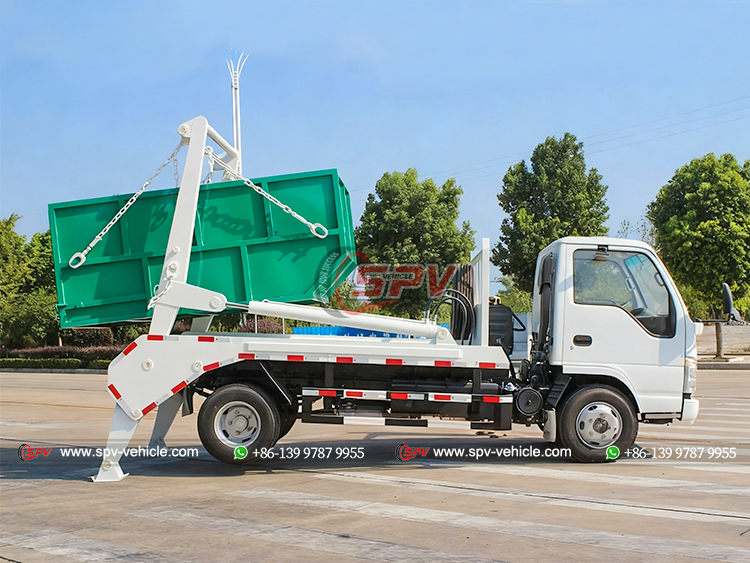

ISUZU 100P Truck Mounted Swing Dustbin Box - Right Side
ISUZU 100P Truck Mounted Swing Dustbin Box - Right Side

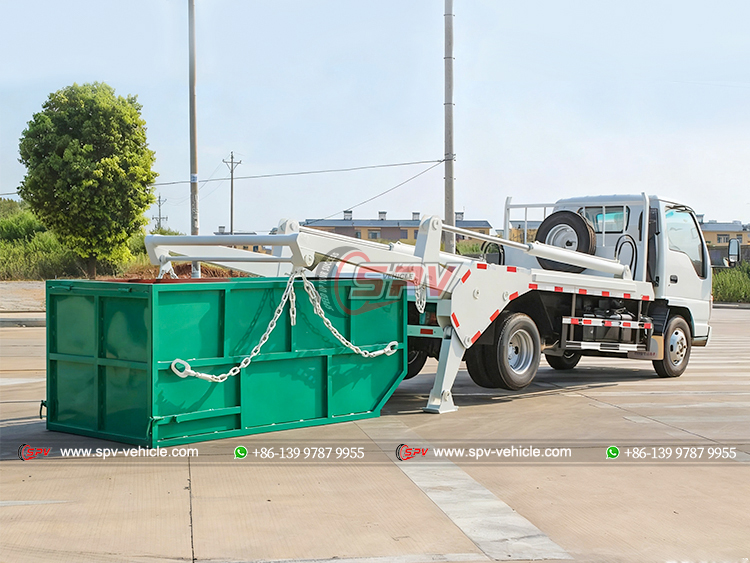

ISUZU 100P Swing Arm Junk Removal Lorry - Rear Right Side
ISUZU 100P Swing Arm Junk Removal Lorry - Rear Right Side
