ShangHai SPV Special Vehicle Co., Ltd.

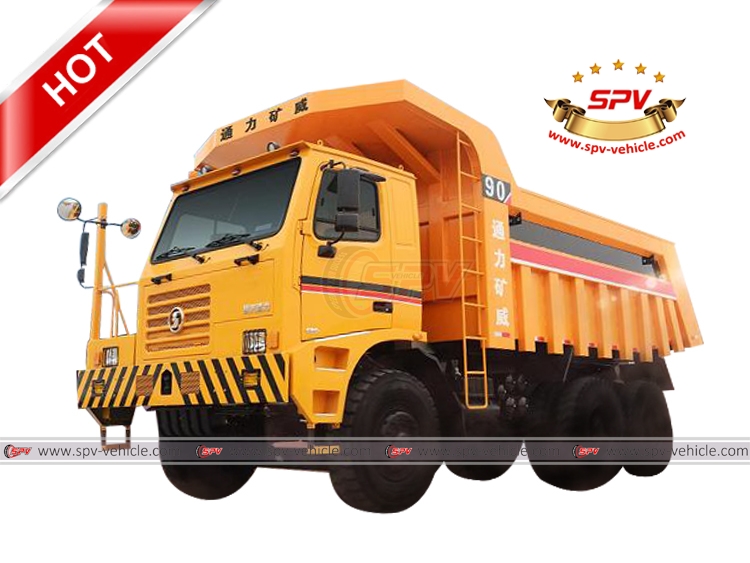

Mine dump truck (also called mine dump truck, mining tipper truck, mining dump truck, mine dumper, mine tipper, tipping truck, dumping truck, etc.) is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front. Or hinged at side with hydraulic pistons to lift the side.
---- SHACMAN chassis ensures perfect driving performance.
---- CUMMINS engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Excellent Chinese brand hydraulic piston
---- Strong, durable, perfect performance
---- Prolonged service life
| Mining Tipper Truck SHACMAN (Volume: 35 m³ / 80 Tons) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | SHACMAN | |
| Overall Dimension | 8970 * 3504 * 4250 mm | |
| GVW / Kerb Weight | 80,000 kg / 28,000 kg | |
| Cab | Cab Capacity | Offset mining cabin, 1 person's seat |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | CUMMINS Engine | |
| Power | 420 Hp (308 KW) | |
| Displacement | 11000 ml | |
| Engine Max Torque | 2010 Nm/rpm @1200 rpm | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 6X4, left hand drive |
| Transmission | FAST, 10-speed forward, 2 reverse | |
| Wheelbase/No. of axle | 3850+1560 mm / 3 | |
| Front Axle | 19 Tons | |
| Rear Axle | 35 Tons, Driving axle | |
| Tyre Specification | 14.00-25 | |
| Tyre Number | 10 tyres | |
| Max Speed | 40 km/h | |
| Fuel Tank | Aluminium alloy, 400 L | |
| Paint | Metallic paint | |
| Superstructure | Box Volume | 30 m³ / 70 Tons |
| Box Inner Dimension | 5800 * 3200 * 1800 mm | |
| Box Thickness |
Side board: 10 mm Floor board: 14 mm |
|
| Hydraulic System | Multistage fromt lifting hydraulic system | |
| All other standard accessories: Tool kit, English manual | ||
| Optional |
** Box thickness could be nominated. ** Box height could be nominated. ** Tip way: back or side. |
|
