Tipper (also called dumptruck, tipper truck, dump tipper, side-turn tipper, dump truck tipping, tipper and lorry, dumper, dump tipper, tip truck, side-turn tipper, dump truck tipping, tipper and lorry, dumper, tipper lorry) is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.
A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front. Or hinged at side with hydraulic pistons to lift the side.
---- Dongfeng chassis ensures perfect driving performance.
---- Cummins engine, American brand, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Excellent Chinese brand hydraulic piston
---- Massive, durable, perfect performance
---- Prolonged service life

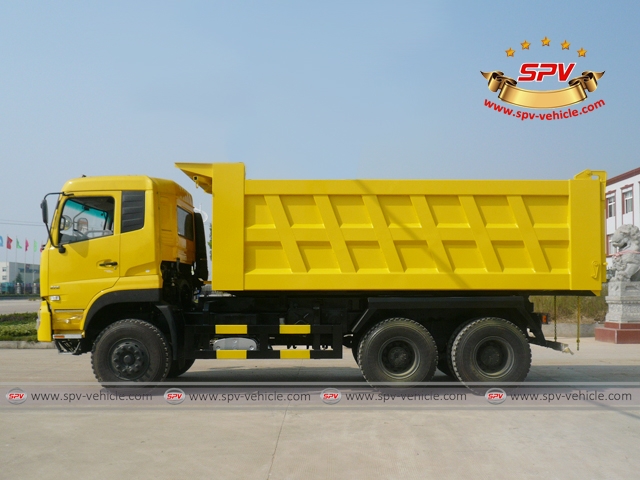

| Dump truck Dongfeng (Volume: 16 m³ ) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | Dongfeng | |
| Overall Dimension | 8400*2500*3450 mm | |
| GVW / Kerb Weight | 20,300 kg / 10,130kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Cummins engine | |
| Power | 270 Hp (198KW) | |
| Displacement | 8900 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 6X4, left hand drive |
| Transmission | 9-speed front, 1 reverse | |
| Wheelbase/No. of axle | 3800+1350 mm / 3 | |
| Tyre Specification | 10.00-20 | |
| Tyre Number | 10 tyres and 1 spare tyre | |
| Max Speed | 85km/h | |
| Paint | Metallic paint | |
| Superstructure | Box Dimension | 5800*2300*1200 mm |
| Bottom Board Thickness | 8 mm | |
| Side Board Thickness | 6 mm | |
| Hydraulic Cylinder | Of Hyva or Chinese reliable brand | |
| All other standard accessories: Tool kit, English manual | ||
| Optional |
** Box thickness could be changed. ** Box height could be nominated. ** Tip way: back or side. |
|
