ShangHai SPV Special Vehicle Co., Ltd.

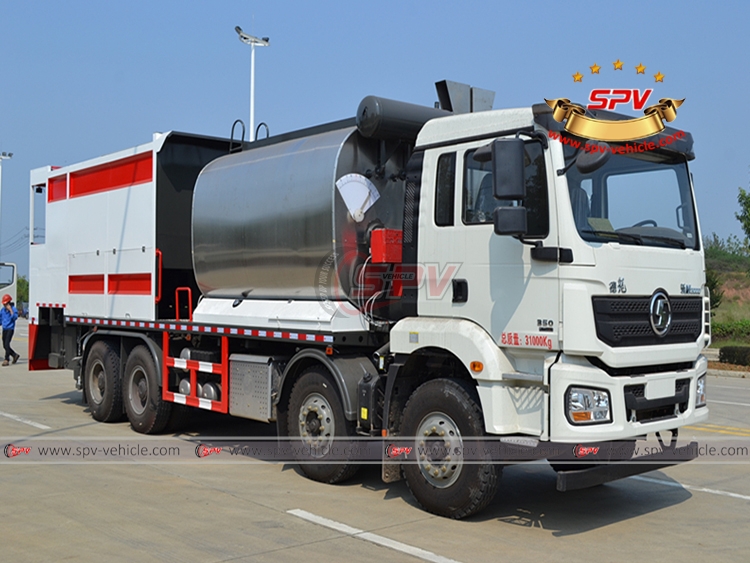

| Asphalt Synchronous Chip Sealer Truck Shacman | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | Shacman | |
| Overall Dimension | 11750 * 2550 * 3720 mm | |
| GVW / Kerb Weight | 31,000 kg / 22075 kg | |
| Chipping Size | 5-25 mm | |
| Max. Sealing Width | 4000 mm | |
| Asphalt Tank Capacity | 9000 L | |
| Aggregate Bin Capacity | 14000 L | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Weichai engine | |
| Power | 375Hp (274 KW) | |
| Displacement | 9500 ml | |
| Emission Standard | Euro II | |
| Chassis | Drive Type | 8X4, left or right hand drive |
| Transmission | 10-speed forward, 2 reverse | |
| Wheelbase/No. of axle | 1800+3975+1400 / 4 | |
| Tyre Specification | 12.00R20 | |
| Tyre Number | 12 tyres and 1 spare tyre | |
| Max Speed | 80 km/h | |
| Paint | Metallic paint | |
| Asphalt Tank | Tank Capacity | 9 m3 |
| Control | Computer control | |
| Asphalt Pump | Imported brand | |
| Blender Hydraulic Motor | Imported brand | |
| Burner | Riello / 2 sets | |
| Spraying Nozzle | 34 pcs | |
| Hand Spraying System | Equipped | |
| Spraying Rate | 0.2-4 kg/m2 | |
| Max. Sealing Width | 4000 mm | |
| Aggregate Bin | Tank Capacity | 14 m3 |
| Chipping Size | 5-25 mm | |
| Chipping Spreader | Equipped | |
| Cylinders | 16 sets | |
| All other standard accessories: Tool kit, English manual……. | ||
| Optional | ** Asphalt Pump/ Hydraulic Pump/ Burner could be appoint brand | |
