Quick Attack Fire Truck JMC
250L Light Rescue Apparatus
Quick Attack Fire Truck JMC
Function:

Quick attack fire truck (also called light rescue apparatus, water tender, fire engine, fire appliance, fire fighting truck, fire service truck, fire truck tanker, fire fighting equipment) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly. Because of the mini type and 4X4 drive, it ensures fireman arrive fire place at the first time even though the tough road or the narrow alley that heavy fire trucks are not available.

JMC quick attack fire truck is equipped with the newest technology - high pressure water moist system. Which consists with HONDA engine and Italy brand fire pump. This system could pressure water or water-foam solution into very tiny mist for better permeating the fire object. It will use much less water and foam but achieve better firefighting effect.

There is also a telescopic rotary moving light set on the top of the vehicle, which could provide wide-range brightness at night.

Features:

---- JMC chassis, perfect performance.
---- JMC engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.
---- High Efficiency & Water Saving - It is equipped with high pressure pump, very efficient, 200 ~300 times than  basic  ones;  It only consumes 1%~3% water compared to basic fire trucks,.
---- Atomized drops vaporize immediatlely upon fire, absorb lots of heat, cool the burning surface quickly. After vaorization from drop to steam, it covers burning area, block heat and air, push out the fire due to oxygen deficit.
---- Clean fog and toxic air, block heat radiation, protect  fire crews.
---- Halogen lamp, strong light, wide lighting, quick action,  telescopic, horizontal, vertical rotatable.
---- Mini truck, good trafficability, safe, easy operation and maintenance.
----- Ideal for fire control and fire pushing out at beginning of fire.




Specification:


Quick Attack Fire Truck (250 litres)
General Vehicle Brand SPV
Chassis Brand JMC
Overall Dimension 5000 * 1900 * 1800 mm
GVW / Kerb Weight 2,400 kg / 1,800 kg
Cab Cab Capacity 2+3 persons allowed
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand Mitsubishi engine
Power 280 Ps (206 KW)
Displacement 2771 ml
Emission Standard Euro I
Chassis Drive Type 6X4, left hand drive
Wheelbase/No. of axle 3025 mm / 2
Tyre Specification 11.00-20
Tyre Number 4 tyres and 1 spare tyre
Max Speed 120 km/h
Paint Metallic paint
Superstructure Water Capacity 250 Litres ( About 66 gallons)
Foam Capacity 15 Litres (About 4 gallons)
Auxiliary Engine HONDA GX160
Power 5.5 HP / 3600 rpm / min
Fire Pump BROOWE (Italy Brand)
Shot for water stream 15-20 m
Shot for atomized foam 12 m
Telescopic Rotary  Moving Light Power 300 w
Max Height 4600 mm
Horizontal & Vertical Swing Angle 0-340°
Hose High quality, wire strengthened hose, 50m
Equipped with wireless remote control for the move light, distance within 30 m
All standard accessories: fireman's axe, crowbar, nail puller, rubber hammer, tool kit, English manual, etc.

Similar Key Words: light rescue apparatus, water tender, fire engine, fire appliance, fire fighting truck, fire service truck, fire truck tanker, water tank fire truck







 Telescopic rotary moving light (300 W, max height: 4600 mm)

Fire Vehicle-JMC

Quick attack fire fight truck JMC

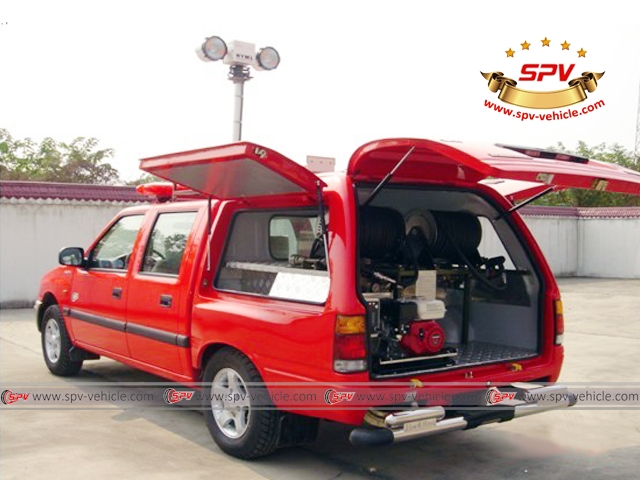

 High pressure water moist system (with HONDA engine and Italy imported brand fire pump)
