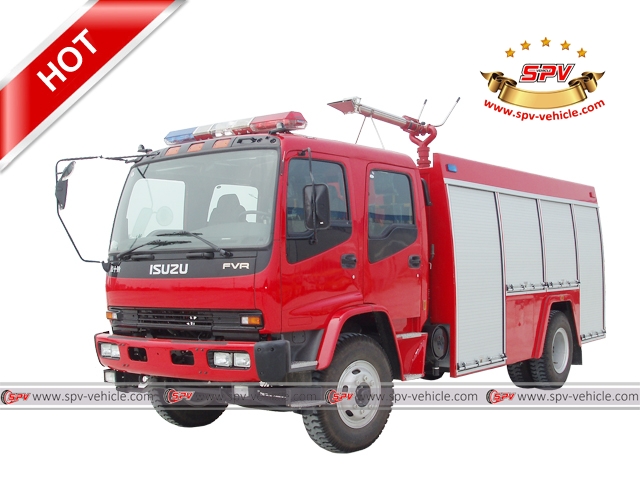

Fire Appliance Truck ISUZU FVR
5 m³ Water Tank and 2m³ Foam Tank
Fire Appliance Truck ISUZU FVR
Function:

Fire appliance truck (also called fire fighting engine, multifunction fire vehicle, fire fighting equipment, fire fighting foam tanker, foam fire truck, fire-extinguishing foam tanker) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire fighting truck can be divided into many types:

1. According to vehicle size, there are mini fire fighting truck, light fire fighting truck, medium fire fighting truck, heavy-duty fire fighting truck.
2. According to chassis drive type, there are 4X2 fire fighting truck, 6X4 fire fighting truck, 8X4 fire fighting truck, and off-road type 4X4, 6X6 fire fighting truck.
3. According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck,  Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, etc.
4. According to fire agent,  there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck.

Features:

---- ISUZU FVR chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.

---- 7,000 Litres fire truck carries 5,000 litres water tank and 2,000 litres foam tank

Specification:

Fire Appliance Truck ISUZU (7,000 Litres)
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 8800 * 2500 * 3800 mm
GVW / Kerb Weight 16,950kg / 8,900kg
Cab Cab Capacity 2+4 persons allowed
Air Conditioner With air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU engine, 6HK1-TCNG40
Power 240 Ps (177 KW)
Displacement 7790 ml
Emission Standard Euro IV
Chassis Drive Type 4X2, left hand drive
Transmission ISUZU MLD gear box, 6-speed forward, 1 reverse
Wheelbase/No. of axle 4700 mm / 2
Tyre Specification 10.00-20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 85 km/h
Paint Metallic paint
Superstructure Water Capacity 5,000 Litres (About 1,300 gallons)
Foam Capacity 2,000 Litres (About 500 gallons)
Tank Material Carbon steel
Fire Pump 60 L/s ( Pressure: 1.0 M Pa)
Flow Speed 48 L/s ( Pressure: 1.0 M Pa)
Shot Water ≥ 60 m  &  Foam ≥ 55 m
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
A series of fire implement tools: suction hose, intake screen, water segregator,
siamese (water combiner), fire hose, hose bandage, etc........

Details as per below accessory list.
Optional Aluminium Alloy Extendable Ladder 9M - 12M, Storz Coupling, British Coupling,
etc......
