Telescopic Platform Truck (also called telescopic boom trucks, telescopic boom lifts, telescopic aerial lift , telescopic aerial truck, telescopic working platform, articulated telescopic aerial truck, articulated boom lift, articulated basket platform etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

SPV telescopic platform trucks are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.


---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Working cage can be made of steel structure or reinforced fiberglass (insulated cage);
---- Working cage can rotate 90 degree in left and right;
---- 4pcs outriggers and front support improve operation stability and safety;
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
---- Wireless remote control system is available.

Similar Key Words:  Aerial working platform (truck mounted), aerial telescopic platform, articulated telescopic extension boom, articulated platform, articulated basket platform.

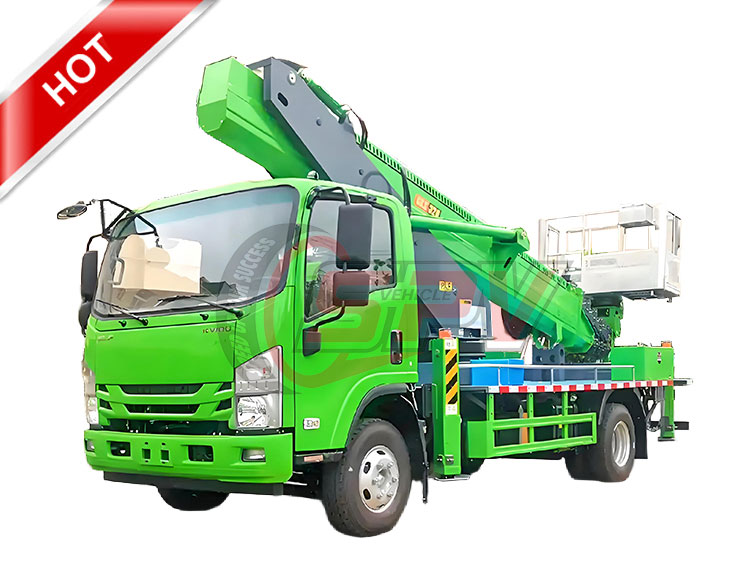

Telescopic Platform Truck ISUZU (16-20M)
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	6100 x 2100 x 3350 mm
	GVW / Kerb Weight	7,300 kg / 4,185 kg
Cab	Cab Capacity	3 persons allowed
	Air Conditioner	With air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine
	Power	120Ps (88KW)
	Displacement	2999 ml
	Emission Standard	Euro IV
Chassis	Drive Type	4X2, left hand drive
	Transmission	ISUZU manual, 5-speed forward, 1 reverse
	No. of Axles	2
	Tyre Specification	7.00R16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Cage Rated Capacity	200 kg
	Working Height	16m - 20 m
	Beam	The beam is articulated & telescopic extension type, hydraulic actuated and controlled
	Slewing	Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.
	Control	Control both on the ground and remote control in cage
	Safety Device	Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
	Leveling System	Hydraulic stabilizer to level the vehicle on uneven ground
Optional	Insulated cage; Wireless remote control system

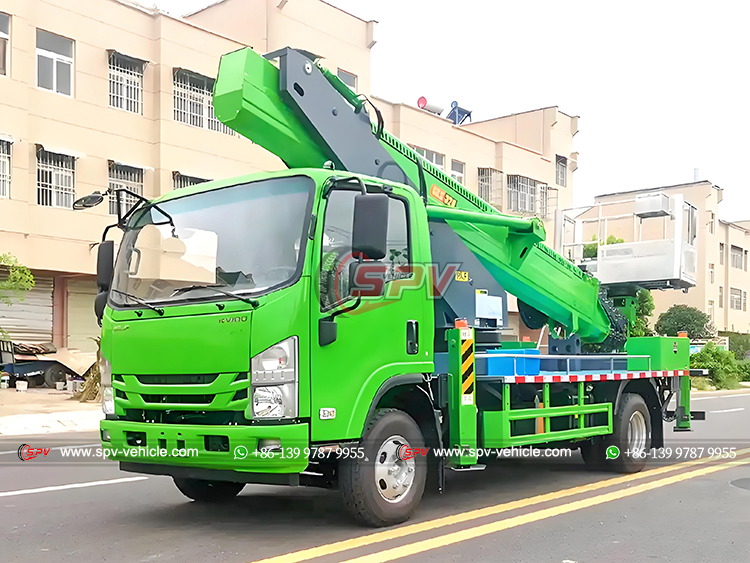

ISUZU 100P Bucket Truck - Front Left Side

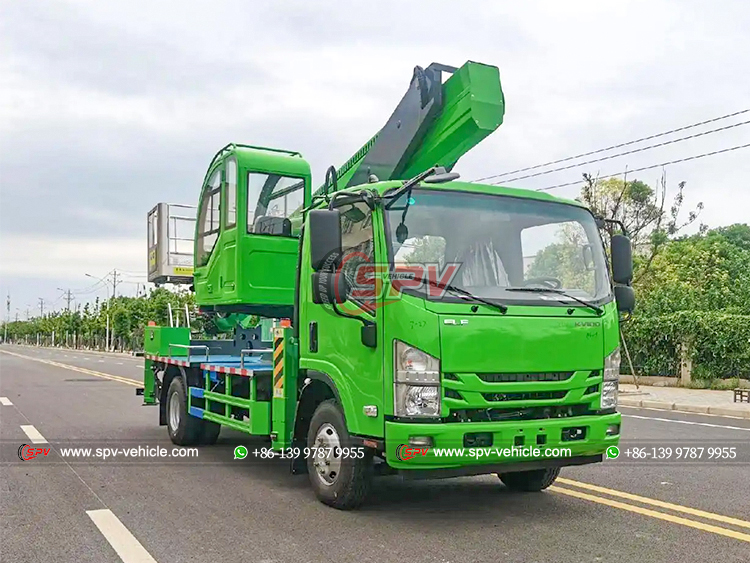

ISUZU 100P Manlift Truck - Front Right Side

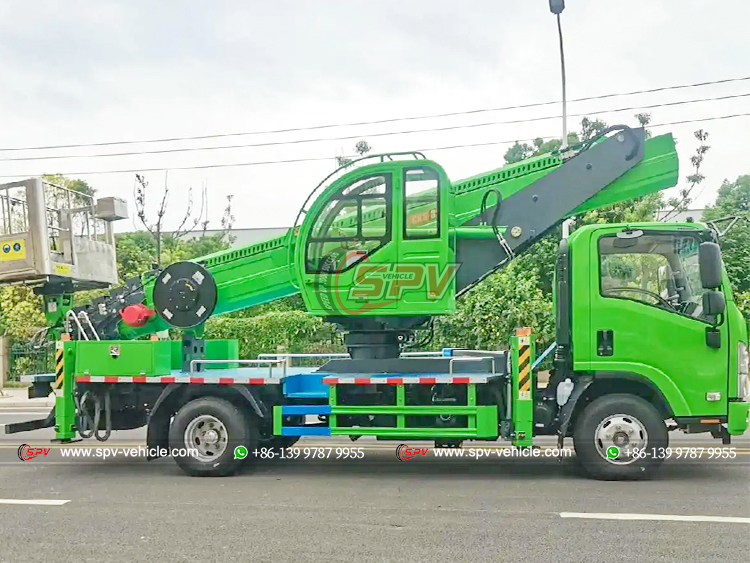

ISUZU 100P Light Sky Lift Truck - Right Side
