Home > Cargo Truck > ISUZU Cargo Truck

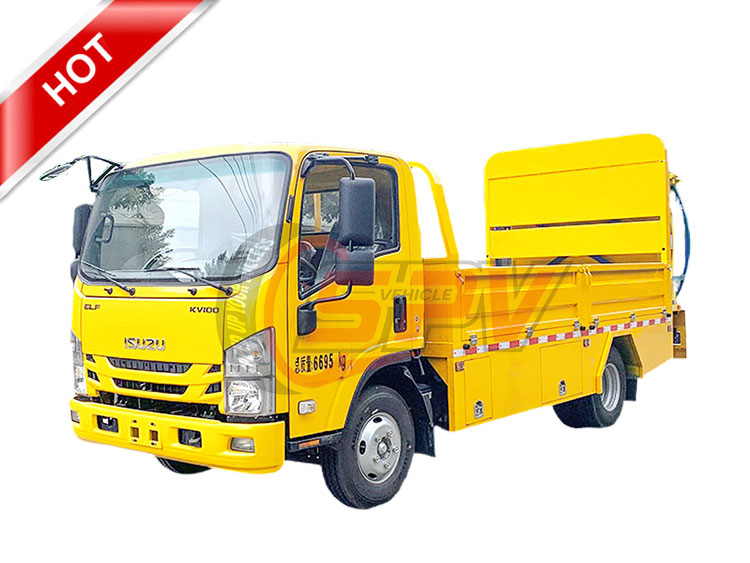

Crash Attenuator Truck ISUZU
Crash-proof Buffer Truck
Crash Attenuator Truck ISUZU
Function:

Crash attenuator truck, Anti-collision buffer truck (also called anti-collision buffer trucktruck mounted impact attenuator, traffic crash proof truck mounted attenuator, ISUZU collision attenuator truck, anti-collision buffer vehicle, crash-proof buffer truck ISUZU, highway safety warning truck, traffic attenuators vehicle, cargo truck with attenuator), is mainly used in highwayand tunel construction,the primary function of an attenuator truck is to safeguard road workers and vehicle occupants from the impact of a collision by reducing its severity. It has strong mobility and provides active warning and passive safety protection for road patrol and road construction safety.

The anti-collision buffer vehicle is a special vehicle designed for road construction and operations. It absorbs up to 70% of the induced energy through the rear anti-collision buffer energy-absorbing module (honeycomb aluminum material combined with arc structure), and can withstand the impact of a 2-ton vehicle at 80 or 100 km/h. It is equipped with an LED pointing screen, a burst light group and an electronic attention screen visible from 500 meters away to achieve multi-photon active early warning. The hydraulic system can complete the deployment of the buffer module within 22 seconds.



Features:

---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- Prolonged service life

Specification:

 Crash Attenuator Truck ISUZU KV100
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 7050*2200*2900 mm
GVW / Kerb Weight 6,695 kg / 6,300 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air Conditioner Equipped
Engine Fuel Type Diesel
Engine Brand ISUZU
Power 97 Hp(72KW)
Displacement 2499 ml
Emission Standard Euro III
Chassis Drive Type 4X2, left hand drive power assisted steering
Transmission Manual, 5 forward,1 reverse
No. of Axles 2
Tyre Specification 7.00R16LT, radial tyre, super wearable
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Anti Collision Bag Model Cansinga-TMA 80K
Anti Collision Mass (T) 2
Bearing Capacity (T) 8
Trash Container Thickness Edge 2mm and Bottom 3mm
All standard accessories: tool kit, English Manual……

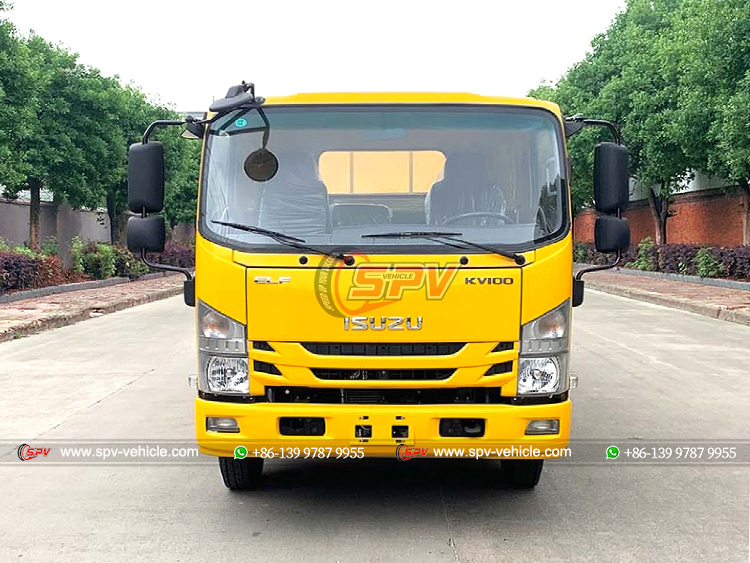

Crash-proof Buffer Truck ISUZU KV100 - Front Side
Crash-proof Buffer Truck ISUZU KV100 - Front Side

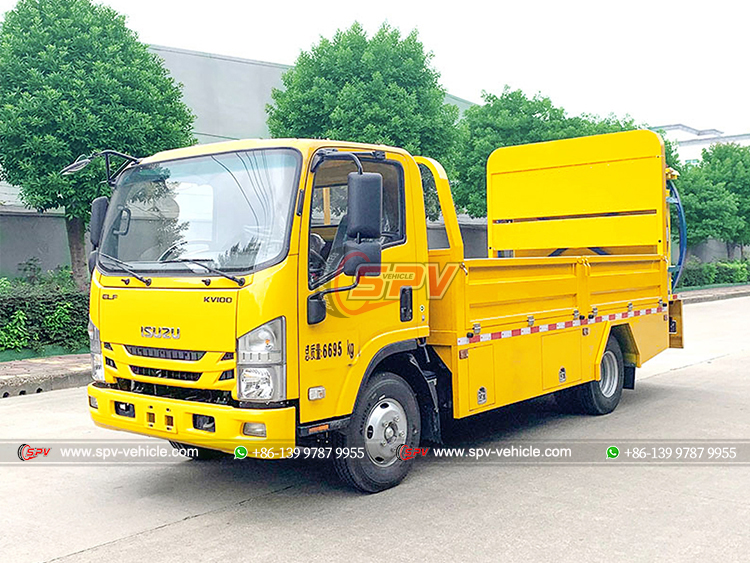

ISUZU KV100 Crash Proof Truck - Left Front Side
ISUZU KV100 Crash Proof Truck - Left Front Side

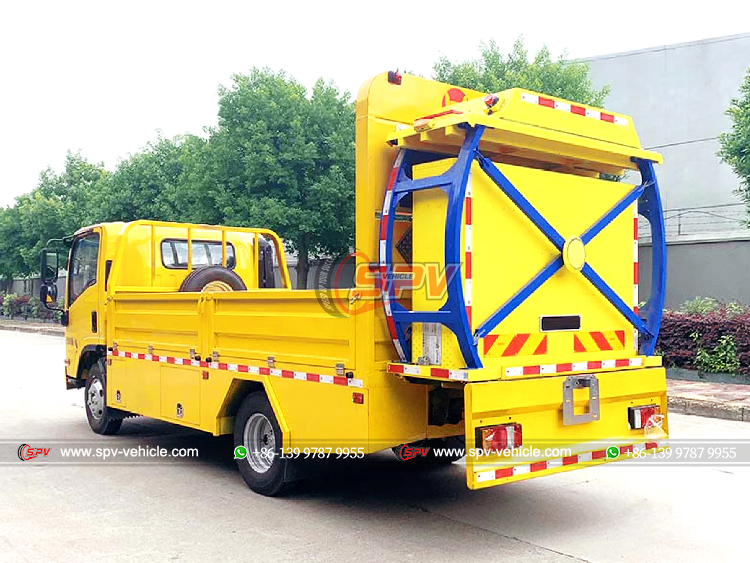

ISUZU Highway Safety Warning Truck - Rear Left Side

ISUZU Highway Safety Warning Truck - Rear Left Side

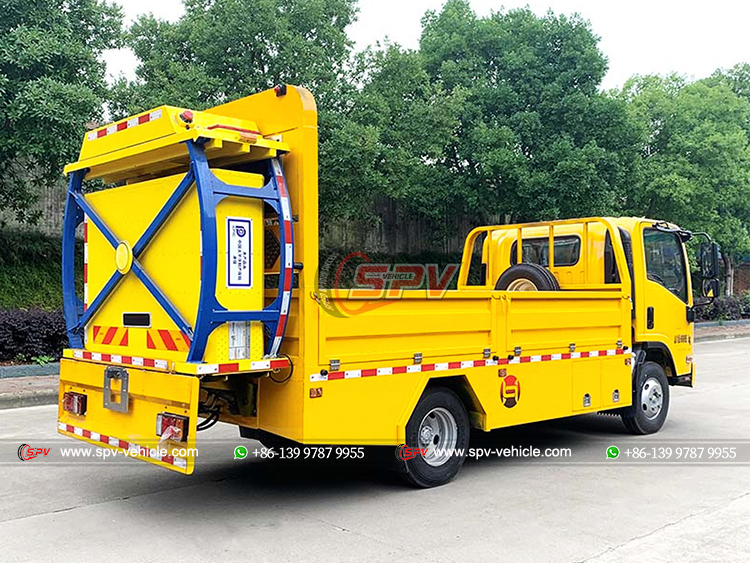

ISUZU Truck Mounted Attenuator Collision Avoidance System - Rear Right Side

ISUZU Truck Mounted Attenuator Collision Avoidance System - Rear Right Side

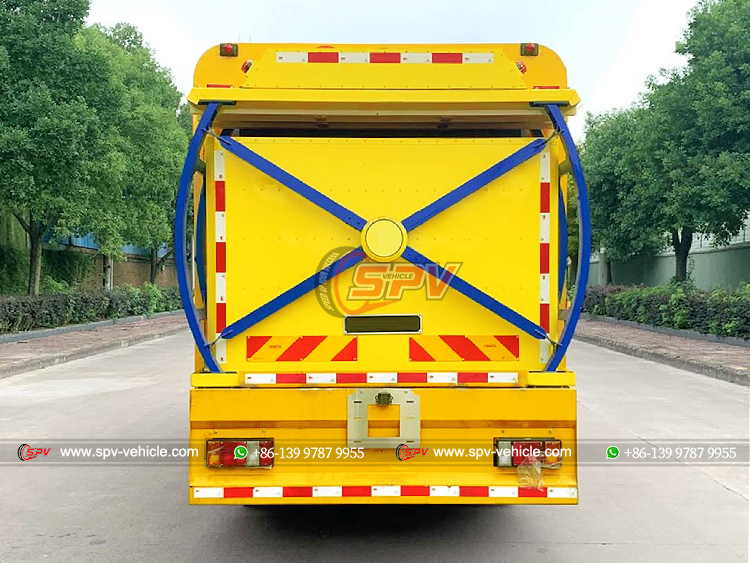

Traffic Attenuators Vehicle - Rear Side

Traffic Attenuators Vehicle - Rear Side
