ShangHai SPV Special Vehicle Co., Ltd.

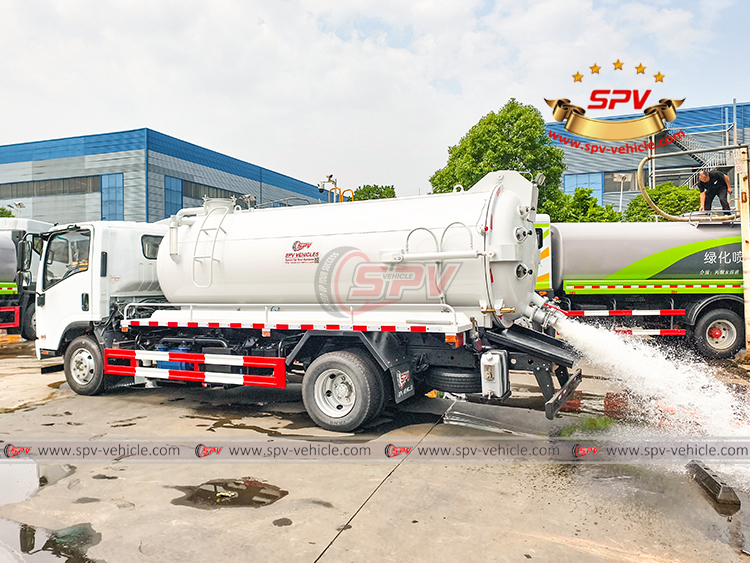

Cesspool Suction Truck (also called waste water truck, waste liquid disposal truck, sewage cleaning truck, ISUZU sewer truck, waste water collection truck, waste water disposal vehcile, sewer cleaning truck, sewage tanker, sewer truck, cesspit emptier, gully emptier, vacuum truck, gully emptier, waste vacuum tanker, vacuum tanker, sewage truck) is used to collect, transport and discharge liquid such as dirty water, sludge, septic, crude oil, and solid stuff such as small stones, bricks as well. It is suitable for cleaning the sewer, cesspit, cesspool, gully, etc. It is widely used in environment and sanitation field.

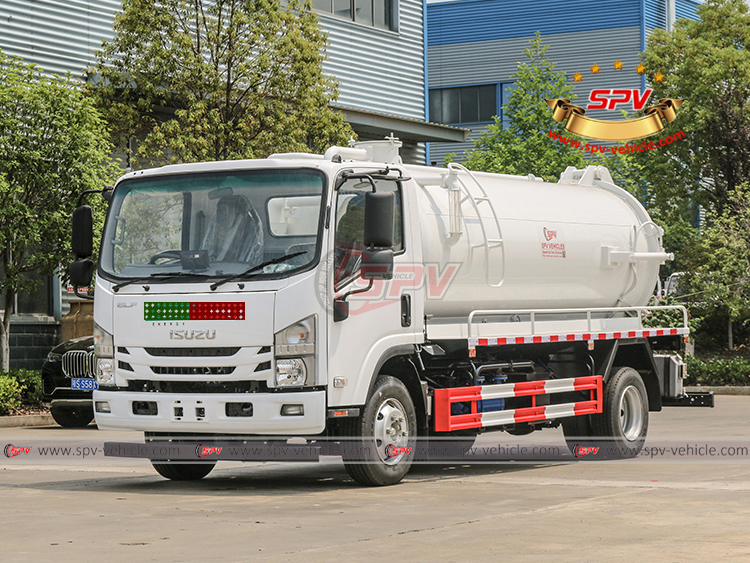

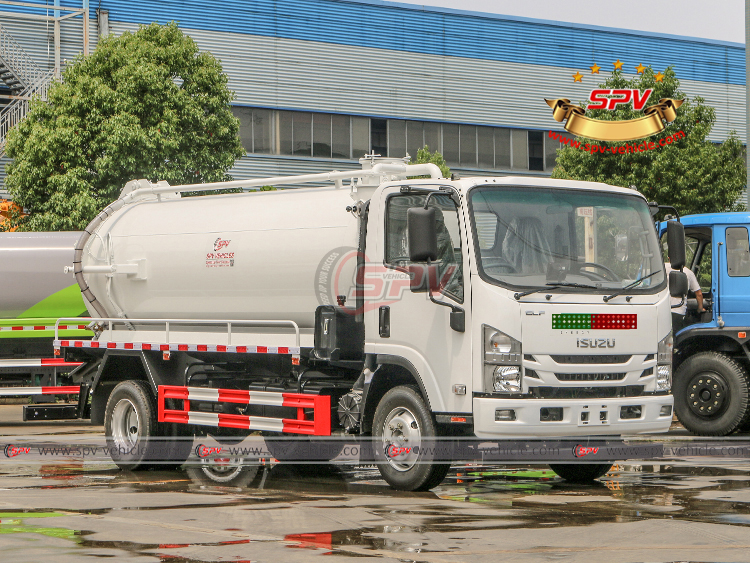

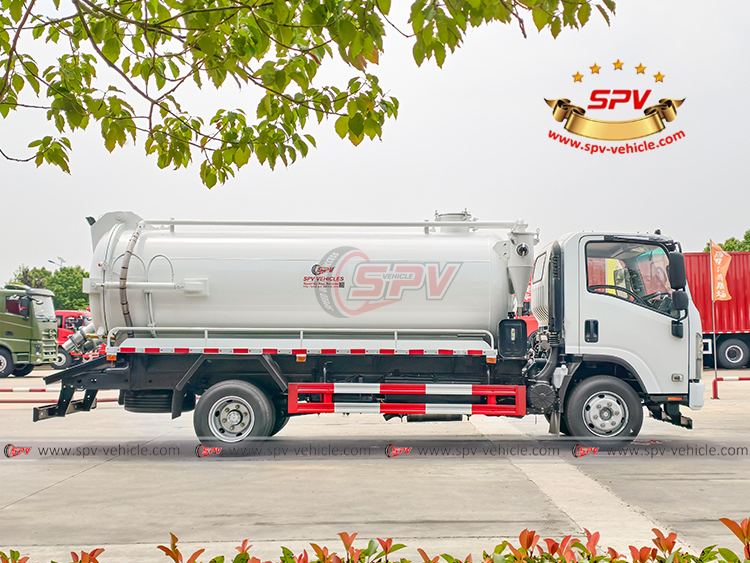

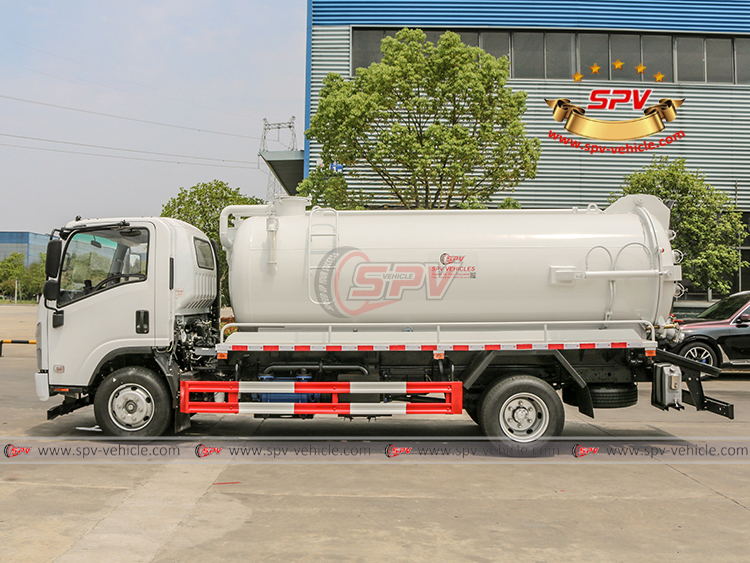

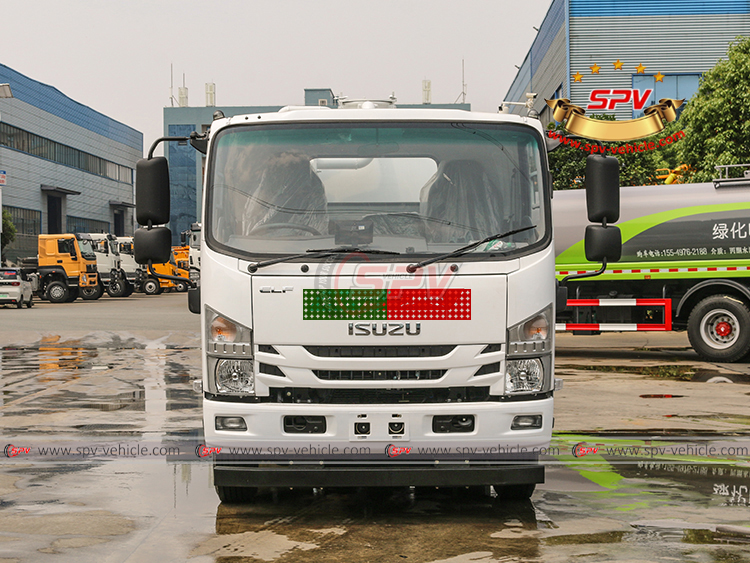

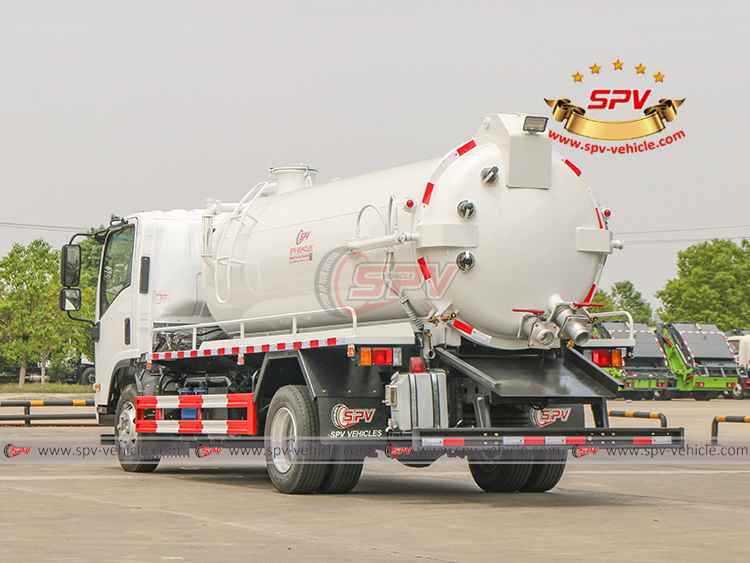

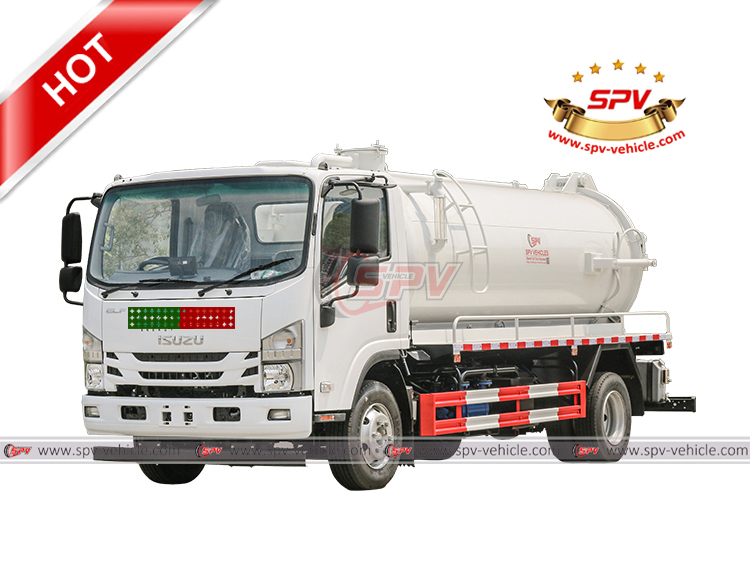

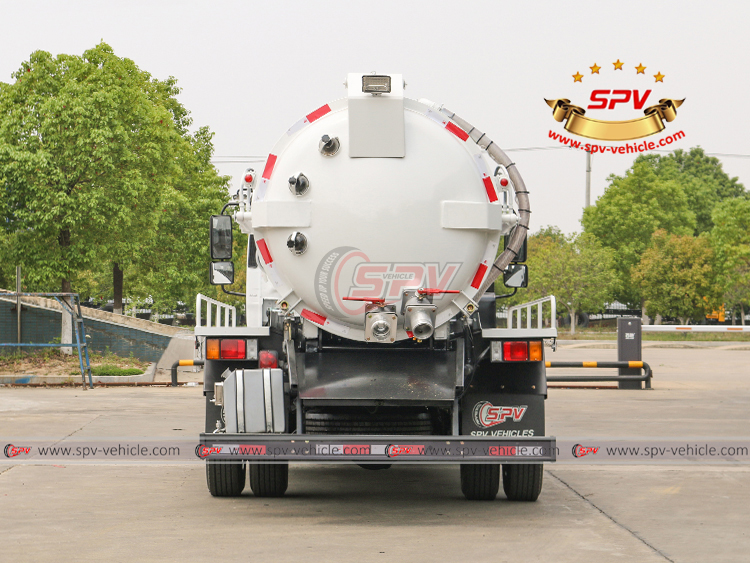

| Cesspool Suction Truck ISUZU (6,000 Litres) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7010 * 2180 * 2650 mm | |
| GVW / Kerb Weight | 10,550 kg / 5,760 kg | |

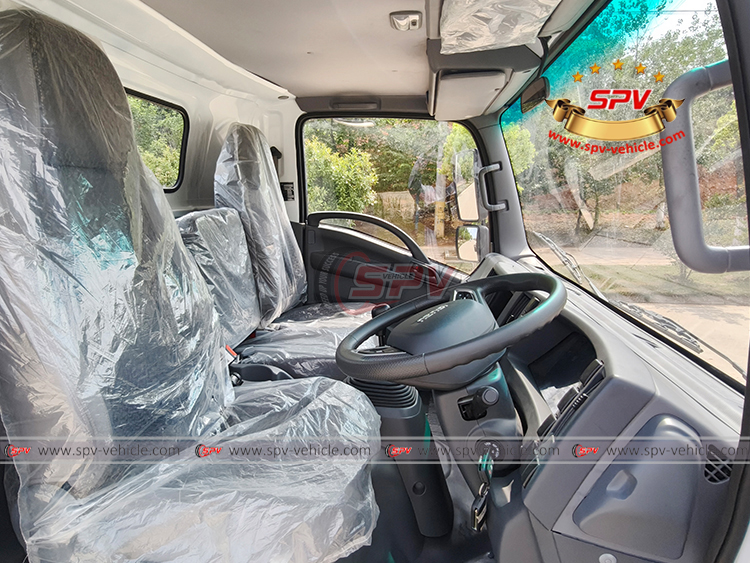

| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | Equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine | |
| Power | 190 Ps (139 KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro V | |
| Chassis | Drive Type | 4X2, left/right hand drive |
| Transmission | ISUZU gear box, no overhaul within 500,000km | |
| No. of axle | 2 | |
| Tyre Specification | 235/80R22.5 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 105 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 6,000 Litres (about 1,500 gallons) |
| Tank Material | Carbon steel | |
| Suction Head | 7m | |

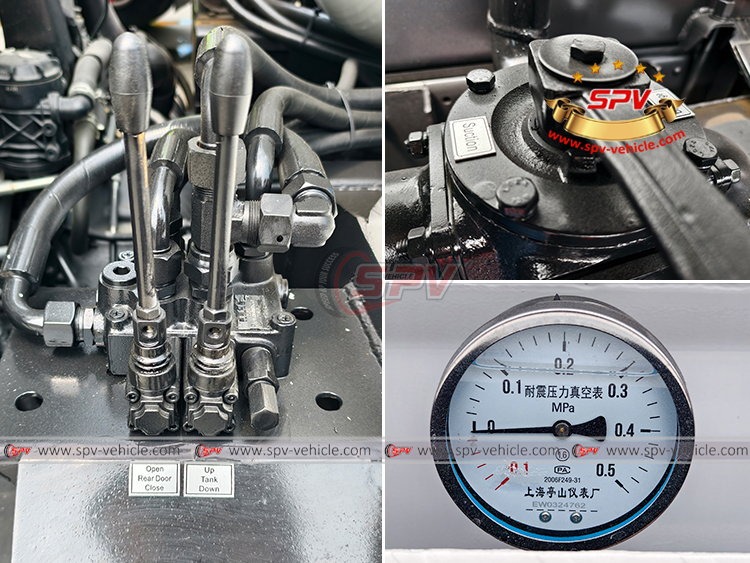

| Vacuum Pump |
Highly efficient, vacuum rate 93%, quick suction and discharge, suction lift 6m. |
|
| Hose | High quality, wire strengthened hose | |

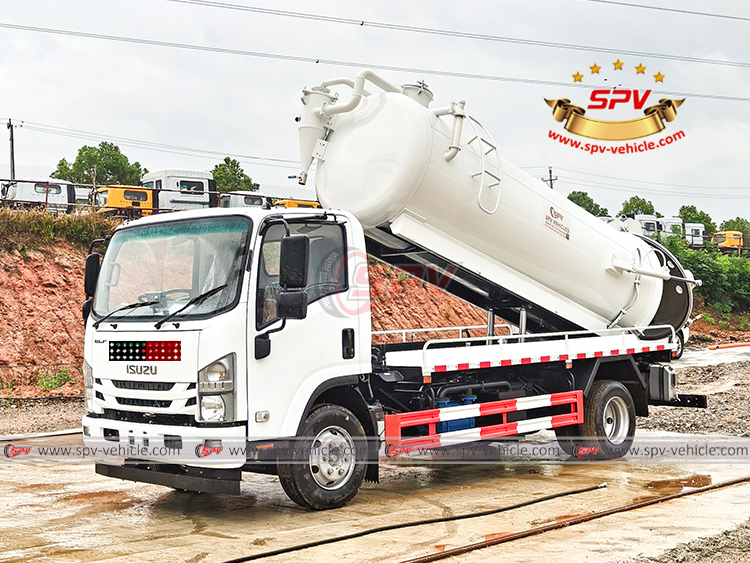

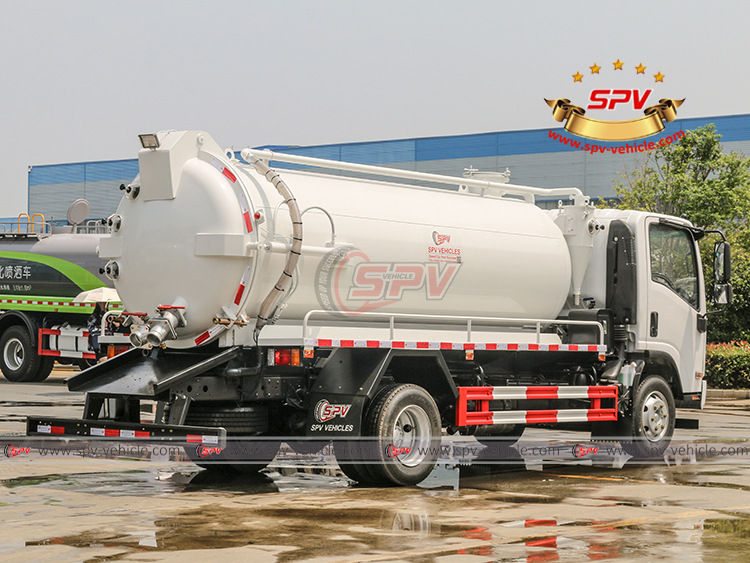

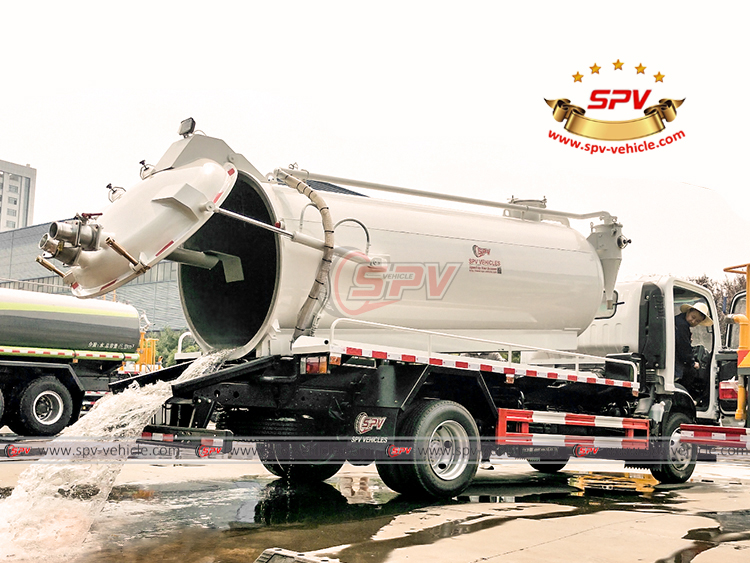

| Rear door can be hydraulic opened for complete discharge of solid stuff. | ||

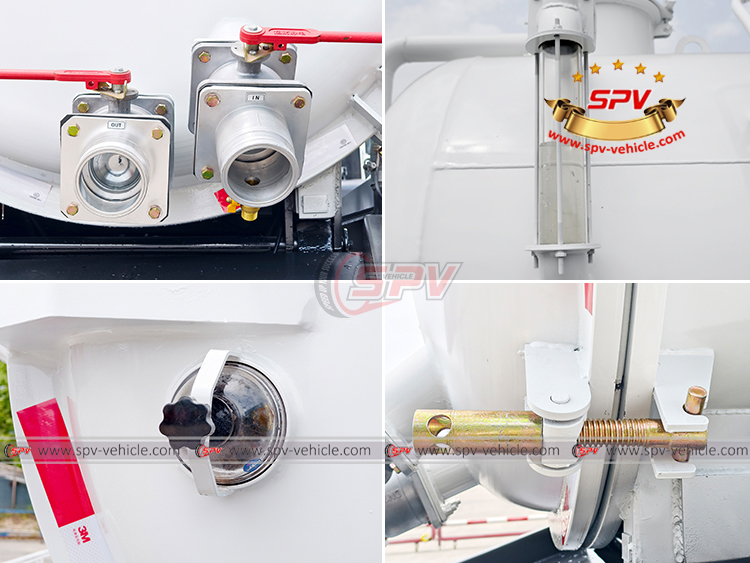

| All standard accessories: inlet, discharge, antifill valve…….. | ||
| Optional |
** Tank material could be carbon steel, stainless steel..….. ** Vacuum pump could be imported brand…… |
|
