ShangHai SPV Special Vehicle Co., Ltd.
Hook arm rubbish truck (also called roll-off garbage truck, roll on roll off truck, hook lifter truck, hook lift garbage truck, carriage removable / dismountable garbage truck, hook arm trash truck, hook lift waste disposal truck, hook loader container truck, etc. ) is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage transportation station etc.
SPV hook loaders loading capacity ranges from 1ton, 2tons, 3tons, 5tons, 8tons, 14tons, 18tons, 20 tons etc.
| Hook Arm Garbage Truck ISUZU (5 CBM) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 5200 * 2000 * 2200 mm | |
| GVW / Kerb Weight | 7,300 kg / 3,470 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner is equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU Engine | |
| Power | 120 HP (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left-hand drive |
| Transmission | 5-speed forward, 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Loading Capacity | 4 CBM |
| Dustbin Material | Anti-corrosive Steel | |
| Hydraulic System | Chinese top brand multi-way valve, cylinders | |
| Control Method | Manual Control, remote control as optional | |
| Self-discharging Incline Angle | 50° | |
| Lifting Time | ≤60S | |
| Unloading Time | ≤60S | |
| The hook loader consists of underframe, linkage frame, fixed arm, telescopic arm, hook arm, locking system, hydraulic system …….. | ||
| All other standard accessories: Tool kit, English manual…… | ||

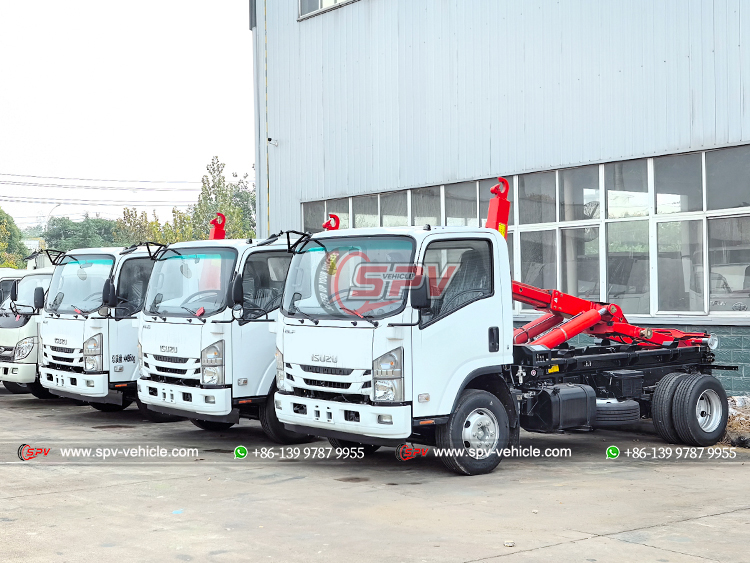

ISUZU 4x2 Light-duty Hook Arm Garbage Lorry - Front Left Side

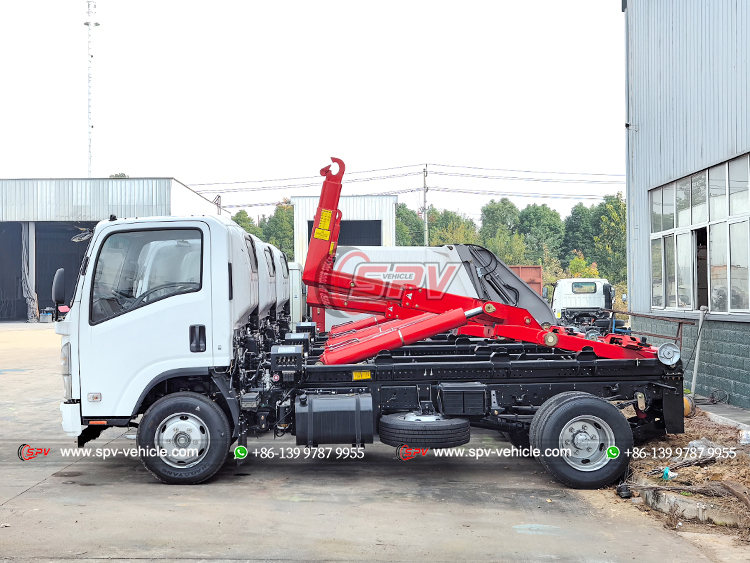

ISUZU KV100 Trash Truck With Hook Arm - Left Side View
