Supply High Quality ISUZU 100P Arm Hook Garbage Truck - Garbage Truck Manufacturer in China

Hook arm garbage truck (also called roll-off garbage truck, roll on roll off truck, hook lifter truck, hook lift garbage truck, carriage removable / dismountable garbage truck, hook arm trash truck, hook lift waste disposal truck, hook loader container truck, etc. ) is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage transportation station etc.

SPV hook loaders loading capacity ranges from 1ton, 2tons, 3tons, 5tons, 8tons, 14tons, 18tons, 20 tons etc.

Features:

---- ISUZU chassis, perfect performance.

---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Advanced technical, high quality material, steady performance and simple operation;

---- Rational design of hook boom and locking structure make the action of hook lift much more reliable;
---- Main hydraulic components are from well-known company all over the world;
---- Safety devices: loading balance valve, double hydraulic lock valve, safety controlling valve and locking structure of container by hydraulic;
---- Rear support device is available.

Specification:

Hook Arm Garbage Truck ISUZU (4 CBM)
General	Vehicle Brand	SPV
	Chassis Brand	ISUZU
	Overall Dimension	5200 * 2000 * 2200 mm
	GVW / Kerb Weight	7,300 kg / 4,070 kg
Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	Air conditioner is equipped
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU Engine
	Power	120 HP (88 KW)
	Displacement	2999 ml
	Emission Standard	Euro IV
Chassis	Drive Type	4X2, left-hand drive
	Transmission	5-speed forward, 1 reverse
	Wheelbase/No. of axle	3360 mm / 2
	Tyre Specification	7.00-16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	100 km/h
	Paint	Metallic paint
Superstructure	Loading Capacity	4 CBM
	Dustbin Material	Anti-corrosive Steel
	Hydraulic System	Chinese top brand multi-way valve, cylinders
	Control Method	Manual Control, remote control as optional
	Self-discharging Incline Angle	50°
	Lifting Time	≤60S
	Unloading Time	≤60S
	The hook loader consists of underframe, linkage frame, fixed arm, telescopic arm, hook arm, locking system, hydraulic system ……..
	All other standard accessories: Tool kit, English manual……

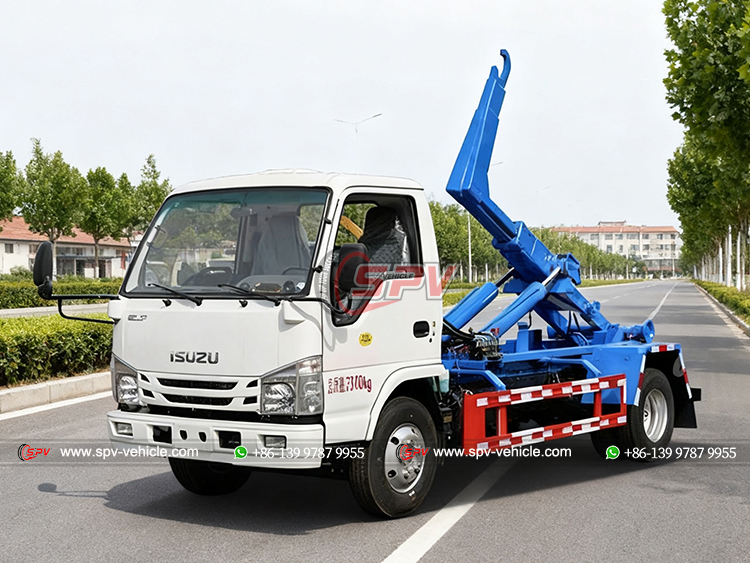

ISUZU 100P Arm Hook Garbage Truck - Front Left Side

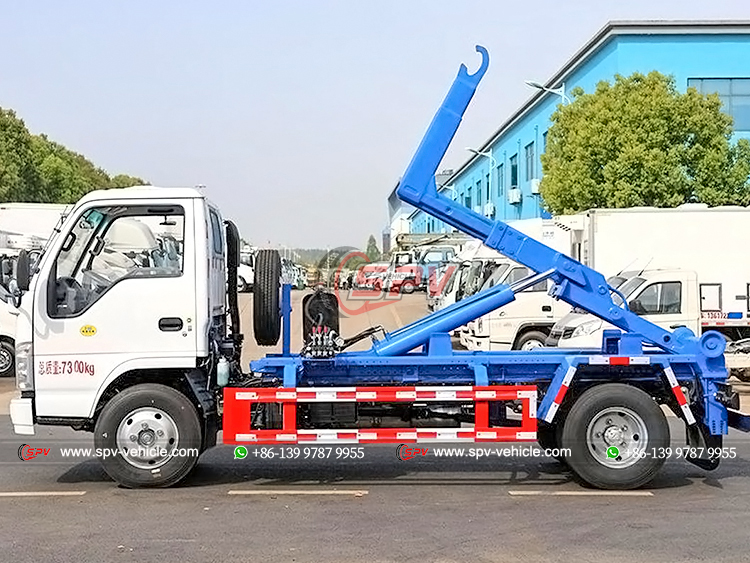

ISUZU 4 Tons Garbage Truck Mounted Hook Arm - Left Side
ISUZU 4 Tons Garbage Truck Mounted Hook Arm - Left Side

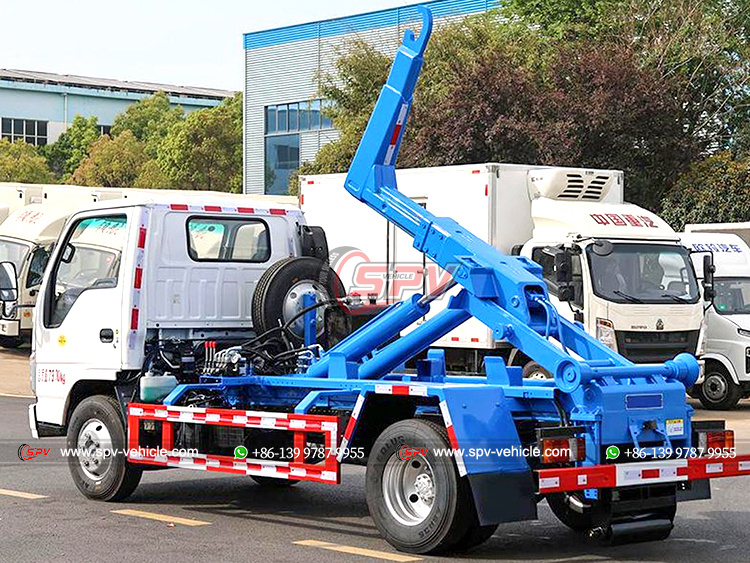

ISUZU 4X2 Light Hook Lift Garbage Wagon - Rear Left Side

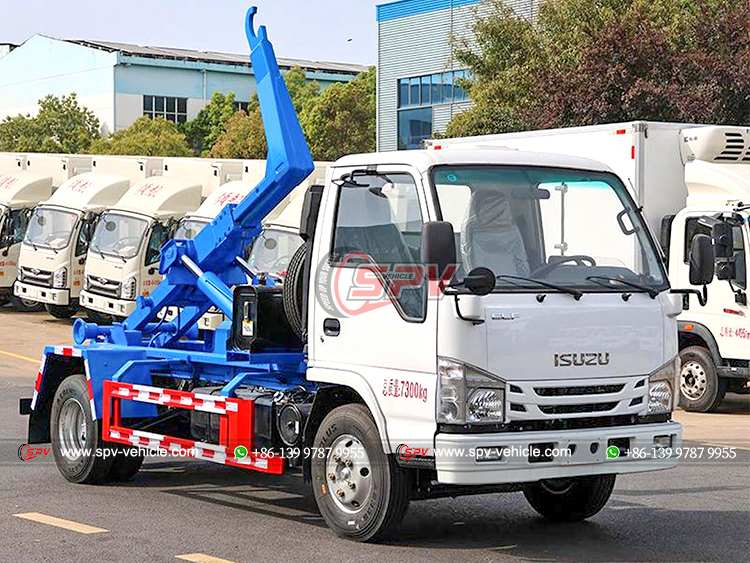

ISUZU 100P Waste Collection Wagon - Front Right Side

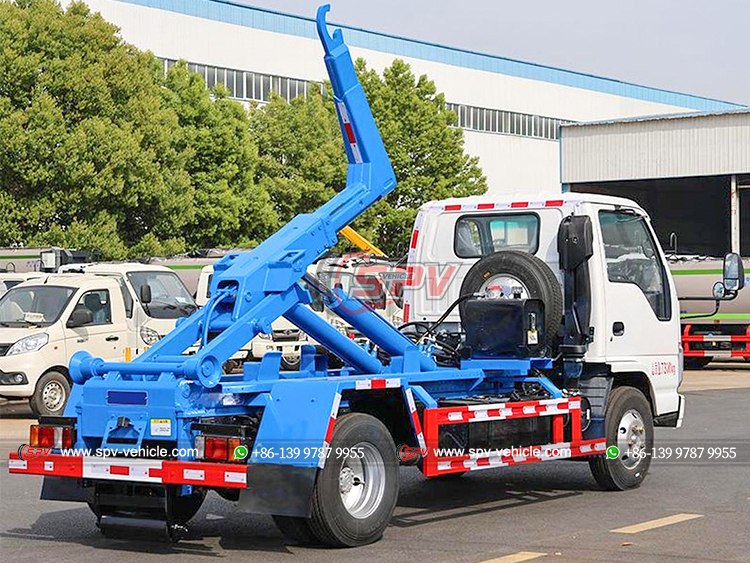

ISUZU 100P Hook Arm Refuse Removal Truck - Rear Right Side

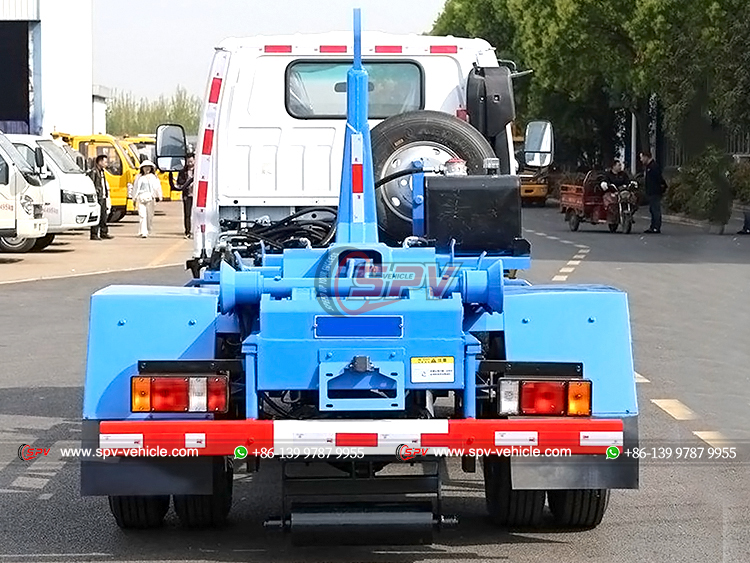

ISUZU Light Hook Lift Trash Collection Truck - Rear Side
ISUZU Light Hook Lift Trash Collection Truck - Rear Side

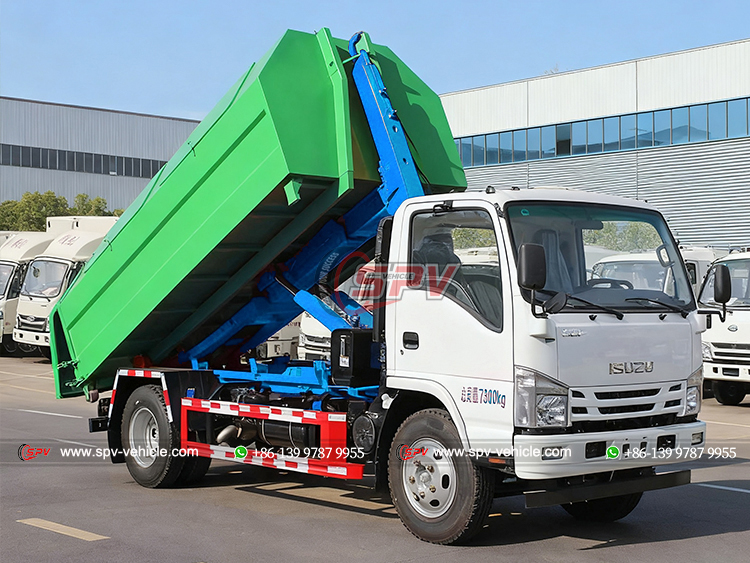

ISUZU 100P Hook Arm Truck Mounted Dustbin Van
