ShangHai SPV Special Vehicle Co., Ltd.
Fuel Bowser (also called oil transport truck, oil truck tanker, light fuel tank truck, truck tank fuel, petrol tanker, petrol fuel tank, diesel dispensing truck) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.
| Mini Fuel Bowser ISUZU (2,000 Litres) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 5230 * 1880 * 2110 mm | |
| GVW / Kerb Weight | 4,490 kg / 3,100 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4HK1 | |
| Power | 98 Ps (72 KW) | |
| Displacement | 2771 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | 5 speed forward, 1 reverse | |
| Wheelbase/No. of axle | 2765 mm / 2 | |
| Tyre Specification | 6.50R15 10PR | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 98 km/h | |
| Paint | Metallic paint | |
| Superstructure | Tank Capacity | 2,000 Litres (About 500 gallons) |
| Tank Material | Carbon steel | |
| Pump | Fuel pump equipped for overhead delivery | |
| Suction Head | 6 m | |
| Hose | High quality, wire strengthened hose, with cooper wire, anti-static | |
| All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers…….. | ||
| Optional |
** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)…… ** It can be divided into many compartments. ** Imported American mechnical pump Blackmer ** Imported American electrical pump Fillrite.... ** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge…… ** Heat preservation & heating system could be added. ** Bottom loading system can be equipped. |
|

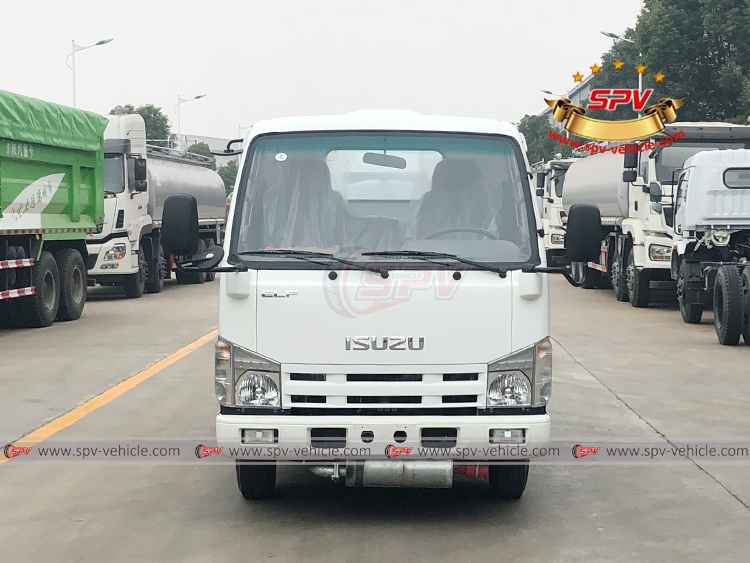

Front view of 2,000 litres mini fuel bowser ISUZU
Left front view of 2,000 litres mini fuel bowser ISUZU
Left side view of 2,000 litres mini fuel bowser ISUZU
Left back view of 2,000 litres mini fuel bowser ISUZU
Detailed discharge box inside view of 2,000 litres mini fuel bowser ISUZU
Back view of 2,000 litres mini fuel bowser ISUZU - detailed rear discharge box inside view
Right front view of 2,000 litres mini fuel bowser ISUZU
Right side view of 2,000 litres mini fuel bowser ISUZU
Right back view of 2,000 litres mini fuel bowser ISUZU
Back view of 2,000 litres mini fuel bowser ISUZU
2,000 litres mini fuel bowser ISUZU loading into 20 feet containter
2,000 litres mini fuel bowser ISUZU loading into 20 feet containter
