Diesel Oil Tanker Truck IVECO
30,000Litres Fuel Transport Tanker
Diesel Oil Tanker Truck IVECO
Function:

Diesel oil tank truck (also called fuel transport tanker, diesel truck, fuel tank, oil bowser, diesel fuel tank, diesel tanker truck, diesel tank truck, truck mounted diesel tanker, mobile diesel tanker, diesel oil tanker truck) is used to transport oil, diesel, gasoline, petroleum, kerosene, etc.

It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.

Features:

---- IVECO-Genlyon chassis ensures perfect driving performance.
---- IVECO-Cursor engine, 350HP super powerful; reliable performance.
---- Tank material has options of carbon steel, stainless steel, aluminum alloy…
---- Main fuel components available of international brands (ADR standard) - Civacon of OPW (America), EMCO Wheaton (America), DIXON (Europe)....
---- Original American brand Tuthill Fill-rite electrical refueling pump and flow meter(mechanical or digital) available.
---- Bottom loading system including vapor recovery and overfill detection system can be equipped.
---- Nice shape, rational structure
---- Prolonged service life

Specification:
Similar Key Words: fuel oil tank truck, fuel tanker, fuel truck, truck tanker, fuel bowser, oil tank, oil tanker, oil truck, oil transfer truck, truck mounted diesel tanker, fuel dispensing truck, fuel refueler truck, aviation refueling vehicle, tank lorry.

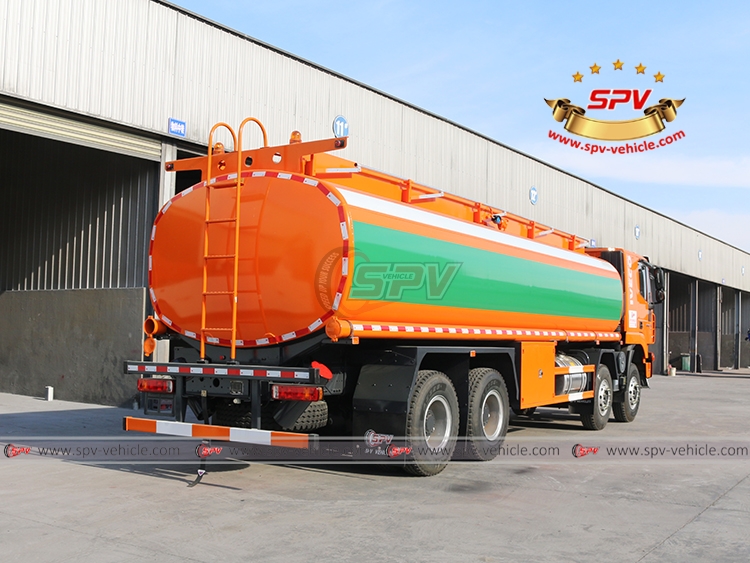

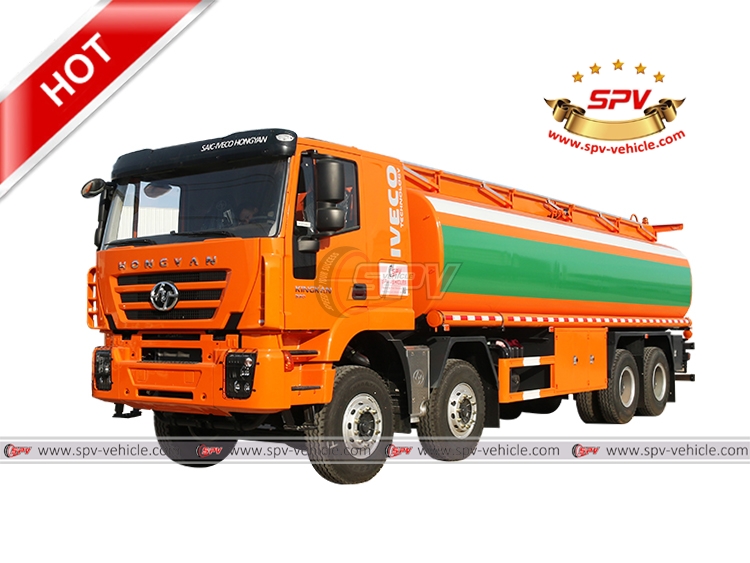

Diesel Oil Tank Truck IVECO (30,000 litres)
General Vehicle Brand SPV
Chassis Brand IVECO
Overall Dimension 11990 * 2500 * 3750 mm
GVW / Kerb Weight 31,000 kg / 11,005 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air Conditioner Equipped
Engine Fuel Type Diesel
Engine Brand IVECO-Cursor
Power 350 Hp (257 KW)
Displacement 8709 ml
Emission Standard Euro Ⅳ
Chassis Drive Type 8X4, left hand drive
Transmission 12 forward, 2 reverse
Wheelbase/No. of axle 1800 + 4625 + 1300 mm / 4
Tyre Specification 315/80R22.5
Tyre Number 12 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Tank Capacity 30,000 Litres (About 8,000 gallons)
Tank Material carbon steel
Pump Fuel pump equipped for overhead delivery
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers……
Optional  ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)……
** It can be divided into many compartments.
** Imported American mechnical pump Blackmer
** Imported American electrical pump Fillrite....
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge……
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.
