15,000 Litres (4,000 Gallons) Refuel Tank Truck, Fuel Truck Tanker, Oil Truck from China | SPV
Home > Tank Truck > Fuel Tanker Truck
Fuel Oil Tank Foton
15,000 Litres Refuel Tank Truck
Fuel Oil Tank Foton
Function:

Fuel oil tank (also called refuel tank truck, diesel truck, petrol truck, oil dispensing tanker, fuel tank truck, stainless steel truck tanker, fuel truck tanker, oil tanker) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.

Features:

---- Foton chassis, perfect performance.
---- Cummins engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.

Specification:
Similar Key Words: ISUZU refuel tank truck, IVECO refueler truck, fuel oil storage tank, crude oil tanker, diesel tank truck, petrol truck, oil refueling truck, fuel bowser

Fuel Tank Truck Foton ( 15,000 Litres )
General Vehicle Brand SPV
Chassis Brand Foton
Overall Dimension 8365 * 2480 * 3050 mm
GVW / Kerb Weight 16,000 kg / 7,000 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand Phaser engine
Power 210 Ps (155 KW)
Displacement 5990 ml
Emission Standard Euro III
Chassis Drive Type 4X2, left hand drive or right hand drive
Transmission 7 - speed front, 1 reverse
Wheelbase/No. of axle 4700 mm / 2
Tyre Specification 9.00R20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 79 km/h
Paint Metallic paint
Superstructure Tank Capacity 15,000 Litres (About 4,000 gallons)
Tank Material Carbon steel
Pump Fuel pump equipped for overhead delivery
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: manhole, ladder, inlet, discharge……..
Optional ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)……
** It can be divided into many compartments.
** Imported American mechnical pump Blackmer
** Imported American electrical pump Fillrite....
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge……
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.

Fuel Oil Tank FOTON - Bulk - LF
To Ghana - 3 units of Fuel oil tank truck

Fuel Oil Tank FOTON - LS

To Ghana - 3 units of Fuel oil tank truck - Left side

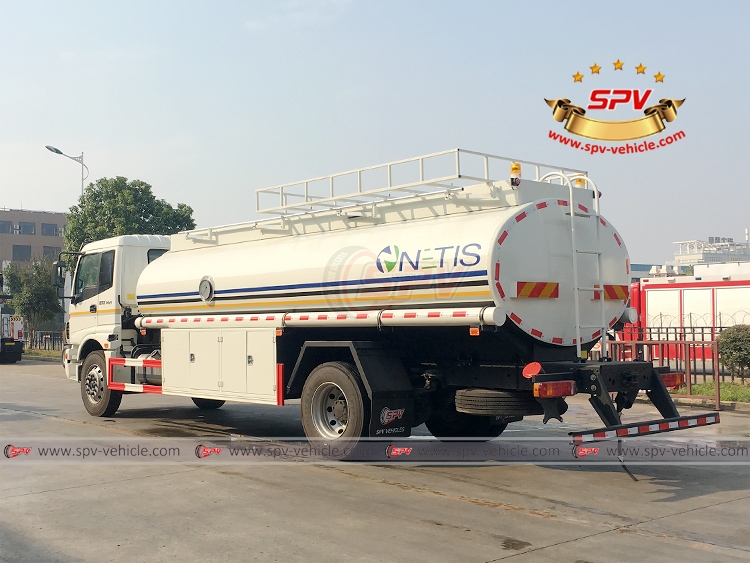

Fuel Oil Tank FOTON - LB
To Ghana - 3 units of Fuel oil tank truck - left back

Fuel Oil Tank FOTON - Bulk - RF
To Ghana - 3 units of Fuel oil tank truck -  Right front

Fuel Oil Tank FOTON - Bulk - RB\
To Ghana - 3 units of Fuel oil tank truck - Right back

Fuel Oil Tank FOTON - B
To Ghana - 3 units of Fuel oil tank truck -  Back view

Fuel Tank Truck FOTON - Discharge Box
Fuel oil tank truck FOTON(15,000 litres) - Discharge box detailed view

Fuel Tank Truck FOTON - Users Manual

Fuel oil tank truck FOTON(15,000 litres) - User's Manual

Fuel Tank Truck FOTON - FOTON Chassis Manual

Fuel oil tank truck FOTON(15,000 litres) - FOTON Chassis Operating Manual

** Fuel Oil Tanker FOTON - Left Hand Drive**
Fuel Oil Tanker FOTON - RF - LHD
Photo 1: Right front view of Fuel Oil Tanker Foton(15,000 Litres)

Fuel Oil Tanker FOTON - RB - LHD
Photo 2: Right back view of Fuel Oil Tanker Foton(15,000 Litres)


** Fuel Oil Tanker FOTON - Right Hand Drive**

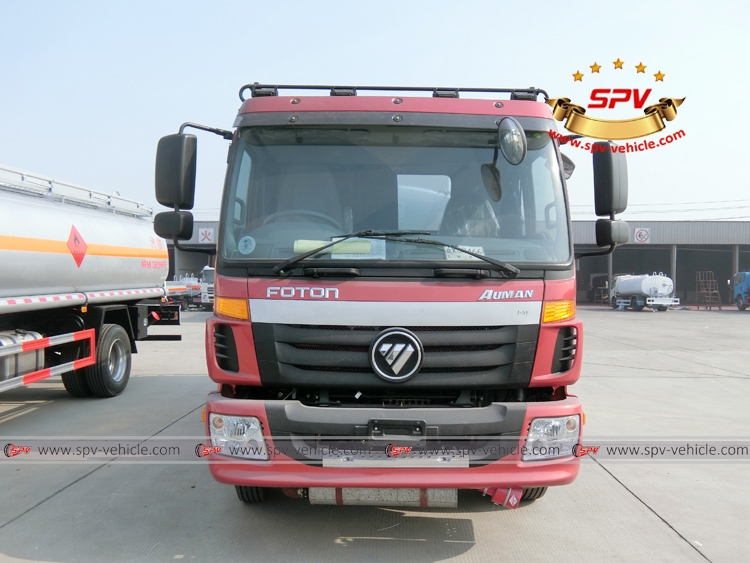

Fuel Oil Tanker FOTON - F
Photo 3: Front view of Fuel Oil Tanker Foton(15,000 Litres) - RHD

Fuel Oil Tanker FOTON - RF
Photo 4: Right front view of Fuel Oil Tanker Foton(15,000 Litres) - RHD

Fuel Oil Tanker FOTON - RB
Photo 4: Right back view of Fuel Oil Tanker Foton(15,000 Litres) - RHD

Fuel Oil Tanker FOTON - LB
Photo 5: Left back view of Fuel Oil Tanker Foton(15,000 Litres) - RHD

Fuel Oil Tanker FOTON - LS
Photo 6: Left side view of Fuel Oil Tanker Foton(15,000 Litres) - RHD
