Function:
Knuckle boom crane (also called mobile crane truck, cranetruck, lorry mounted crane, truck cargo with loader crane, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.
There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.
The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.
Features:
---- Shancman chassis ensures perfect driving performance.
---- Weichai engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Massive, durable, perfect performance
---- Prolonged service life
---- Premium cranes Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.
Crane features:
---- Advanced technology, stable performance, high efficiency
---- Wide and high-speed rotary, convenient operation
---- Unique design, small volume, low noise.
---- Key hydraulic components are of top international technologies, which make the operation safe and reliable.
Specification:
|
Knuckle Boom Crane Shacman (5 Tons) |
|
General |
Vehicle Brand |
SPV |
|
Chassis Brand |
Shacman |
|
Overall Dimension |
10000 * 2500 * 3900 mm |
|
GVW / Kerb Weight |
25,000 kg / 16,600 kg |
|
Cab |
Cab Capacity |
3 persons allowed |
|
Air Conditioner |
Equipped Air conditioner |
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
Weichai Engine |
|
Power |
270 Hp (198 KW) |
|
Displacement |
9726 ml |
|
Emission Standard |
Euro III |
|
Chassis |
Drive Type |
6X4, left hand drive |
|
Transmission |
9-speed front, 1 reverse |
|
Wheelbase/No. of axle |
4375+1400 mm / 3 |
|
Tyre Specification |
11.00-20 |
|
Tyre Number |
10 tyres and 1 spare tyre |
|
Max Speed |
90 km/h |
|
Paint |
Metallic paint |
|
Superstructure |
Cargo Box Dimension |
5800 X 2300 X 500 mm |
|
Crane Brand |
XCMG |
|
Max Lifting Capacity |
5,000 kg |
Lifting Capacity
@ Working Radius |
5000 kg @ 2.10 m;
2400kg @ 4.44 m;
1600 kg @ 6.20 m;
1050kg @ 8.01m |
|
Max. Lifting Moment |
10.5 T.M |
|
Max. Working Height |
10.5 m |
|
Max. Working Radius |
8 m |
|
Slewing Angle |
360°all rotation |
|
All other standard accessories: Tool kit, English manual |
|
Optional |
** Hydraulic tipper box is optional.
** Box thickness according to requirement.
** Box height could be nominated. |
Photo 1: Front view of Shacman Knuckle Boom Crane (5 Tons)

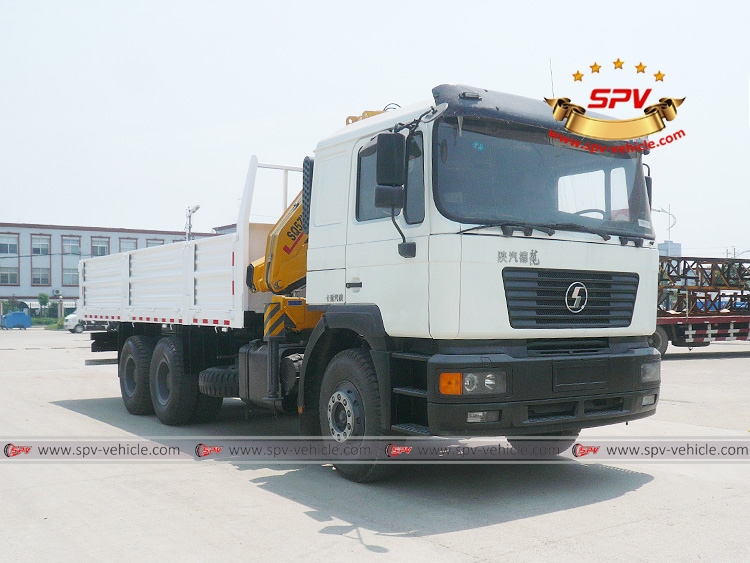

Photo 2: Right Front view of Shacman Knuckle Boom Crane (5 Tons)
Photo 3: Right Side view of Shacman Knuckle Boom Crane (5 Tons)
Photo 4: Right back view of Shacman Knuckle Boom Crane (5 Tons)
Photo 5: Left side view of Shacman Knuckle Boom Crane (5 Tons)
Similar Keywords: lorry mounted crane, crane truck, knuckle pickers, crane mounted lorry, truck cargo with loader crane, knuckle boom crane on truck chassis, knuckle boom truck mounted crane, truck mounted hydraulic crane
