ShangHai SPV Special Vehicle Co., Ltd.

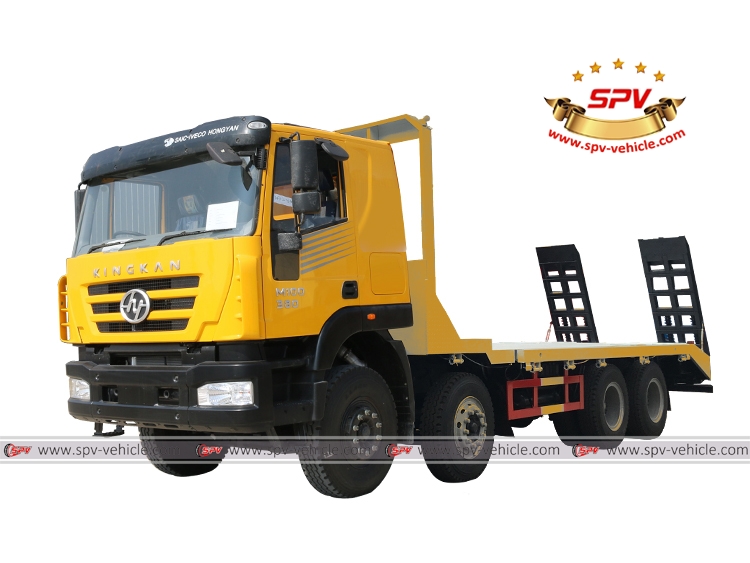

Flatbed truck (also called machinery transport truck, flatbed lorry, low bed truck, excavator transport truck, excavator carrier truck, asphalt paver carrier truck, lorry carrier truck) is used for transporting object that is non-removable or machinery that can’t be driven on road, such as excavator, loader, harvester, etc. It’s widely used in the construction, agriculture field.
To load machinery easily, there is a tilt ramp at back of flatbed. When loading machinery on, turnover the ramp to ground, so there could be a slope between ground and flatbed. When finished loading, the ramp should be fold up and fastened by manual. According to special requirements, the ramps could be hydraulic fold and extension.
According to its driven type, there is 4X2, 6X4, 8X4 flatbed truck.
According to special loading requirements, the flatbed could be extensible type.
---- IVECO chassis, perfect performance.
---- IVECO CURSOR Engine(Italy brand), super powerful; reliable performance.
---- Right hand drive or left hand drive is optional.
---- Strong flatbed, heavy loading, checkered plate, anti-slip.
---- Flat connection of ramps and flat bed
---- Low gravity center, safe transport
---- Massive, durable, long service life.
| Flatbed Truck IVECO (25 Tons) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | IVECO | |
| Overall Dimension | 12000 * 2500 * 3200 mm | |
| GVW / Kerb Weight | 25,000kg / 13,800 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | IVECO Cursor engine | |
| Power | 380 Ps (280 KW) | |
| Displacement | 8709 ml | |
| Emission Standard | Euro III | |
| Chassis | Drive Type | 8X4, left hand or right hand drive |
| Transmission | 12 - speed forward, 2 reverse | |
| No. of axle | 4 | |
| Tyre Specification | 295/80R22.5, tubeless tyres | |
| Tyre Number | 12 tyres and 1 spare tyre | |
| Max Speed | 90 km/h | |
| Paint | Metallic paint | |
| Superstructure | Flatbed Loading Capacity | ≤ 25 Tons |
| Flatbed Material | Strengthened checked plate, anti-slip | |
| Flatbed thickness | 8 mm | |
| All standard accessories: basic tool kit, English manual…… | ||
| Optional |
** Hydraulic ramps for folding and extension. ** Width extensible manual or hydraulic ** Front hydraulic lifting system |
|
