Isothermal Van Truck Sinotruk
10 Ton Cargo Truck
Isothermal Van Truck Sinotruk
Function:

Van truck (also called box vehicle, cargo truck, cargo van, box van, cube truck, cargo van) is used to transport cargo with closed box. It is very normal and important transport truck.

The material used for van truck body could be corrugated steel, color steel plate, fiberglass, aluminum…

By adding cooling system and polyurethane insulation layer, van truck could be refrigeration truck and carry cargo or food that need be in low temperature.

According to the requirements, it could be single door at rear or side, or double door.

Features:

---- SINOTRUK chassis ensures perfect driving performance.
---- SINOTRUK engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High quality temperature preservation van body
---- Excellent Chinese brand temperature controlled unit or imported cooling system
---- Massive, durable, perfect performance
---- Prolonged service life



Specification:



Isothermal Van Truck SINOTRUK ( 10 Ton )
General Vehicle Brand SPV
Chassis Brand SINOTRUK
Overall Dimension 8940 * 2580 * 3920 mm
GVW / Kerb Weight 16,000 kg / 8,900 kg
Cab Cab Capacity 2 persons allowed with 1 sleeper
Air Conditioner Air conditioner is equipped
Engine Fuel Type Diesel
Engine Brand SINOTRUK engine
Power 266 Hp (213 KW)
Displacement 9726 ml
Emission Standard Euro II
Chassis Drive Type 4X2, left hand drive or right hand drive
Transmission 10-speed forward, 2 reverse
No. of axle 2
Tyre Specification 12R22.5, Radial tyres, super wearable
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Box Capacity 10 Ton
Box Internal Dimension 5800 * 2400 * 2400 mm
Box Material Fiberglass with 80 mm foaming
Doors Two rear doors fully openable and one side door
Bottom Floor Aluminium alloy checked plate(anti-slip) with aluminium ventilation stripes
Accessories Stainless steel locking and hinge
All other standard accessories: Tool kit, English manual……
Optional ** Box material could be aluminum or stainless steel.
** Cooling system could be imported brand.
** Temperature data logger, temperature alarm.
** Extra side door.
** Slide rail and  meat hook for special use.

10 Tons Isothermal Van Truck Sinotruk - F
Front view of  Isothermal Van Truck Sinotruk(10 Tons)

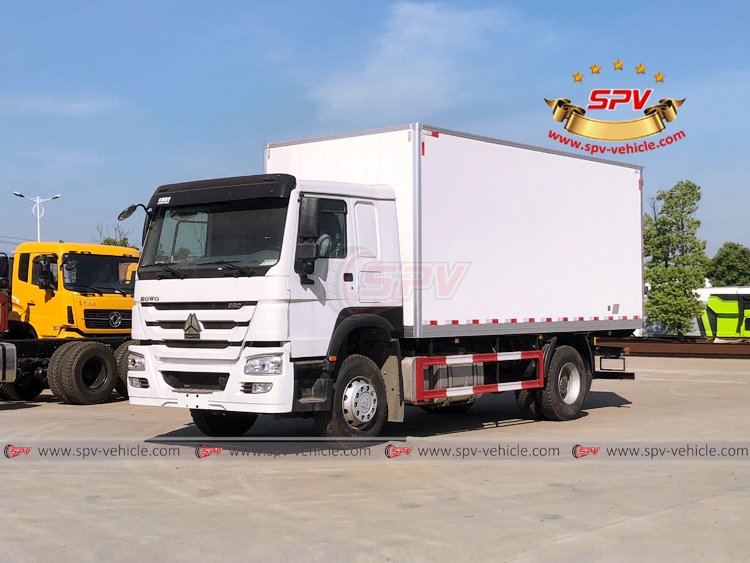

10 Tons Isothermal Van Truck Sinotruk - LF
Left front view of  Isothermal Van Truck Sinotruk(10 Tons)

10 Tons Isothermal Van Truck Sinotruk - LS
Left side view of  Isothermal Van Truck Sinotruk(10 Tons)

10 Tons Isothermal Van Truck Sinotruk - LB
Left back view of  Isothermal Van Truck Sinotruk(10 Tons)

10 Tons Isothermal Van Truck Sinotruk - B
Back view of  Isothermal Van Truck Sinotruk(10 Tons)

10 Tons Isothermal Van Truck Sinotruk - RF
Right front view of  Isothermal Van Truck Sinotruk(10 Tons)

10 Tons Isothermal Van Truck Sinotruk - RS
Right side view of  Isothermal Van Truck Sinotruk(10 Tons)

10 Tons Isothermal Van Truck Sinotruk - RB
Right back view of  Isothermal Van Truck Sinotruk(10 Tons)

*** To Latin Amrica - 3 units Isothermal Van Truck and 1 unit  Van Truck ***


SINOTRUK Isothermal Van Truck and Refrigerator Truck -1

SINOTRUK Isothermal Van Truck and Refrigerator Truck -2
