Home > Tank Truck > Fuel Tanker Truck
Fuel Tank Truck Sinotruk
10,000 Litres Oil Tanker Bowser (4X4)
Fuel Tank Truck Sinotruk
Function:

Fuel tank truck (also called oil tank truck, fuel tanker truck, fuel dispensing tanker, petrol truck tanker,  oil tank lorry, truck aircraft refueling, refuel tank truck, fuel transport truck, aluminum fuel tank truck) is used to transport oil, diesel, gasoline, kerosene, etc.
It can be divided into many compartments to transport different types of fuels, lubricant, crude oil, alcohol……
Oil pump equipped, with pump in pump out function.
Off-road chassis makes this fuel truck suiting for any road situations, even in desert.

Features:

---- Sinotruk chassis, perfect performance.
---- Sinotruk engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Fuel pump super powerful, highly efficient, with pump in pump out function.
---- Massive, durable, long service life.



Specification:
Similar Keywords: fuel tanker truck, fuel refueling truck, diesel truck, mobile diesel tanker, fuel bowser, petrol tank.

 Off - road Fuel Tank Truck Sinotruk ( 10,000 Litres )
General Vehicle Brand SPV
Chassis Brand Sinotruk
Overall Dimension 7390 * 2500 * 3210 mm
GVW / Kerb Weight 16,000 kg / 8,850 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner Equipped
Engine Fuel Type Diesel
Engine Brand Sinotruk engine
Power 266 Ps ( 196 KW )
Displacement 9726 ml
Emission Standard Euro II
Chassis Drive Type 4X4, left or right hand drive
Transmission 10-speed forward, 2 reverse
Wheelbase/No. of axle 4300 mm / 2
Tyre Specification 14.00R20, Radial tyre, super wearable
Tyre Number 4 tyres and 1 spare tyre
Max Speed 76 km/h
Paint Metallic paint
Superstructure Tank Capacity 10,000 Litres ( About 2,640 gallons )
Tank Material Carbon steel
Pump Fuel pump equipped for overhead delivery
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: manhole, ladder, anti-static belt, anti-slip walkway, handrail, fire extinguisher, inlet, discharge, reflective stickers……..
Optional ** Tank material could be carbon steel, stainless steel, aluminum (aluminum tanker)……
** It can be divided into many compartments.
** Imported American mechnical pump Blackmer
** Imported American electrical pump Fillrite....
** Devices can be equipped: flow meter, fuel dispenser, hose reel & nozzle, level gauge……
** Heat preservation & heating system could be added.
** Bottom loading system can be equipped.

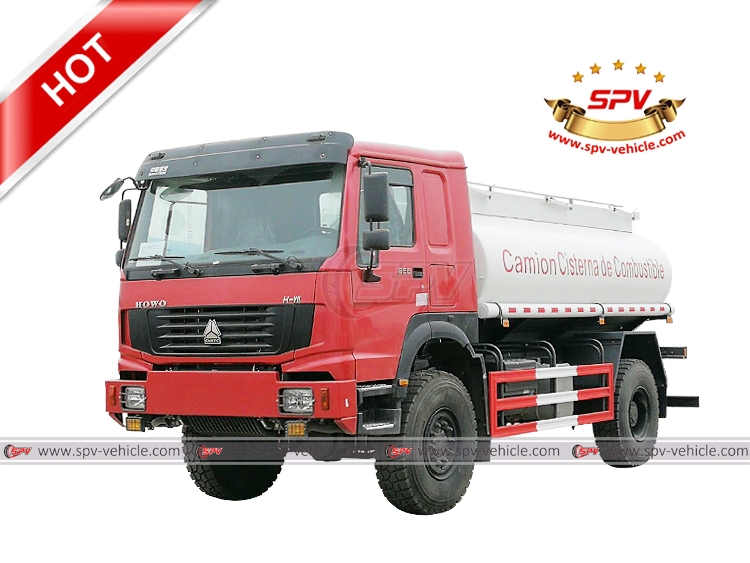

10,000 Litres 4X4 Fuel Tank Truck Siontruk - F
Photo 1: Front view of Off-road Fuel Tank Truck(10,000 litres)

10,000 litres Fuel Tank Truck Sinotruk HOWO 4X4 - Left side
Photo 2: Left side view of Off-road Fuel Tank Truck(10,000 litres)

10,000 Litres 4X4 Fuel Tank Truck Siontruk - LB
Photo 3: Left back view of Off-road Fuel Tank Truck(10,000 litres)

10,000 Litres 4X4 Fuel Tank Truck Siontruk - B
Photo 4: Back view of Off-road Fuel Tank Truck(10,000 litres)

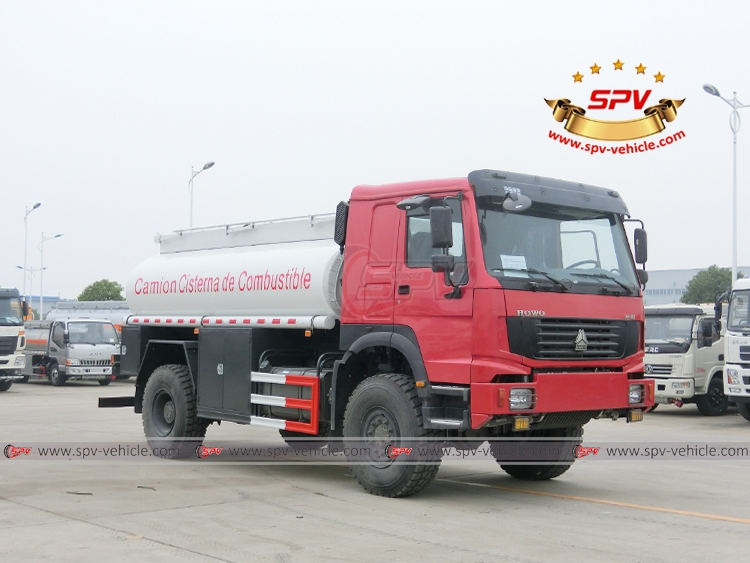

10,000 Litres 4X4 Fuel Tank Truck Siontruk - RF
Photo 5: Right front view of Off-road Fuel Tank Truck(10,000 litres)

10,000 Litres 4X4 Fuel Tank Truck Siontruk - RS
Photo 6: Right side view of Off-road Fuel Tank Truck(10,000 litres)

10,000 Litres 4X4 Fuel Tank Truck Siontruk - RB
Photo 7: Right back view of Off-road Fuel Tank Truck(10,000 litres)

10,000 litres Fuel Tank Truck Sinotruk HOWO 4X4 - Discharge Box
Photo 8: Discharge box of
Off-road Fuel Tank Truck(10,000 litres)

10,000 Litres 4X4 Fuel Tank Truck Siontruk - Hose Reel
Photo 9: Hose Reel of Off-road Fuel Tank Truck(10,000 litres)

10,000 Litres 4X4 Fuel Tank Truck Siontruk - Users Manual
Photo 10: Users' Manual of Off-road Fuel Tank Truck(10,000 litres)

10,000 Litres 4X4 Fuel Tank Truck Siontruk - In Shanghai Port
Photo 11: Off-road Fuel Tank Truck(10,000 litres) in Shanghai Port
