Road Sweeper JAC
4 CBM dustbin and 1 CBM water tank
Road Sweeper JAC
Function:

Road sweeper (also called road sweeping vehicle, road sweeper truck, sweeper truck, street-cleaner, road clean vacuum sweeper truck etc.) is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas. This unit shall be suitable for dry type cleaning job as well as dust suppression with water spray in the road side and narrow lanes.

The road sweeper truck is composed by chassis, auxiliary engine, air blower, magnetic valve, debris bin, water bin, sweeping system, suction system, water sprinkling system, hydraulic system, electrical control system, etc.

Four brooms Sweeping system and suction system combine working, high efficient. Water sprinklers equipped on brooms, suction nozzle, effective dust suppression.



Features:

---- JAC chassis - top light chassis expert, performance reliable.
---- Cummins diesel engine, super powerful, fuel efficient.
---- Dustbin and water tank are made of stainless steel, corrosion-resistant, durable.
---- All electronic control integrated inside the cabin, convenient operation.
---- Noise reduction to minimize disturbance to urban life.
---- Suction nozzle is floating type, self-adjustable for different road condition.
---- Air blower is special for road sweeper, high efficient, low noise, wearable.



Specification:

Similar Key Words: road sweeper manufacturer, road sweeper for sale, street sweepers price, road sweepers, sweeper truck, street-cleaner truck

Road Sweeper JAC ( 4 CBM dustbin & 1CBM water tank )
General Vehicle Brand SPV
Chassis Brand JAC
Overall Dimension 5850 * 2200 * 2450 mm
GVW / Kerb Weight 6,995kg / 4,565kg
Cab Cab Capacity 2 persons allowed
Air Conditioner With air conditioner
Engine Fuel Type Diesel
Engine Brand Cummins
Power 125 Ps (92 KW)
Displacement 3920 ml
Emission Standard Euro III or IV
Chassis Drive Type 4X2, left hand drive or right hand drive
Transmission 5 forward gears and 1 reverse
Wheelbase/No. of axle 3800 mm / 2
Tyre Specification 7.50R16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Dustbin Capacity 4 CBM
Dustbin Material Stainless Steel
Water Tank Capacity 1,000 Litres (About 260 gallons)
Water Tank Material Stainless Steel
Sweeping Capacity 42,000 m³/h
Sweeping Speed 3-15 km/h
Max Sweeping Width 2800mm
Brooms 2 sets at each side
Auxiliary Engine JMC engine (ISUZU technology)
77 HP (57 KW), super powerful
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
Optional ** Backup alarm can be equipped.
** Camera can be equipped.
** Air blower can be of stainless steel.

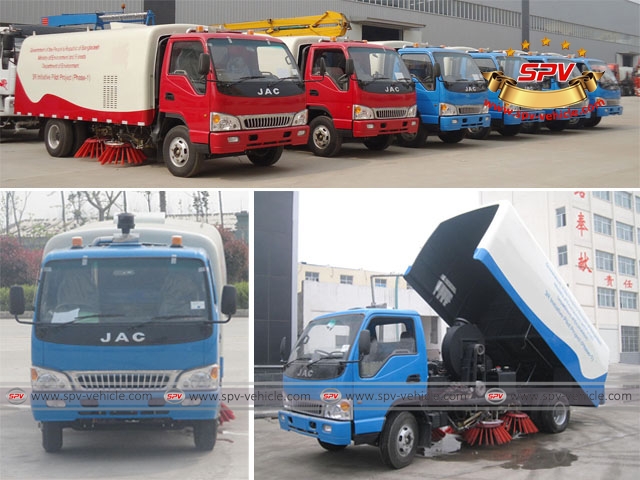

Photo 1: JAC Road Sweepers were ready for Bangladesh Government

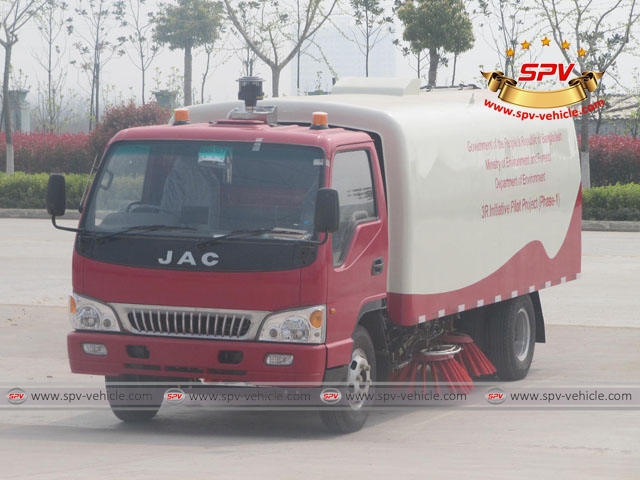

Photo 2: Front view of Road Sweepers JAC (4cbm dustbin + 1cbm water tank)

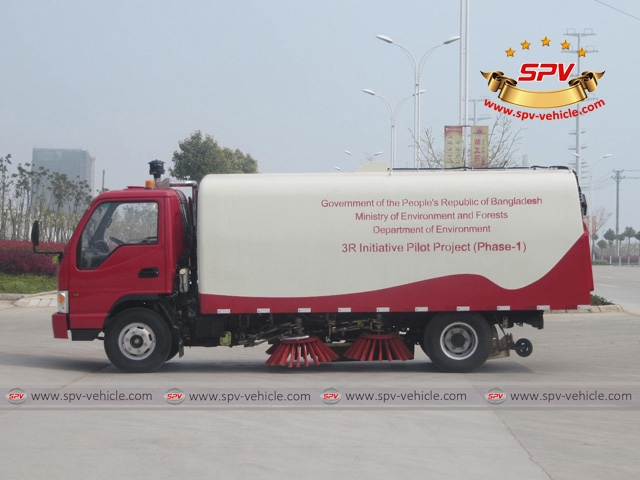

Photo 3: Side view of Road Sweepers JAC (4cbm dustbin + 1cbm water tank)

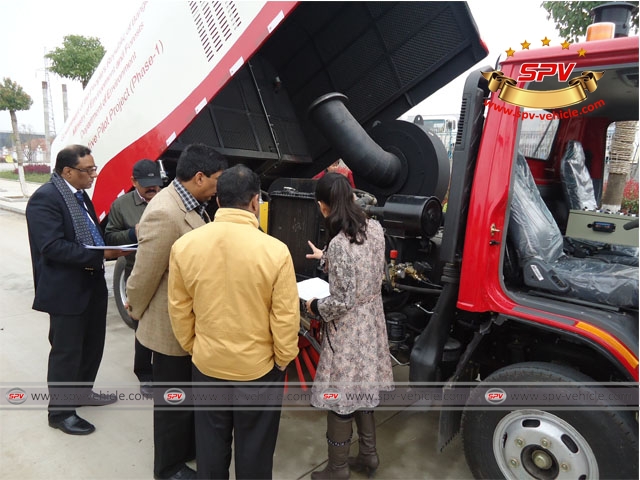

Photo 4: Clients were inspecting JAC Road Sweepers (4cbm dustbin + 1cbm water tank)

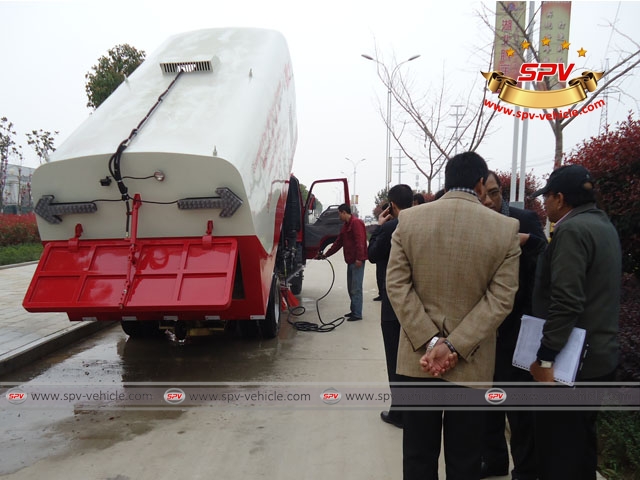

Photo 5: Clients were inspecting JAC Road Sweepers (4cbm dustbin + 1cbm water tank)

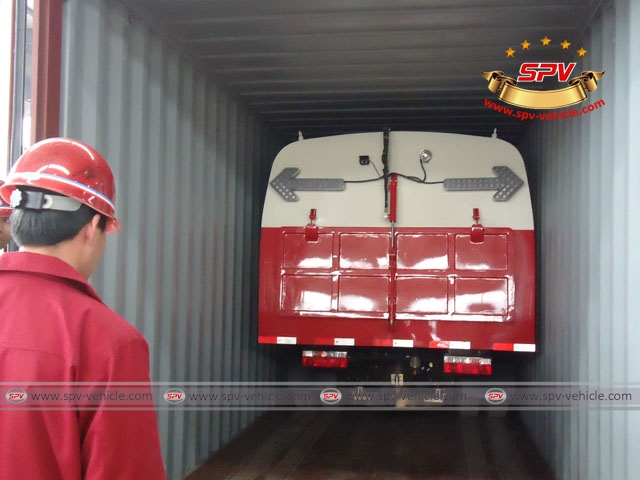

Photo 6: JAC Road Sweepers was loading into container for Bangladesh Government
