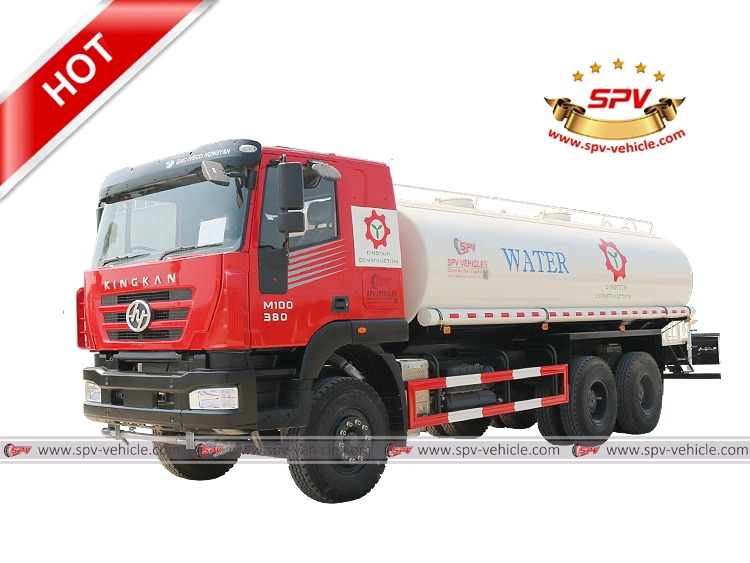

Water Spraying Truck IVECO(RHD)
20,000 Litres Watering Truck
Water Spraying Truck  IVECO(RHD)
Function:

Water spraying truck (also called water truck tank, water distribution truck, truck water tank, truck tanker, water tanker bowser, water tank lorry, irrigation water truck, water transport truck) is used to transport and supply water, whatever industrial or agriculture water, widely used in construction engineering, farm irrigation, draught relief, etc.

With non-toxic treatment inside tank or tank made of stainless steel, the water tank truck can be suitable for transporting drinking water, called as potable water tanker, drinking water tanker, stainless steel water tanker, agua potavel, safe to human body.

Water tanker can also be equipped with special sprayers to achieve front flush, rear sprinkle, side spray, to sprinkle and clean the roads, streeets for environmental sanitation and protection, called as water sprinkler, water spray truck.
With rear working platform and high cannon, the Water lorry can also be used to water the plants, even high trees in virescence, called as watering truck.

Water bowser can be also equipped with pesticide spraying machine, to be used to spray pesticide in agriculture pest control field.

Features:

---- IVECO CURSOR engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- Special fire pump, super powerful, efficient pump in and out
---- Strong, durable, perfect performance
---- Prolonged service life



Specification:

Similar Keywords:  IVECO water camion, water truck tank, water carrying truck, truck mounted water tank, mobile water tank, vehicle for watering plant, water truck for dust control

Water Spraying Truck IVECO (20,000 litres)
General Vehicle Brand SPV
Chassis Brand IVECO
Overall Dimension 10080 * 2550 * 3050 mm
GVW / Kerb Weight 25,000 kg / 13,680 kg
Cab Cab Capacity 2 persons allowed with 1 sleeper
Air Conditioner W/ air conditioner
Engine Fuel Type Diesel
Engine Brand IVECO Cursor engine
Power 380 Hp (280 KW)
Displacement 8709 ml
Emission Standard Euro III
Chassis Drive Type 6X4, right hand drive
Transmission 12-speed forward, 2 reverse
No. of axle 3
Tyre Specification 12.00R20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 80 km/h
Paint Metallic paint
Superstructure Tank Capacity 20,000 Litres ( About 5,300gallons)
Tank Material & Structure Carbon steel, Inner baffles inside tank for prevention of longitudinal surge during moving.
Water Pump Chinese top water pump, PTO driven.
Tank Interior Treatment Anti-corrosion treatment
Hose High quality strengthened hoses, 6 m X 2 pcs, with aluminum coupling.
Optional ** Tank material could be stainless steel or carbon steel with non-toxic treatment for potable water, safe for human body.

Water Spraying Truck IVECO - RF
Photo 1: To Malawi - 2 units of Water Spraying Trucks IVECO - Right front view

Water Spraying Truck IVECO - RB
Photo 2: To Malawi - 2 units of Water Spraying Trucks IVECO - Right back view

Water Spraying Truck IVECO - Final Test
Photo 3: To Malawi - 2 units of Water Spraying Trucks IVECO - Left front view

Water Spraying Truck IVECO - LB
Photo 4: To Malawi - 2 units of Water Spraying Trucks IVECO - Left back view

Water Spraying Truck IVECO - B
Photo 5: To Malawi - 2 units of Water Spraying Trucks IVECO - Back view

Water Spraying Truck IVECO - F
Photo 6: Front view of Water Spraying Trucks IVECO(Right hand drive)

Water Spraying Truck IVECO - LS
Photo 7: Left side view of Water Spraying Trucks IVECO(Right hand drive)

Water Spraying Truck IVECO - RHD - LB
Photo 8: Left back view of Water Spraying Trucks IVECO(Right hand drive)

Water Spraying Truck IVECO - RHD - RF

Photo 9: Right front view of Water Spraying Trucks IVECO(Right hand drive)

Water Spraying Truck IVECO - RHD - RS
Photo 10: Right side view of Water Spraying Trucks IVECO(Right hand drive)

Water Spraying Truck IVECO - RHD - RB
Photo 11: Right back view of Water Spraying Trucks IVECO(Right hand drive)

Water Spraying Truck IVECO - Details
Photo 12: Detail view of Water Spraying Trucks IVECO(Right hand drive)
