Garbage Compactor Semitrailer
45 CBM Compressed Garbage Semitrailer
Garbage Compactor Semitrailer
Function:

Garbage compactor semitrailer (also called compressd garbage semitrailer, solid waste transfer semi-trailer, trash tansfer compactor semitrailer, garbage semitrailer, biomass transporting trailer truck, biodegradable waste compacting trailer, refuse compress transfer semitrailer , compression discharge solid waste semitrailer, semi trailer garbage transfer compactor) is designed to collect and transport municipal solid waste.

Garbage compactor semitrailer is composed of hermitical garbage box, hydraulic system and operating system, which could apply pressure to the waste to break down bulky items, to load and transport more garbage by one time. Dirty liquid flows into waste sink, perfectly preventing re-pollution. When arriving at destination, the garbage can be dumped completely. It is ideal solution for solid waste collection.

The operation system could be manual or electrical control.


Features:
---- Nice shape, rational structure
---- High compression ratio
---- High quality hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life
Specification:
Similar Key Words: garbage compacting semitrailer, trash compactor semitrailer, waste compactor semitrailer, refuse compactor semitrailer, compactor semitrailer, rear loader garbage semitrailer, dustbin transfer compressed smeitrailer, woody biomass transporting trailer, compression garbage semitrailer.

  Garbage Compactor Semitrailer ( 45 CBM)
General Vehicle Brand SPV
Overall Dimension 13200 * 2550 * 3950 mm
GVW / Kerb Weight 40,000 kg / 11,600 kg
Chassis No. of Axle 3
Tyre Specification 12R22.5
Tyre Number 12 tyres and 1 spare tyre
Superstructure Waste Box Capacity 45 CBM
Waste Box Material Carbon steel
Waste Box Thickness Side :5mm ; Bottom:5mm
Electric System CAN electric automatic control
System Pressure 18/21 Mpa
External Power By an auxiliary engine
External Power Supply Voltage 380 V
Maximum Design Speed 90 km/h

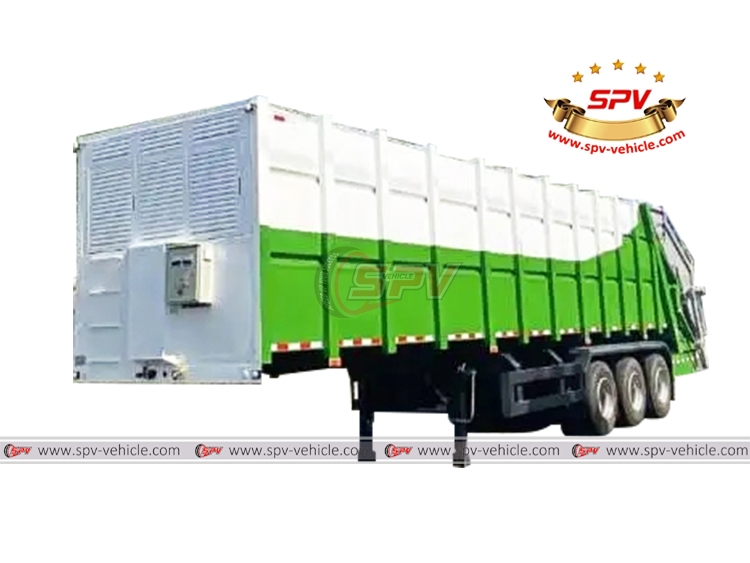

SPV-Vehicle - Garbage Compacting Semitrailer - Left Front Side View
Garbage Compactor Semitrailer - Left Front Side View

SPV-Vehicle - 45 CBM Garbage Compacting Semitrailer - Left Side View
Compressed Garbage Semitrailer - Left Side View

SPV-Vehicle - Waste Compactor / Transfer Semitrailer - Left Bakc Side View

Solid Waste Transfer Semitrailer - Left Back Side View


SPV-Vehicle - Biomass Transporting Trailer Truck - Left Front Side View
Woody Biomass Transporting Trailer - Left Front Side View

SPV-Vehicle - Biomass Transporting Trailer Truck - Left Side View
Biomass Transporting Trailer Truck - Left Side View


SPV-Vehicle - Biomass Transporting Trailer Truck -Left Back Side
Biodegradable Waste Compacting Trailer - Left Back Side View

 SPV-Vehicle - Garbage Semi Trailer - Right Front Side View
 Garbage SemiTrailer - Right Front Side View
