5Tons Truck Mounted Crane ISUZU, Knuckle Boom Crane, Unic Crane from China | SPV
Home > Construction Truck > Truck Mounted Crane

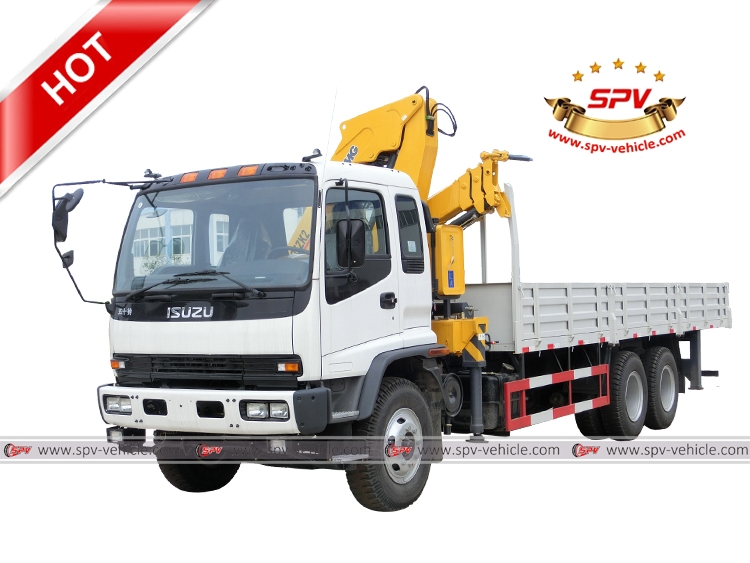

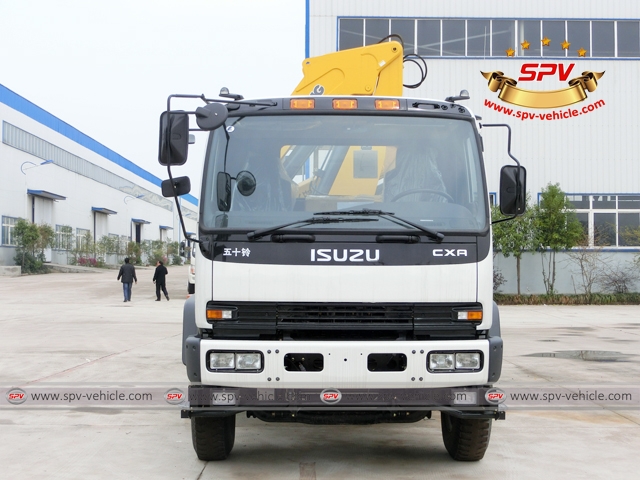

Truck Mounted Crane ISUZU
5 Tons Knuckle Boom Crane truck
Truck Mounted Crane ISUZU
Function:
Truck mounted crane (also called unic crane, cranetruck, lorry mounted crane, truck cargo with loader crane, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.
Features:
---- ISUZU chassis ensures perfect driving performance.
---- ISUZU engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Massive, durable, perfect performance
---- Prolonged service life
---- Premium cranes Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.

Crane features:
---- Advanced technology, stable performance, high efficiency
---- Wide and high-speed rotary, convenient operation
---- Unique design, small volume, low noise.
---- Key hydraulic components are of top international technologies, which make the operation safe and reliable.
Specification:
Similar Key Words: Truck mounted crane, unic crane, crane mounted truck, lorry mounted crane, crane truck, knuckle pickers, crane mounted lorry, truck cargo with loader crane, knuckle boom crane on truck chassis, knuckle boom truck mounted crane, truck mounted hydraulic crane, truck with mounted back crane, crane mounted cargo truck, boom crane

Truck mounted Crane ISUZU (Knuckle Boom Crane 5Tons)
General Vehicle Brand SPV
Chassis Brand ISUZU
Overall Dimension 9535 * 2465 * 3850 mm
GVW / Kerb Weight 25,000 kg / 11,511 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Equipped Air conditioner
Engine Fuel Type Diesel
Engine Brand ISUZU
Power 280 Hp (206 KW)
Displacement 7790 ml
Emission Standard Euro IV
Chassis Drive Type 6X4, left hand drive
Transmission 9-speed front, 1 reverse
Wheelbase/No. of axle 4650+1300 mm / 3
Tyre Specification 10.00-20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Cargo Box Dimension 6000 X 2300 X 450 mm
Crane Brand XCMG
Max Lifting Capacity 5000 kg
Lifting Capacity
@ Working Radius
5000 kg @ 2.10 m;  2400kg @ 4.44 m;
1600 kg @ 6.20 m;  1050kg @ 8.01m
Max. Lifting Moment 10.5 T.M
Max. Working Height 10.5 m
Max. Working Radius 8 m
Slewing Angle 360°all rotation
All other standard accessories: Tool kit, English manual
Optional ** Hydraulic tipper box is optional.
** Box thickness according to requirement.
** Box height could be nominated.
