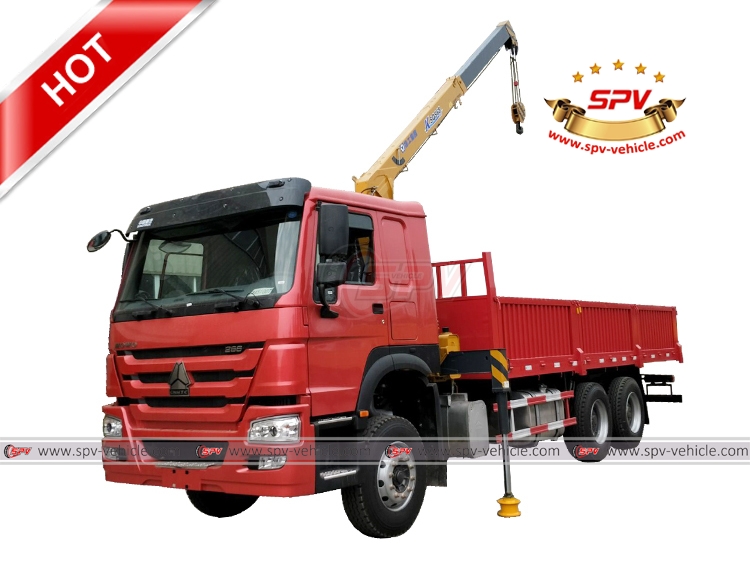

Cargo Truck with Crane Sinotruk
3.2 Tons Truck Mounted Crane
Cargo Truck with Crane Sinotruk
Function:
Cargo truck with crane (also called truck mounted crane, crane mounted cargo truck, lorry mounted crane, truck mounted boom lift, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:
Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton
Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.

The cranes can be of famous brands as Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.
Features:
---- Sinotruk HOWO chassis ensures perfect driving performance.
---- Sinotruk engine, super powerful; reliable performance.
---- High strength box body.
---- Premium cranes Palfinger (Canada), Unic (Japan), Tadano (Japan), XCMG (China top brand), Zoomlion, etc.
---- Key hydraulic components are of top international technologies, which make the operation safe and reliable.
Specification:

Cargo Truck with Crane Sinotruk (3.2 Tons )
General Vehicle Brand SPV
Chassis Brand Sinotruk HOWO
Overall Dimension 100300 x 2510 x 3500 mm
GVW / Kerb Weight 25,000 kg / 13,100 kg
Cab Cab Capacity 2 person's seats with 1 sleeper
Air Conditioner Equipped
Engine Fuel Type Diesel
Engine Brand Sinotruk Engine
Power 266 Hp (196 KW)
Displacement 9726 ml
Emission Standard Euro II
Chassis Drive Type 6X4, left hand drive
Transmission 10 - speed forward, 2 reverse
Wheelbase/No. of axle 4300+1400 mm / 3
Tyre Specification 11.00R22.5, radial tyre, super wearable
Tyre Number 10 tyres and 1 spare tyre
Max Speed 102 km/h
Paint Metallic paint
Superstructure Cargo Box Dimension 6600 X 2300 X 800 mm
Crane Type Telescopic type
Boom No. Two booms, one main boom,
one telescopic boom
Max Lifting Capacity 3.2 Tons
Crane Capacity 3200 kg @ 2.10 m
950 kg @ 5.35 m
Min Rated Working Range 2.1 m
Max. Working Range 5.36 m
Max Lifting Height 6.6 m
Slewing Angle 360°all rotation
All other standard accessories: Tool kit, English manual
Optional 1. Knuckle boom crane.
2. Hydraulic tipper box.
3. Box thickness according to requirement.
4. Box height could be nominated.


Cargo Truck With Crane - F
Photo 1: Front view of Cargo Truck with Crane(3.2 Ton)

Cargo Truck With Crane  - LB
Photo 2: Left back view of Cargo Truck with Crane(3.2 Ton)

Cargo Truck With Crane - B
Photo 3: Back view of Cargo Truck with Crane(3.2 Ton)

Cargo Truck With Crane  Sinotruk - RF
Photo 4: Right front view of Cargo Truck with Crane(3.2 Ton)

Cargo Truck With Crane  Sinotruk - RB
Photo 5: Right back view of Cargo Truck with Crane(3.2 Ton)
