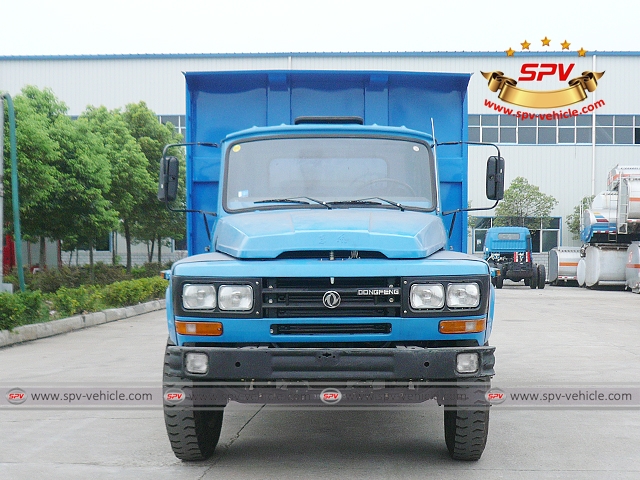

Tip Truck Dongfeng
Dump Truck (Volume: 7m³)
Tip Truck Dongfeng
Function:

Tipper (also called dumptruck, tipper truck, dump tipper, side-turn tipper, dump truck tipping, tipper and lorry, dumper, dump tipper, tip truck, side-turn tipper, dump truck tipping, tipper and lorry, dumper, tipper lorry) is a truck used for transporting loose material, such as sand, gravel, coal, dirt, etc.

A typical dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic pistons to lift the front. Or hinged at side with hydraulic pistons to lift the side.



Features:

---- Dongfeng chassis ensures perfect driving performance.
---- Dongfeng chaoyang engine, super powerful; reliable performance.
---- Nice shape, rational structure
---- High strength box body
---- Excellent Chinese brand hydraulic piston
---- Massive, durable, perfect performance
---- Prolonged service life



Specification:
 Similar Key Words: Dumptruck, tipper, tipper truck, dump tipper, side-turn tipper, dump truck tipping, tipper and lorry, dumper, dump tipper, tip truck, side-turn tipper, dump truck tipping, tipper and lorry, dumper, tipper lorry


Tip Truck Dongfeng  ( Volume: 7m³ )
General Vehicle Brand SPV
Chassis Brand Dongfeng
Overall Dimension 6650 * 2500 * 2780 mm
GVW / Kerb Weight 9,450 kg / 5,400 kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand Cummins engine
Power 170 Hp (125 KW)
Displacement 5900 ml
Emission Standard Euro III
Chassis Drive Type 4X2, left hand drive
Transmission 6-speed front, 1 reverse
Wheelbase/No. of axle 3950 mm / 2
Tyre Specification 9.00-20
Tyre Number 6 tyres and 1 spare tyre
Max Speed 85km/h
Paint Metallic paint
Superstructure Box Dimension 3850*2250*800 mm
Bottom Board Thickness 4 mm
Side Board Thickness 3 mm
Hydraulic Cylinder Of Hyva or Chinese reliable brand
All other standard accessories: Tool kit, English manual
Optional ** Box thickness could be nominated.
** Box height could be nominated.
** Tip way: back or side.
