Concrete Mixer Truck Beiben
10 m³ Transit Mixer North Benz
Concrete Mixer Truck Beiben
Function:

Concrete mixer vehicle (also called cement mixer vehicle, transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck) is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.

For the construction place which has  limited height and width  requirements for the vehicle, small concrete mixer trucks (2m³  to 6 m³)  that are perfect for the demands.

Features:

---- Nice shape, rational structure
---- High-intensity drum material
---- Imported original hydraulic system
---- Optimized mixing blades, low material residue
---- High quality parts,  massive, durable, perfect performance
---- Prolonged service life



Specification:

Concrete Mixer Truck Beiben (10 CBM)
General Vehicle Brand SPV
Chassis Brand Beiben / North Benz
Overall Dimension 9800 * 2500 * 4000 mm
GVW / Kerb Weight 25,000 kg / 14,000 kg
Cab Cab Capacity 2 persons seats with 1 sleeper
Air Conditioner Equipped
Engine Fuel Type Diesel
Engine Brand Weichai engine
Power 340 Hp (249 KW)
Displacement 9726 ml
Emission Standard Euro III
Chassis Drive Type 6X4, left hand drive
Transmission 9-speed forward, 1 reverse
Wheelbase/No. of axle 3800+1450 mm / 3
Tyre Specification 12.00R20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 90 km/h
Paint Metallic paint
Superstructure Mixing Capacity 10 m³
Drum Material Alloy steel
Hydraulic Motor Imported Brand
HydraulicPump Imported Brand
Reduction Box Imported Brand
Radiator High Class Chinese Brand
Rest Rate ≤0.5%
Water Supply System Air pressure
Water Tank Volume 400 L
All other standard accessories: manhole, ladder, inlet, discharge…….
Optional ** Hydraulic system brand could be PMP, ZF, Eaton, Rexroth, etc. Or other opointed brand.

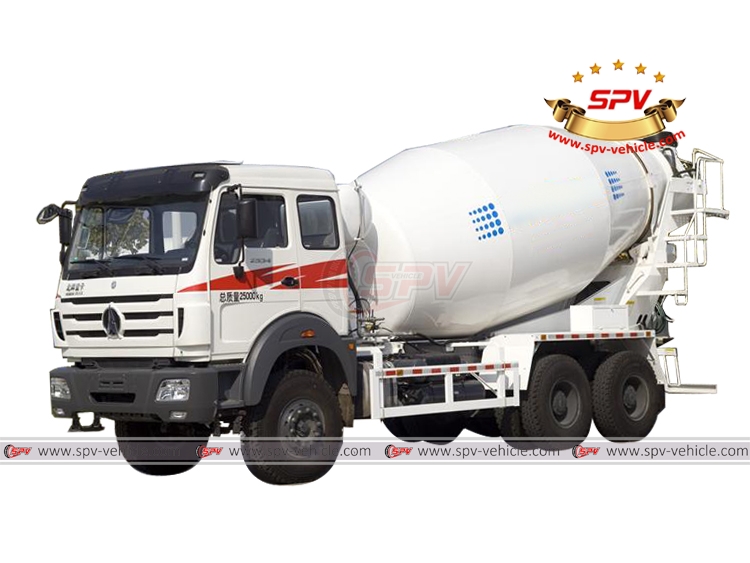

Concrete Mixer Truck Beiben - RF
Right Front View of Concrete Mixer Truck Beiben

Concrete Mixer Truck Beiben - RB
Right Back View of Concrete Mixer Truck Beiben

Concrete Mixer Truck Beiben - Bulk Shipment
10 CBM Concrete Mixer Truck Beiben - Bulk Shipment
