Home > Construction Truck > Concrete Mixer Truck
Cement Transmit Vehicle JAC
10 m³ Concrete Mixer
Cement Transmit Vehicle JAC
Function:

Concrete mixer truck (also called transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck) is made to transport and mix concrete up to the construction site.The concrete mixing transport truck maintains the material's liquid state through agitation, or turning of the drum, until delivery.

For the construction place which has  limited height and width  requirements for the vehicle, small concrete mixer trucks (2m³  to 6 m³)  that are perfect for the demands.


Features:

---- Nice shape, rational structure
---- High-intensity drum material
---- Imported original hydraulic system
---- Optimized mixing blades, low material residue
---- High quality parts,  massive, durable, perfect performance
---- Prolonged service life



Specification:

 Similar Key Words:  transit mixer, concrete transport truck, construction vehicle, mixer truck, cement mixer, cement mixer truck, concrete mixer truck, mixer truck, volumetric mixer truck, agitator truck

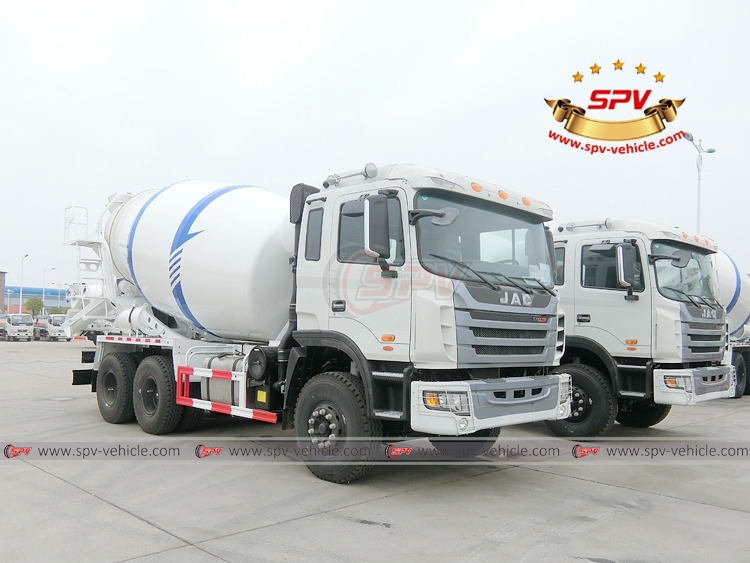

Cement Transmit Vehicle JAC (10 CBM)
General Vehicle Brand SPV
Chassis Brand JAC
Overall Dimension 9,645* 2500 * 3900 mm
GVW / Kerb Weight 24,500kg / 14,440kg
Cab Cab Capacity 3 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand Weichai engine
Power 340 Hp (250 KW)
Displacement 9726 ml
Emission Standard Euro III
Chassis Drive Type 6X4, left or right hand drive
Transmission 9-speed front, 1 reverse
Wheelbase/No. of axle  4000+1350 mm / 3
Tyre Specification 11.00-20
Tyre Number 10 tyres and 1 spare tyre
Max Speed 80 km/h
Paint Metallic paint
Superstructure Mixing Capacity 10 m³
Drum Material Alloy steel
Hydraulic Motor Imported Brand
HydraulicPump Imported Brand
Reduction Box Imported Brand
Radiator High Class Chinese Brand
Rest Rate ≤0.5%
Water Supply System Air pressure
Water Tank Volume 400 L
All other standard accessories: manhole, ladder, inlet, discharge…….
Optional ** Hydraulic system brand could be PMP, ZF, Eaton, Rexroth, etc. Or other opointed brand.
