ShangHai SPV Special Vehicle Co., Ltd.
Road wrecker with crane (also called multi-function towing truck, breakdown truck, recovery truck, breakdown lorry, wrecker, police rescue truck, flatbed tow truck, boom truck, wheel-lift wrecker ) is used to transport motor vehicles or the vehicles that are broken down.
Based on the type or size of vehicle to be towed, wreckers are usually designed into two types. One is slidebed tow truck with wheel-lift function; another one is wheel-lift units that offer a combination boom with sling.
---- ISUZU chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- High quality hydraulic system
---- Massive, durable, perfect performance
---- Prolonged service life
| Road Wrecker with Crane ISUZU ( 3 Ton ) | ||
| General | Vehicle Brand | SPV |
| Chassis Brand | ISUZU | |
| Overall Dimension | 7450 * 2330 * 2520 mm | |
| GVW / Kerb Weight | 5,495 kg / 4,165 kg | |
| Cab | Cab Capacity | 2 persons allowed |
| Air Conditioner | W/ air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4HK1 | |
| Power | 120 Hp (88 KW) | |
| Displacement | 2999 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU gear box, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 100 km/h | |
| Paint | Metallic paint | |
| Superstructure | Towing Type | Slidebed with wheel-lift |
| Flatbed Payload Capacity | 3 Ton | |
| Flatbed Length | 4.2 M | |
| Towing capacity | 3 Ton | |
| Crane Type | Telescopic boom crane | |
| Max. Lifting Capacity | 2 Ton | |
| Max. Lifting Height | 9 m | |
| Crane Capacity |
2000 kg @ 2.1 m
1000 kg @ 3 m
400 kg @ 5.4 m
255 kg @ 7.73 m
|
|
| All other standard accessories: Binding belt, auxiliary sliding board, spinning cylinder, L-type fork, tyre cover…… | ||
| Optional |
** LED alarm lamp is optional. ** Crane could be installed on flatbed wrecker. |
|

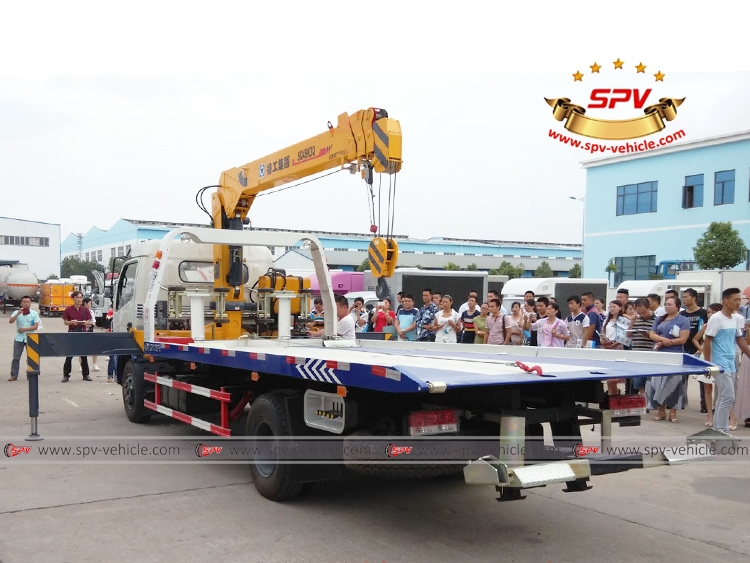

Photo 1: Back view of ISUZU road wrecker with crane
Photo 2: Operation detailed view of ISUZU road wrecker with crane
