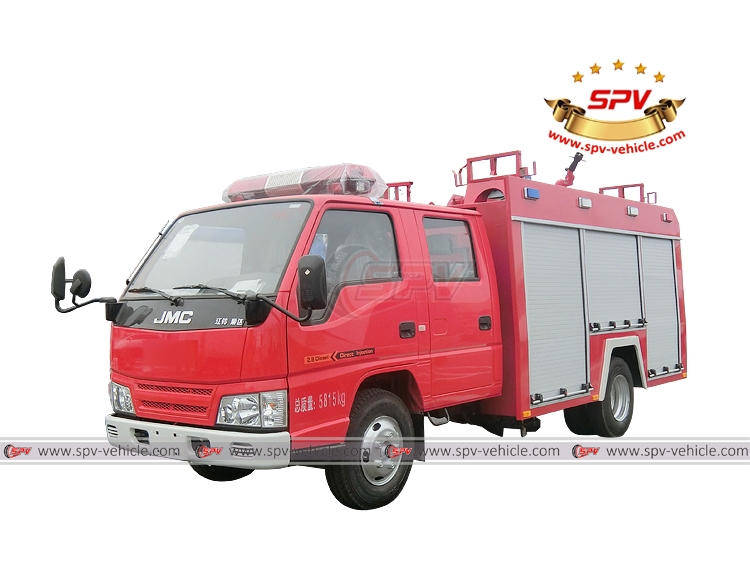

Fire Engine JMC
2,500 Litres Fire Water Truck
Fire Engine JMC
Function:

Fire engine(also called fire water truck, fire fighting water truck, fire fighting tanker, water tank fire truck, fire appliance, fire fighting engine, fire-extinguishing water truck, water tender, fire service truck, fire hydrant and fire water tanker) is a vehicle designed primarily for fire fighting operations - to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.

Fire fighting truck can be divided into many types:

1. According to vehicle size, there are mini fire fighting truck, light fire fighting truck, medium fire fighting truck, heavy-duty fire fighting truck.
2. According to chassis drive type, there are 4X2 fire fighting truck, 6X4 fire fighting truck, 8X4 fire fighting truck, and off-road type 4X4, 6X6 fire fighting truck.
3. According to chassis brand, there are ISUZU fire fighting truck, Dongfeng fire fighting truck,  Foton fire fighting truck, FAW fight fighting truck, Shacman fire fighting truck, sinotruk fire fighting truck, Mercedes fire fighting truck, etc.
4. According to fire agent,  there are water tank fire fighting truck, dry powder fire fighting truck, water/foam fire fighting truck.

Features:

---- JMC chassis, perfect performance.
---- JMC engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.



Specification:

Fire Engine JMC  (2,500 Litres)
General Vehicle Brand SPV
Chassis Brand JMC
Overall Dimension 6200 * 2100 * 2900  mm
GVW / Kerb Weight 7,000 kg / 4,200 kg
Cab Cab Capacity 2 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand JMC engine
Power 115 Ps (85 KW)
Displacement 2771 ml
Emission Standard Euro III
Chassis Drive Type 4X2, left hand or right drive
Transmission 5 Speed forward, 1 reverse
Wheelbase 3360 mm
Tyre Specification 7.00-16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 100 km/h
Paint Metallic paint
Superstructure Water Capacity 2,500 Litres (About 660 gallons)
Foam Capacity None
Tank Material Carbon steel
Fire Pump Flow speed 20L/s
Pressure 1.0MPa
Fire Cannon Flow speed Water 20 L/s
Foam /
Shot Water 48 m
Foam /
Suction Head 6 m
Hose High quality, wire strengthened hose, with cooper wire, anti-static
All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include  shovel, pike poles, axes and cutting equipment, halligan bars.…
Optional Ladders, floodlights...

2,500 Litres Fire Engine JMC - F

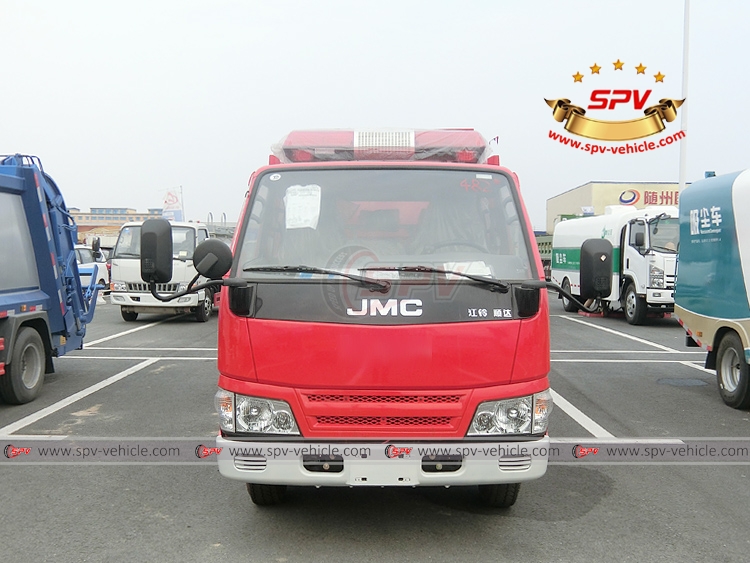

Photo 1: Front view of Fire Engine JMC(2,500 Litres)

2,500 Litres Fire Engine JMC - LB

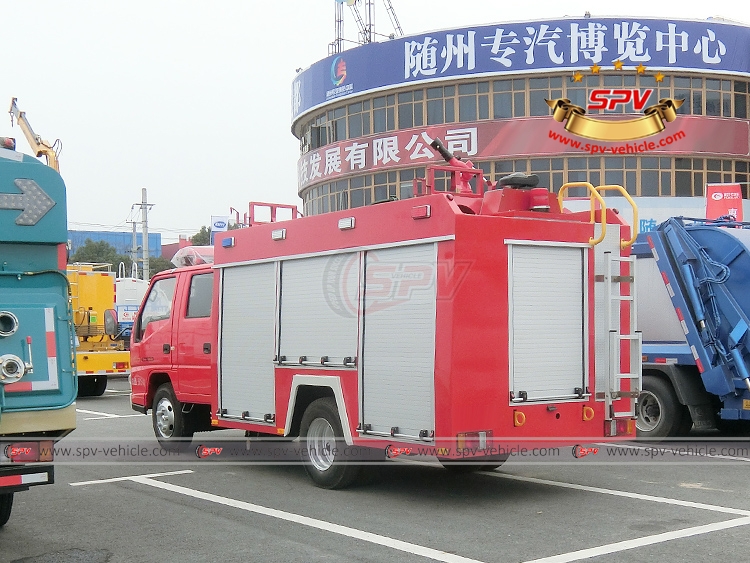

Photo 2: Left back view of Fire Engine JMC(2,500 Litres)

2,500 Litres Fire Engine JMC - RF

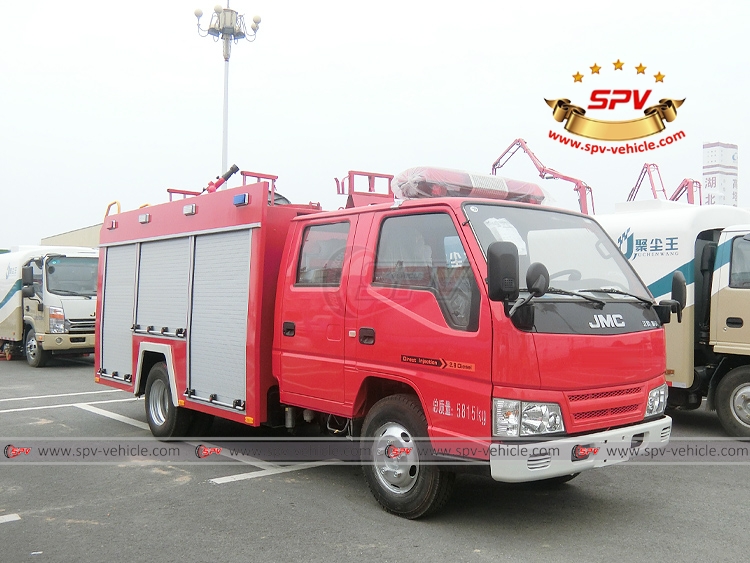

Photo 3: Right front view of Fire Engine JMC(2,500 Litres)

2,500 Litres Fire Engine JMC - RB

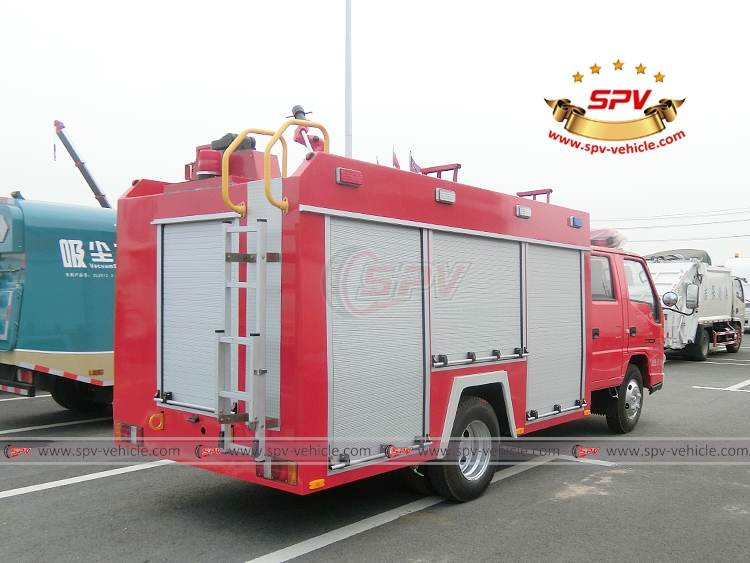

Photo 4: Right back view of Fire Engine JMC(2,500 Litres)
