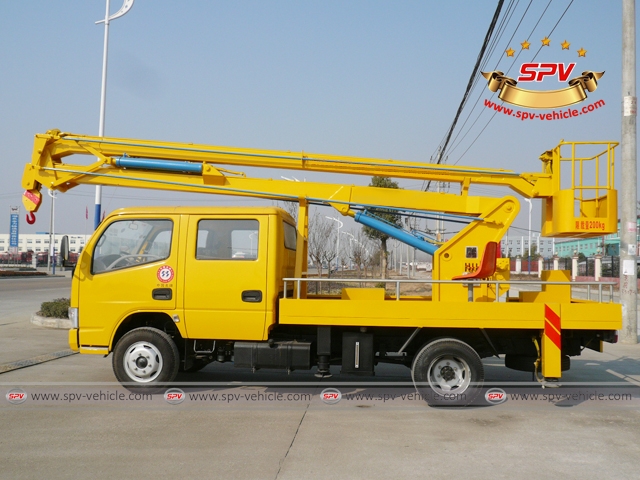

8-12M Mobile Hydraulic Beamlifter, Truck Mounted Platform, Aerial Working Platform form China

Truck mounted platform (also called mobile hydraulic beamlifter, aerial working platform, articulated telescopic extension boom, articulated basket platform, man lift truck, lifting platform vehicle, bucket boom truck, insulated aerial platform) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

Features:

---- The working cage can be made of steel structure or reinforced fiberglass.
---- Dongfeng chassis ensures perfect driving performance.
---- Dongfeng Chaoyang engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Massive, durable, long service life.

Specification:

Truck Mounted Platform Dongfeng (8-12 M)
General	Vehicle Brand	SPV
	Chassis Brand	Dongfeng
	Overall Dimension	7350 * 2000 * 3100 mm
	GVW / Kerb Weight	5,825 kg / 5,500 kg
Cab	Cab Capacity	2+3 persons allowed
Cab	Air Conditioner	Air conditioner is optional
Engine	Fuel Type	Diesel
	Engine Brand	Dongfeng Chaoyang engine
	Power	95Ps (70KW)
	Displacement	3856 ml
	Emission Standard	Euro III
Chassis	Drive Type	4X2, left or right hand drive
	Transmission	5-speed front, 1 reverse
	Wheelbase/No. of axle	3300 mm / 2
	Tyre Specification	7.00-16
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Working Cage	200 kg capacity, anti-slip floor
	Working Height	≤12 M
	Slewing	360° continuous rotation with base turntable
	Control	Control both on the ground and in the cage
	Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure.
	Emergency stop switches at base and operator’s cage.
Optional	** Hoist hook with cables can be equipped for the function of a crane.
