Telescopic Beam Lifter Dongfeng
16M Hydraulic Man Lift Truck
Telescopic Beam Lifter Dongfeng
Function:

Telescopic beam lifter truck (also called aerial telescopic platform truck, hydraulic aerial cage, overhead working truck, truck platform, beam lifter vehicle, truck mounted insulated aerial lift, telescopic boom truck, high-altitude operation truck) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.

Features:

---- The working cage can be made of steel structure or reinforced fiberglass.
---- Dongfeng chassis ensures perfect driving performance.
---- Dongfeng Chaoyang engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- Massive, durable, long service life.


Specification:

Telescopic Beam Lifter Dongfeng (16 M)
General Vehicle Brand SPV
Chassis Brand Dongfeng
Overall Dimension 7400 x 2300 x 3300 mm
GVW / Kerb Weight 5,810 kg / 5,485 kg
Cab Cab Capacity 2+3 persons allowed
Air Conditioner Air conditioner is optional
Engine Fuel Type Diesel
Engine Brand Dongfeng Chaoyang engine
Power 95 Ps (70 KW)
Displacement 3856 ml
Emission Standard Euro III
Chassis Drive Type 4X2, left hand drive
Transmission 5 - speed forward, 1 reverse
Wheelbase/No. of axle 3300 mm / 2
Tyre Specification 6.50-16
Tyre Number 6 tyres and 1 spare tyre
Max Speed 95 km/h
Paint Metallic paint
Superstructure Cage Rated Capacity 200 kg
Working Height 16 m
Beam The beam is articulated & telescopic extension type, hydraulic actuated and controlled
Slewing Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.
Control Control both on the ground and remote control in cage
Safety Device Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump
Leveling System Hydraulic stabilizer to level the vehicle on uneven ground
Optional Insulated cage; Wireless remote control system

16M Telescopic Beam Lifter Dongfeng-LS
Photo 1: Left side view of Dongfeng Telescopic Beam Lifter Truck (16 M)

16M  Telescopic Beam Lifter Dongfeng - Operation
Photo 2: Dongfeng Telescopic Beam Lifter Truck (16 M) - Operation

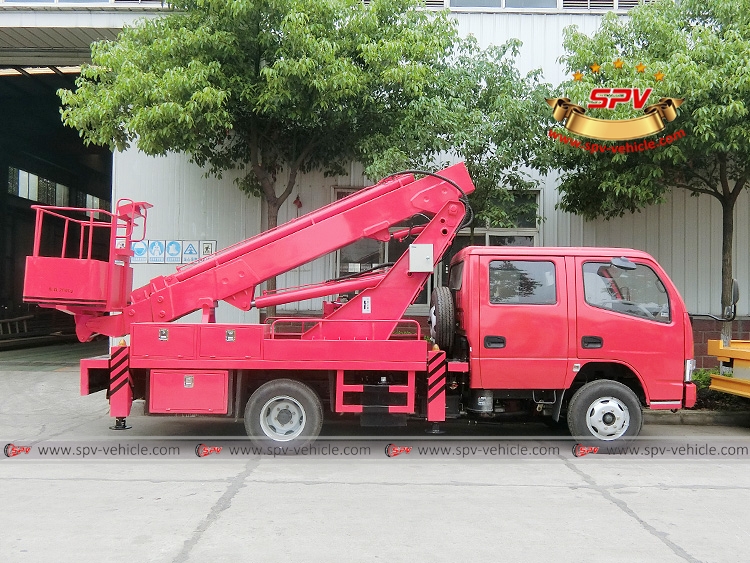

16M  Telescopic Beam Lifter Dongfeng-RS
Photo 3: Right side view of Dongfeng Telescopic Beam Lifter Truck (16 M)

16M  Telescopic Beam Lifter Dongfeng-RB
Photo 4: Right back view of Dongfeng Telescopic Beam Lifter Truck (16 M)
