Function:
Man lift (also called lifting platform truck, aerial platform truck, aerial lift, hydraulic beam lifter, hydraulic aerial platform vehicle, aerial boom lift, bucket truck, overhead working truck, sky lift, van mounted lift, etc.) is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
SPV aerial work platform are available of 6m-8m, 8m-12m, 14m-16m, 18m, 20m-22m, 24-26m. Insulated cage is optional.
Features:
---- Dongfeng chassis ensures perfect driving performance;
---- Dongfeng engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- 2pcs of outriggers to ensure operation stabilized, hydraulically extend and retract.
Specification:
|
Man Lift Dongfeng (6M-8M) |
|
General |
Vehicle Brand |
SPV |
|
Chassis Brand |
Dongfeng |
|
Overall Dimension |
5995 x 2090 x 2990 mm |
|
GVW / Kerb Weight |
4,495 kg / 3,840 kg |
|
Cab |
Cab Capacity |
2+3 persons allowed |
|
Air Conditioner |
With air conditioner |
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
Dongfeng |
|
Power |
95Ps (70KW) |
|
Displacement |
3856 ml |
|
Emission Standard |
Euro III , Euro IV |
|
Chassis |
Drive Type |
4X2, left hand drive or right-hand drive |
|
Transmission |
5-forward gears & 1 reverse |
|
Wheelbase/No. of axle |
3360 mm / 2 |
|
Tyre Specification |
7.00-16 or 7.00R16 |
|
Tyre Number |
6 tyres and 1 spare tyre |
|
Max Speed |
95 km/h |
|
Paint |
Metallic paint |
|
Superstructure |
Cage Rated Capacity |
200 kg |
|
Working Height |
6M -8 M |
|
Outriggers |
2pcs, hydraulically extend and retract |
Similar Key Words: Boom lift, bucket truck, bucket boom truck, aerial working platform (truck mounted), truck mounted aerial platform, truck mounted aerial lift, aerial platform truck, hydraulic aerial truck, hydraulic lifting platform truck, telescopic platform truck.

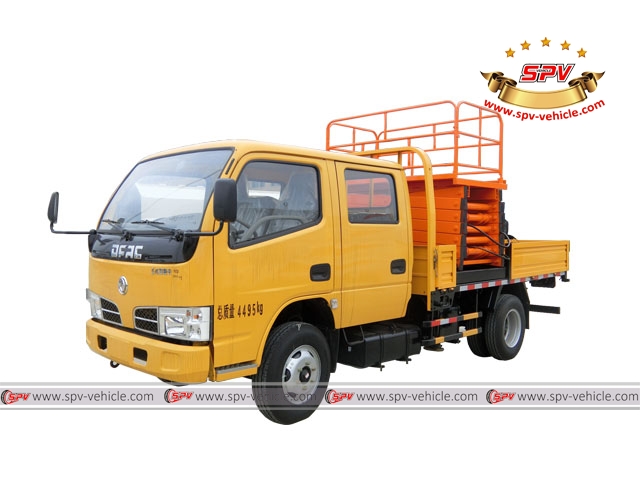

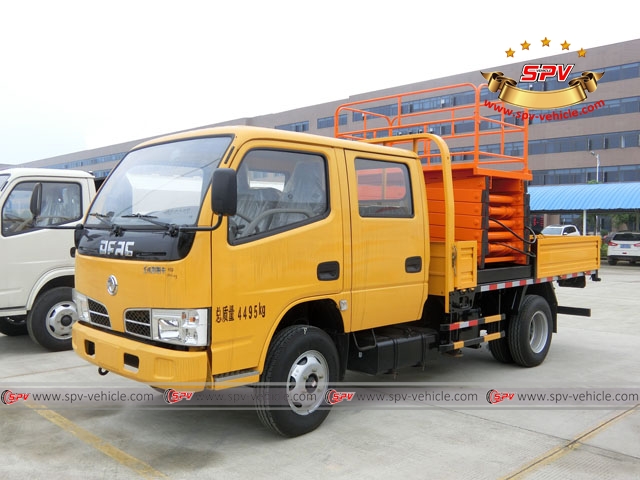

Photo 1: Front view of 6-8m Dongfeng Manlift

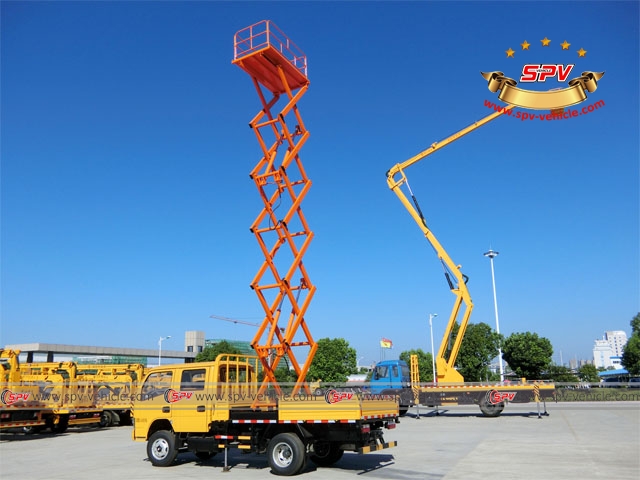

Photo 2: Front view of 6-8m Manlift working photo
Photo 3: Rear view of 6-8m Manlift working photo

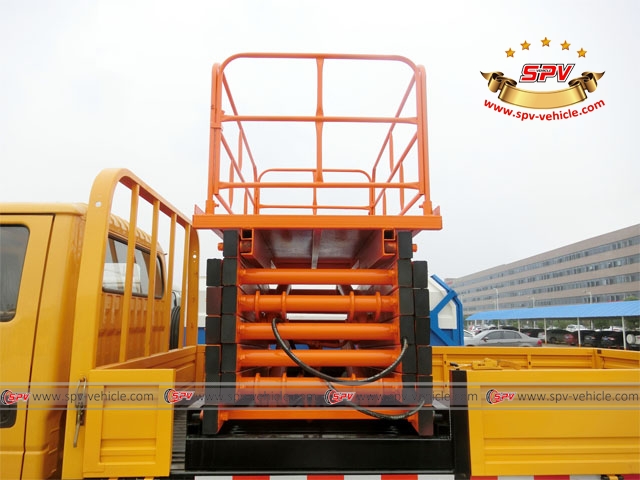

Photo 4: Detail view of 6-8m Manlift platform

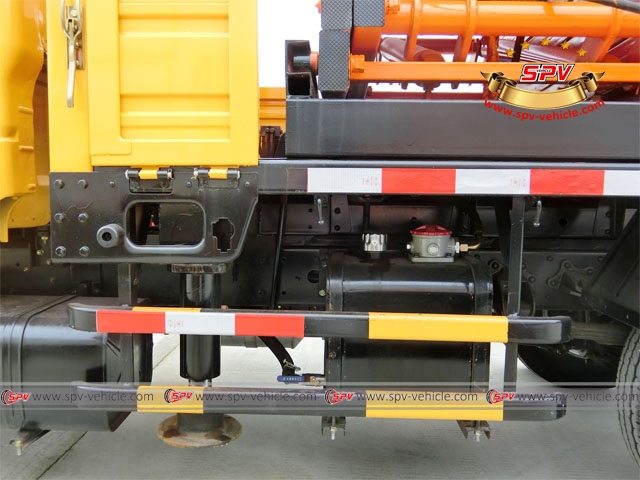

Photo 5: Hydraulic outriggers to ensure operation stabilized
